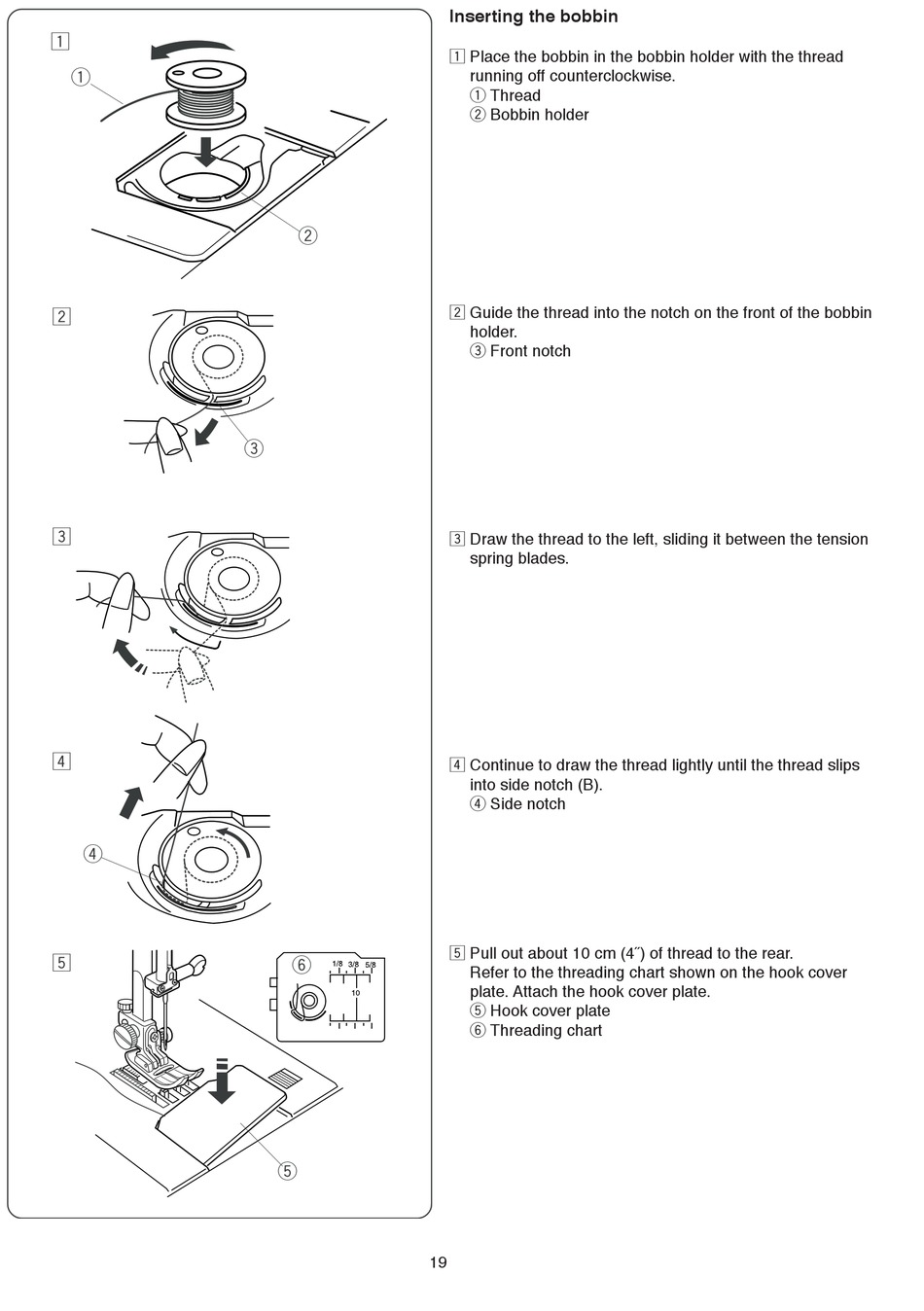

Inserting the bobbin

z Place the bobbin in the bobbin holder with the thread
running off counterclockwise.
q Thread
w Bobbin holder
x Guide the thread into the notch on the front of the bobbin
holder.
e Front notch
c Draw the thread to the left, sliding it between the tension
spring blades.
v Continue to draw the thread lightly until the thread slips
into side notch (B).
r Side notch
b Pull out about 10 cm (4˝) of thread to the rear.
Refer to the threading chart shown on the hook cover
plate. Attach the hook cover plate.
t Hook cover plate
y Threading chart
19
