q
3.5
0.0
1.0

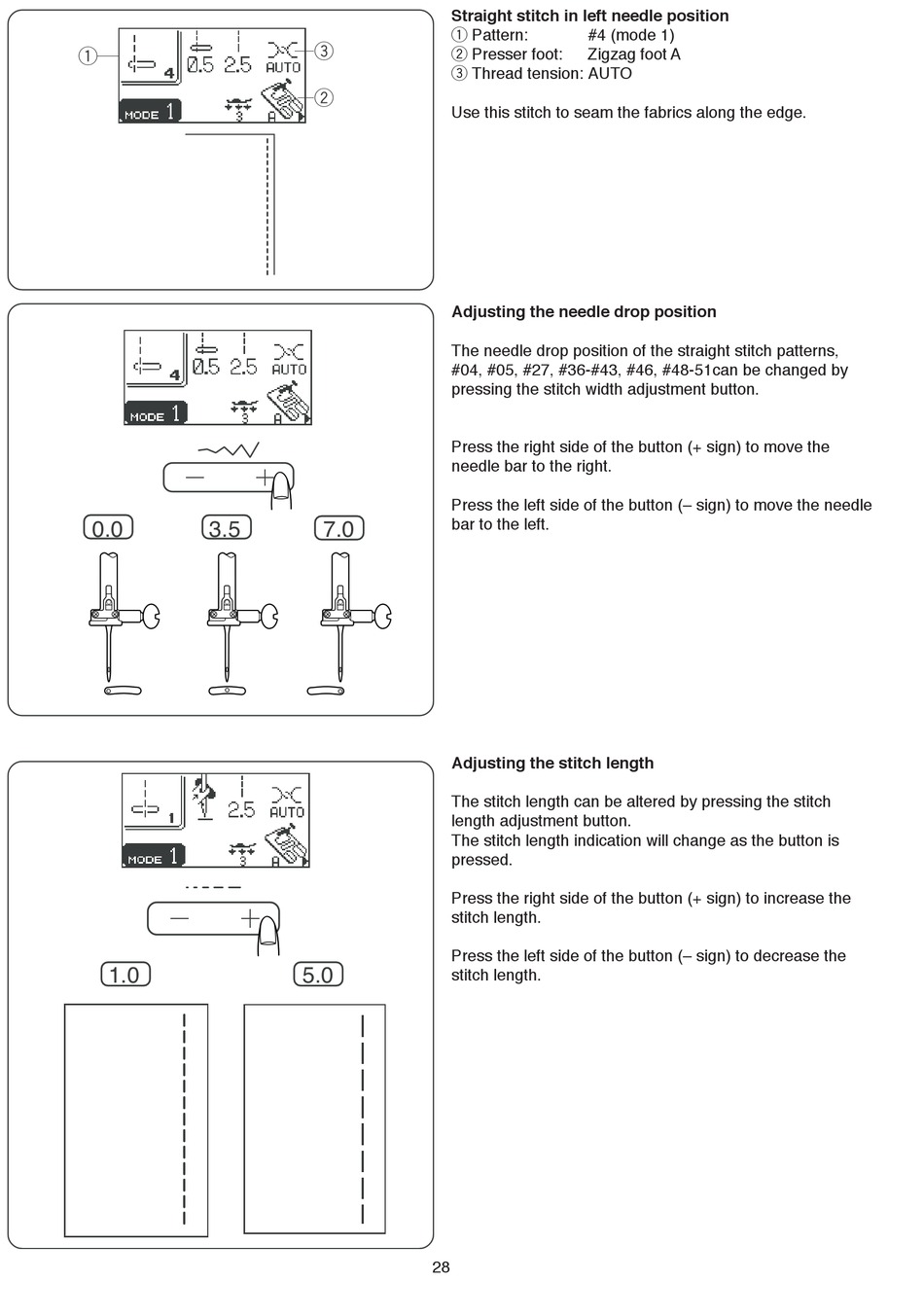

Straight stitch in left needle position
q Pattern:
e
w Presser foot:
e Thread tension: AUTO
w
Use this stitch to seam the fabrics along the edge.
Adjusting the needle drop position
The needle drop position of the straight stitch patterns,
#04, #05, #27, #36-#43, #46, #48-51can be changed by
pressing the stitch width adjustment button.
Press the right side of the button (+ sign) to move the
needle bar to the right.
Press the left side of the button (– sign) to move the needle
7.0
bar to the left.
Adjusting the stitch length
The stitch length can be altered by pressing the stitch
length adjustment button.
The stitch length indication will change as the button is
pressed.
Press the right side of the button (+ sign) to increase the
stitch length.
Press the left side of the button (– sign) to decrease the
5.0
stitch length.
28
#4 (mode 1)
Zigzag foot A
