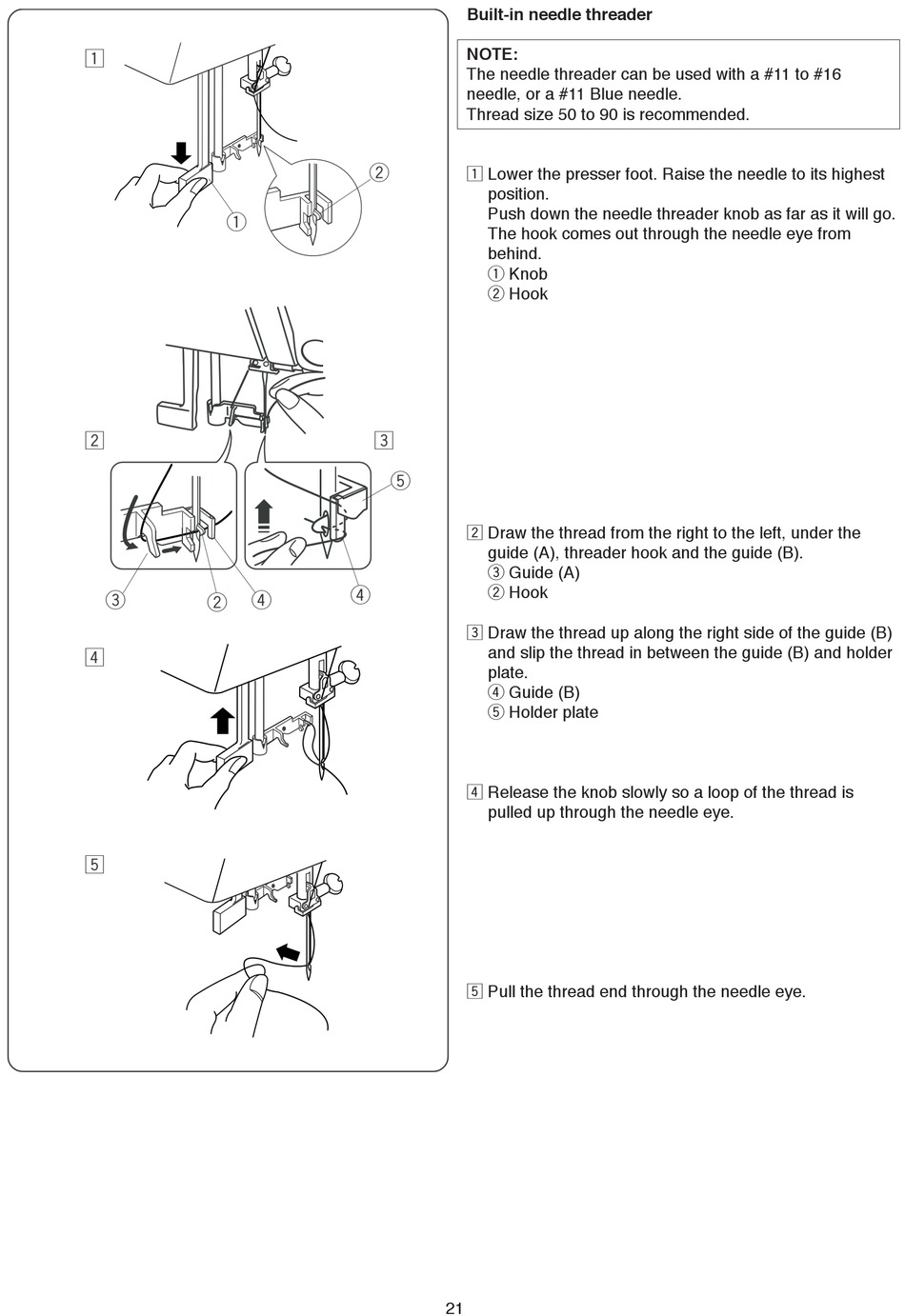

Built-in needle threader

NOTE:
The needle threader can be used with a #11 to #16
needle, or a #11 Blue needle.
Thread size 50 to 90 is recommended.
w
z Lower the presser foot. Raise the needle to its highest
position.
Push down the needle threader knob as far as it will go.
The hook comes out through the needle eye from
behind.
q Knob
w Hook
c
t
x Draw the thread from the right to the left, under the
guide (A), threader hook and the guide (B).
e Guide (A)
r
w Hook
c Draw the thread up along the right side of the guide (B)
and slip the thread in between the guide (B) and holder
plate.
r Guide (B)
t Holder plate
v Release the knob slowly so a loop of the thread is
pulled up through the needle eye.
b Pull the thread end through the needle eye.
