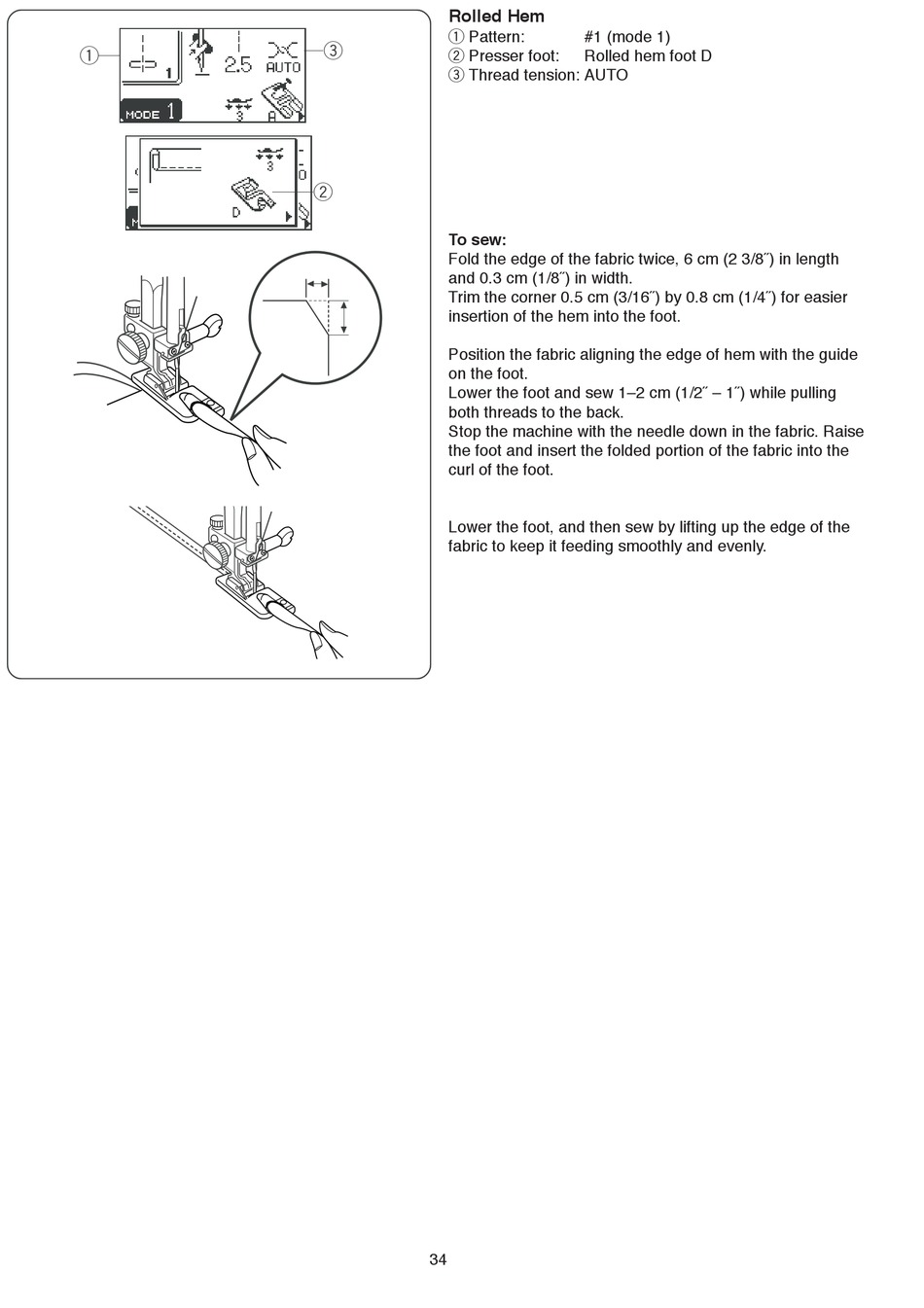

Rolled Hem

q Pattern:
e
w Presser foot:
e Thread tension: AUTO
w
To sew:
Fold the edge of the fabric twice, 6 cm (2 3/8˝) in length
and 0.3 cm (1/8˝) in width.
Trim the corner 0.5 cm (3/16˝) by 0.8 cm (1/4˝) for easier
insertion of the hem into the foot.
Position the fabric aligning the edge of hem with the guide
on the foot.
Lower the foot and sew 1–2 cm (1/2˝ – 1˝) while pulling
both threads to the back.
Stop the machine with the needle down in the fabric. Raise
the foot and insert the folded portion of the fabric into the
curl of the foot.
Lower the foot, and then sew by lifting up the edge of the
fabric to keep it feeding smoothly and evenly.
34
#1 (mode 1)
Rolled hem foot D
