Back Panel Ports

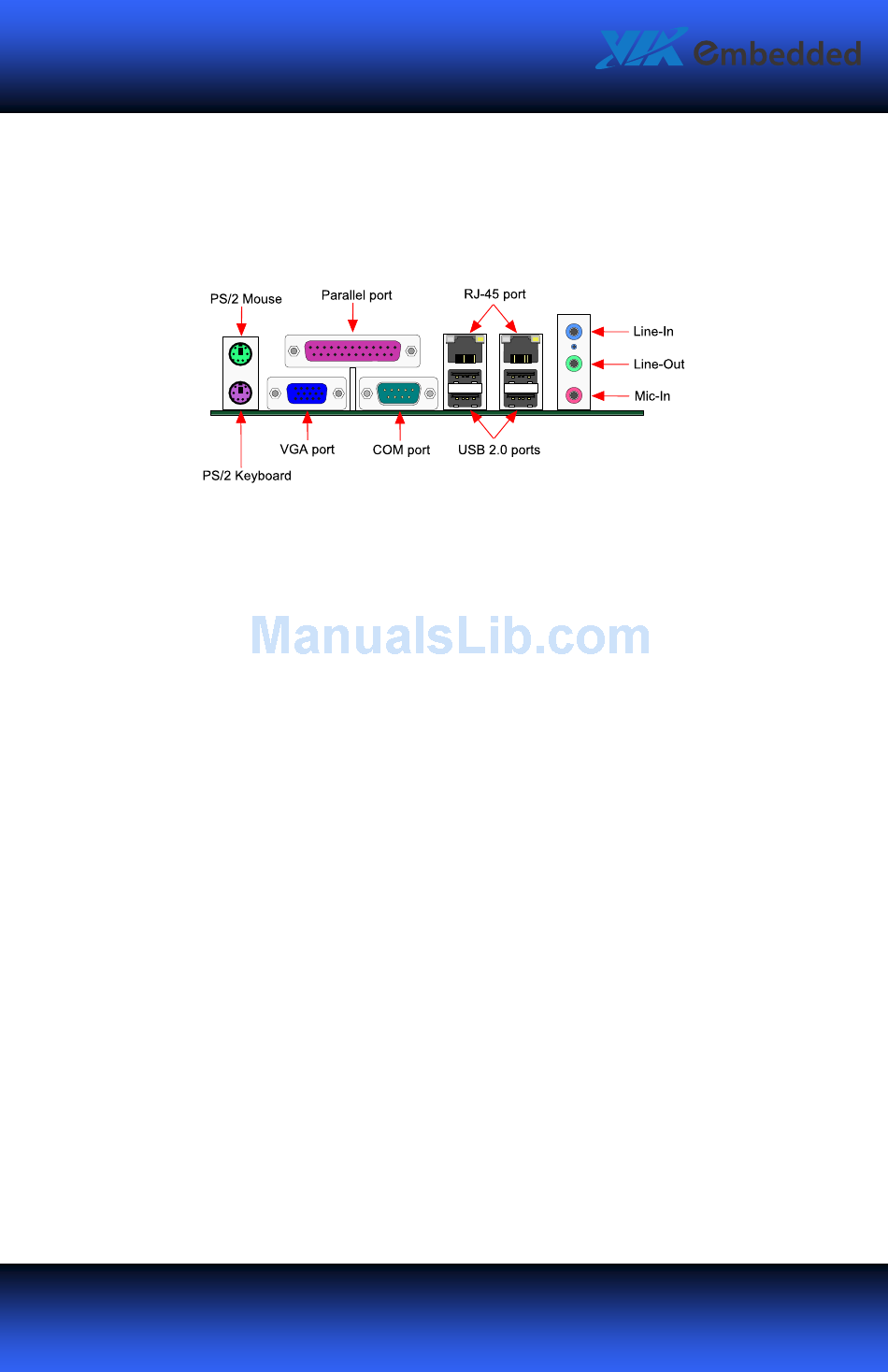

The back panel has the following ports:
PS/2 ports: mouse and keyboard
The green PS/2 port is used to connect a mouse. The purple PS/2 port is used to
connect a keyboard.
VGA port
The 15-pin VGA port is for connecting to analog displays.
Serial port: COM1
The 9-pin COM port is for pointing devices or other serial devices.
Parallel port
The parallel port is for connecting to LPT devices.
USB Ports
Four standard USB 2.0 ports are provided on the back panel.
LAN Ports
The mainboard provides two Fast Ethernet ports controlled with separate VIA
Fast Ethernet controllers. One of the controllers can be substituted for a Gigabit
LAN controller as a manufacturing option.
Audio jacks: Line-in, Line-out, and MIC-in
Three audio jacks are provided on the back panel.
