DDR2 SDRAM Module Installation Procedures

•

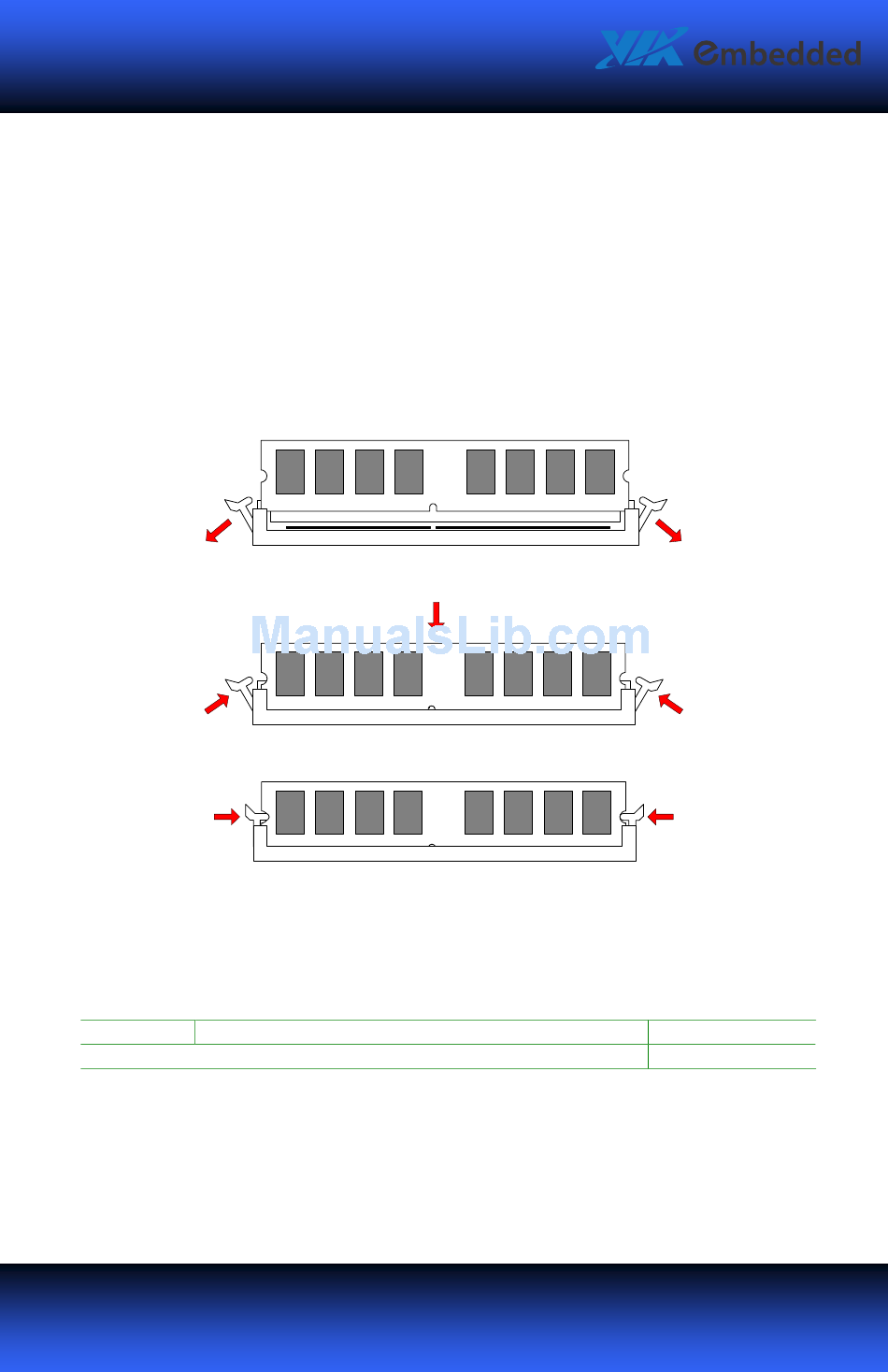

Locate the DIMM slot in the motherboard.
•
Unlock a DIMM slot by pressing the retaining clips outward.
•
Align a DIMM on the socket such that the notch on the DIMM matches
the break on the slot.
•
Firmly insert the DIMM into the slot until the retaining clips snap back in
place and the DIMM is properly seated.

Available DDR2 SDRAM Configurations

Refer to the table below for available DDR2 SDRAM configurations on the
mainboard.
Slot Module Size
DIMM1 64 MB, 128 MB, 256 MB, 512 MB, 1 GB
Maximum supported system memory
Total
64 MB - 1 GB
64 MB - 1 GB
