VB7007 User Manual

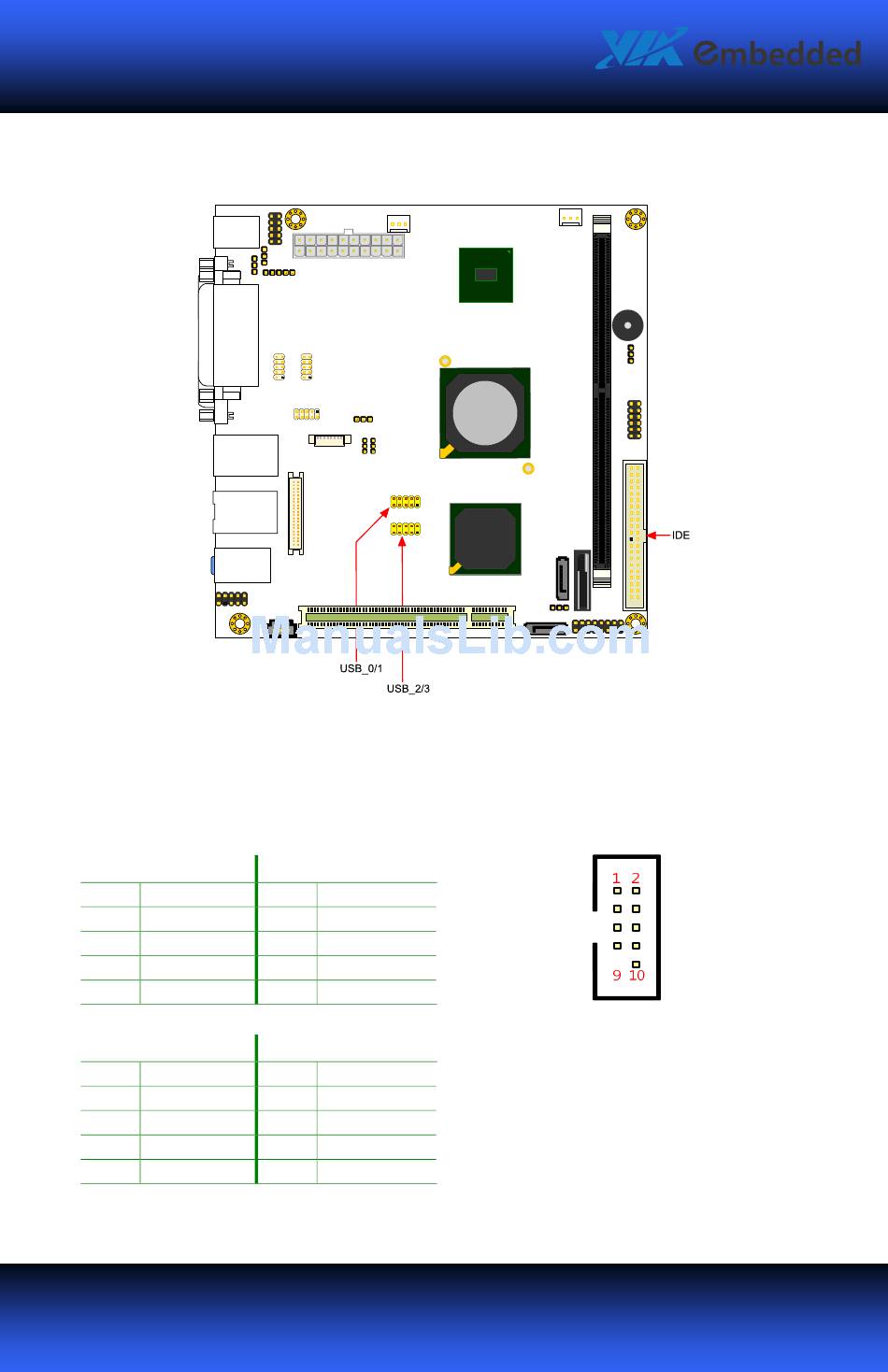

USB Pin Connector: USB_0/1 and USB_2/3
The mainboard provides two 10-pin USB pin connectors (allowing up to four
additional USB 2.0 ports).
USB_0/1
Pin
Signal
1
VUSB0
3
USBD_T0-
5
USBD_T0+
7
GND
9
KEY
USB_2/3
Pin
Signal
1
VUSB0
3
USBD_T2-
5
USBD_T2+
7
GND
9
KEY
Pin
Signal
2
VUSB0
4
USBD_T1-
6
USBD_T1+
8
GND
10
GND
Pin
Signal
2
VUSB0
4
USBD_T3-
6
USBD_T3+
8
GND
10
GND
16
