Case Connector: F_PANEL

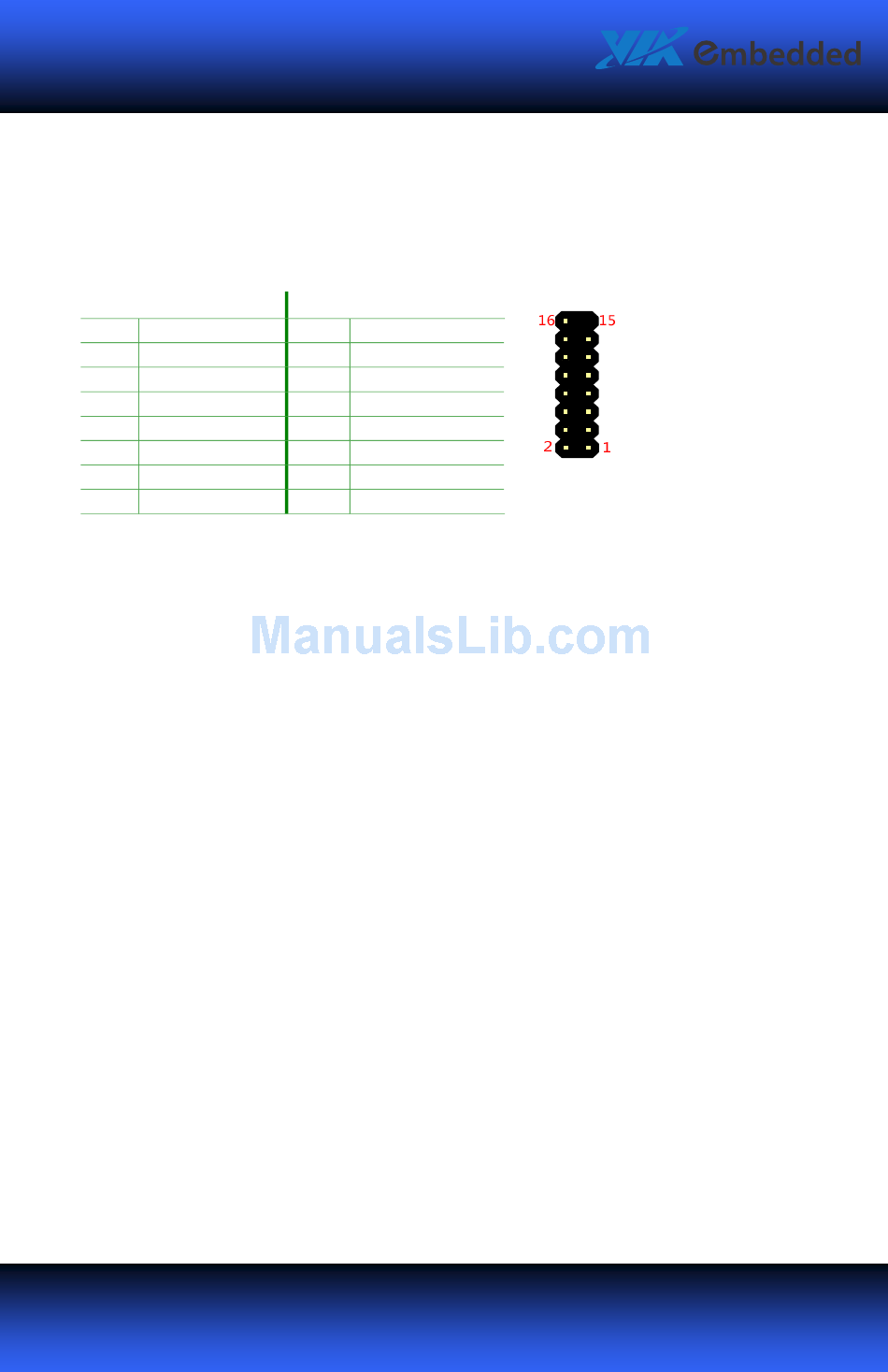

The F_PANEL pin header allows you to connect the power switch, reset switch,
power LED, sleep LED, HDD LED and the case speaker.
Pin Signal
1 +5VDUAL
3 +5VDUAL
5 -PLED_2
7 +5V
9 NC
11 NC
13 SPEAK
15 KEY
Power LED (PLED)
The LED will light when the system is on. If the system is in S1 (POS - Power On
Suspend) or S3 (STR - Suspend To RAM) state, the LED will blink.
HDD LED (HD_LED)
HDD LED shows the activity of a hard disk drive. Avoid turning the power off
when the HDD LED is still on. Connect the HDD LED from the system case to this
pin.
Power Switch (PW_BN)
Connect to a 2-pin power button switch. Pressing this button will turn the system
power on or off.
Speaker (SPEAK)
This pin header is for connecting to the system buzzer.
Reset Switch (RST_SW)
The reset switch is used to reboot the system rather than turning the power
ON/OFF. Avoid rebooting the system, if the HDD is still working. Connect the
reset switch from the system case to this pin.
Sleep LED (SLEEP_LED)
The SLEEP LED is lit when the system is in the S1 (POW-Power On Suspend)
Pin Signal
2 +5V
4 HD_LED
6 PW_BN
8 GND
10 RST_SW
12 GND
14 +5V
16 -SLEEP_LED
19
