VB7007 User Manual

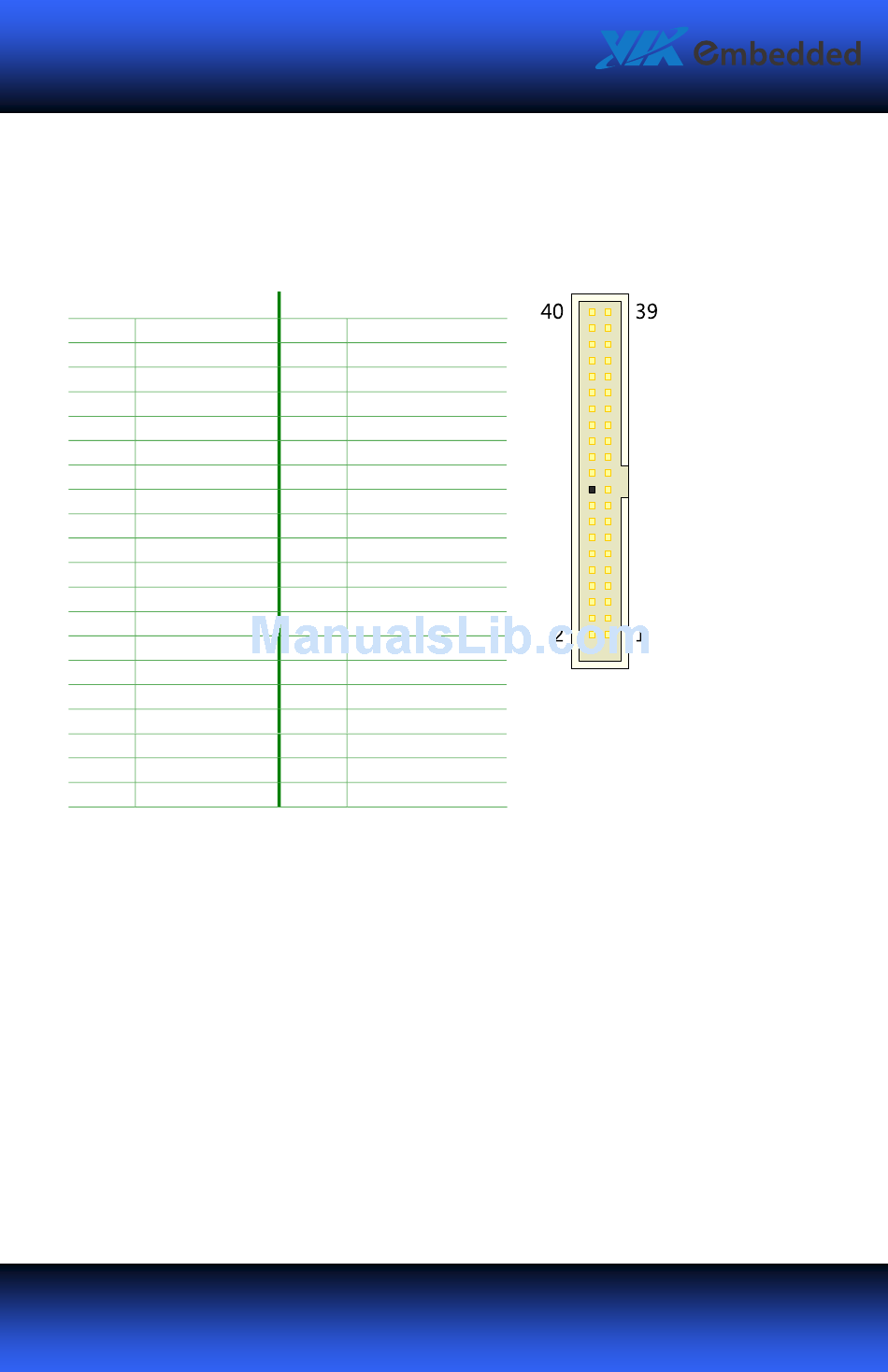

IDE Connector: IDE1

The mainboard has an Ultra DMA 133/100/66/33 controller. You can connect up
to two IDE devices in any combination.
Pin
Signal
1
-IDERST1
3
PD_7
5
PD_6
7
PD_5
9
PD_4
11
PD_3
13
PD_2
15
PD_1
17
PD_0
19
GND
21
PDREQ
23
-PIOW
25
-PIOR
27
PDRDY
29
-PDACK
31
IRQ14_R
33
PD_A1
35
PD_A0
37
-PCS_1
39
-HD_LED1
If two drives are connected to a single cable, the jumper on the second drive
must be set to slave mode. Refer to the drive documentation supplied by the
vendor for the jumper settings.
Pin
Signal
2
GND
4
PD_8
6
PD_9
8
PD_10
10
PD_11
12
PD_12
14
PD_13
16
PD_14
18
PD_15
20
KEY
22
GND
24
GND
26
GND
28
GND
30
GND
32
NC
34
P_ATA66
36
PD_A2
38
-PCS_3
40
GND
15
