Remote; Figure 16 - Ts-203 Fixed Remote - ComNav Commander P2 Installation & Operation Manual

ComNav Commander P2 Installation & Operation
TS-203 Remote
PN 20310025 – 12m (40') cable
PN 20310030 – 18m (60') cable
PM 30310011 – Ball Knob Kit
The TS-203 Fixed Remote is a heavy duty Full-Follow-Up (FFU) Lever control which allows
the operator to control the tiller steering and autopilot functions from any work station, flying
bridge or remote location on the vessel.
The optional Ball Knob Kit is a replacement for the TS-203's standard tapered-handle Tiller
lever. It is intended to be used where a "ball handle" is preferable, or in installations where
there is limited space in which to mount the TS-203. The kit's ball & shaft are the same as
used on ComNav Jog Levers. The total ball-shaft length is 12 cm (5"), as compared to the
TS-203's standard handle-shaft length of 18 cm (7").

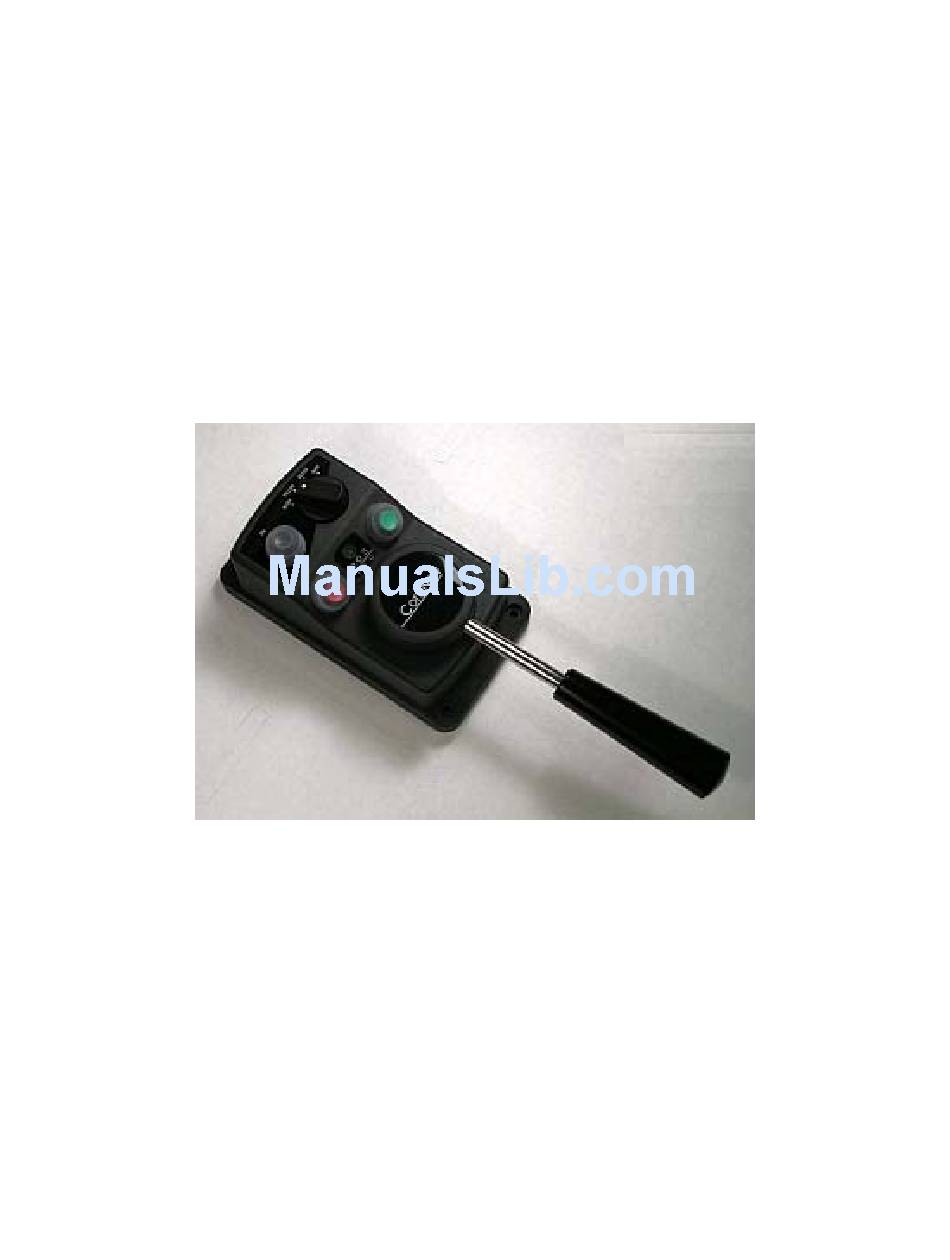

Figure 16 – TS-203 Fixed Remote
Document PN 29010074 V3.1
- 37 -
System Overview
