ComNav Commander P2 Installation & Operation
Step 3:
The clamps and band should be positioned as far as possible towards the end of the Linear
Rudder Follower which has the cable that goes to the autopilot (see Figure 25). Loosely
place the stainless steel band clamp around the Linear Rudder Follower and the outboard's
steering cylinder.
Place the larger plastic mount bracket on the Rudder Follower, curved face on the Follower.
Place the smaller plastic mount bracket on the steering cylinder, curved face on the cylinder
body. Loosely tighten the band clamp around the Rudder Follower, the cylinder and the
brackets (see Figure 26 and Figure 27).
Document PN 29010074 V3.1
STAINLESS STEEL
BAND CLAMP

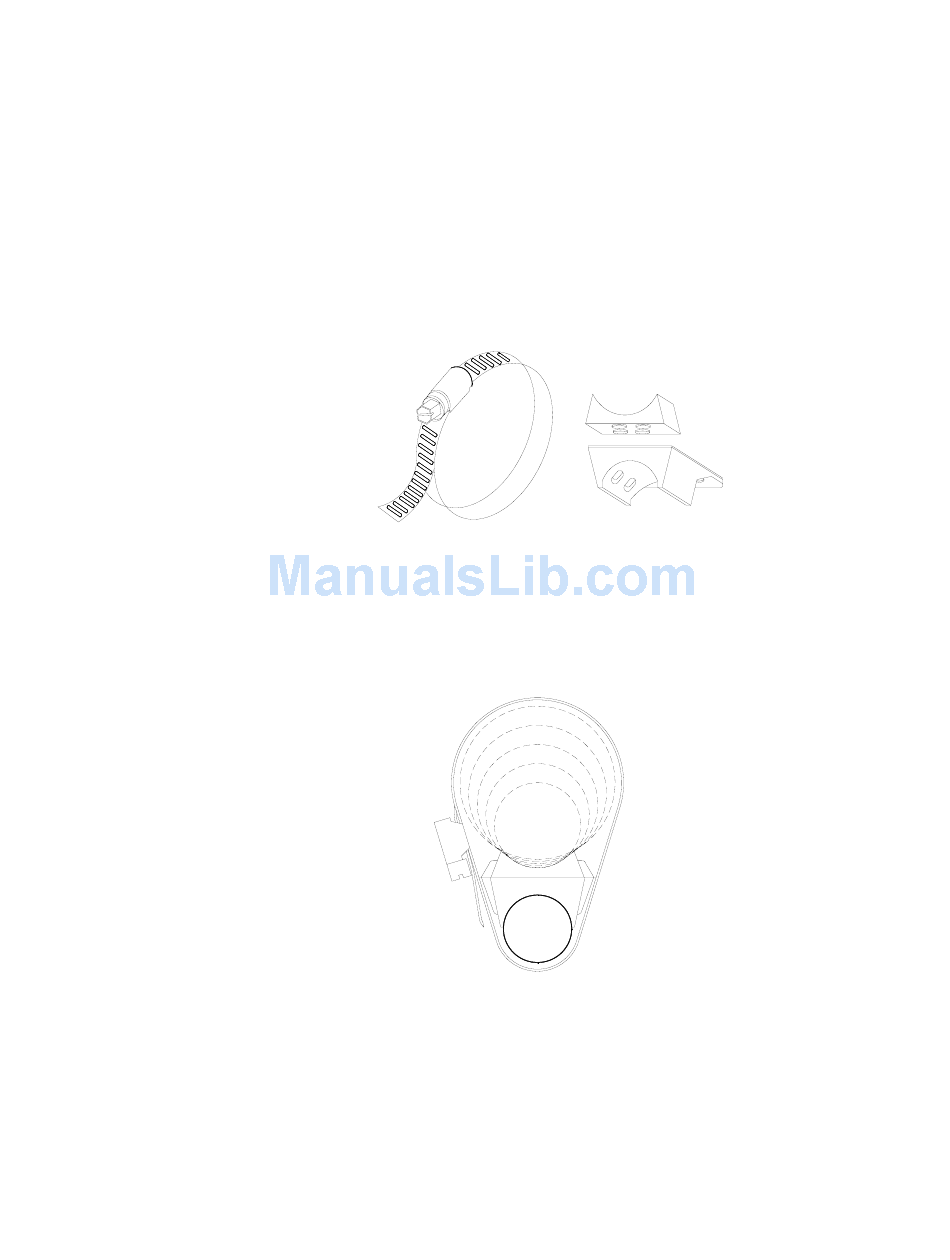

Figure 26 – Band Clamp and Plastic Brackets
STAINLESS STEEL
BAND CLAMP
Figure 27 – Installed Arrangement of Brackets
- 53 -
TWO PIECE PLASTIC
MOUNT BRACKETS
2.25
2.00
1.75
STEERING CYLINDER
1.50
1.25 - 2.25 INCH. DIA.
1.25
TWO PIECE
BRACKETS
OUTBOARD
FEEDBACK
Installation
