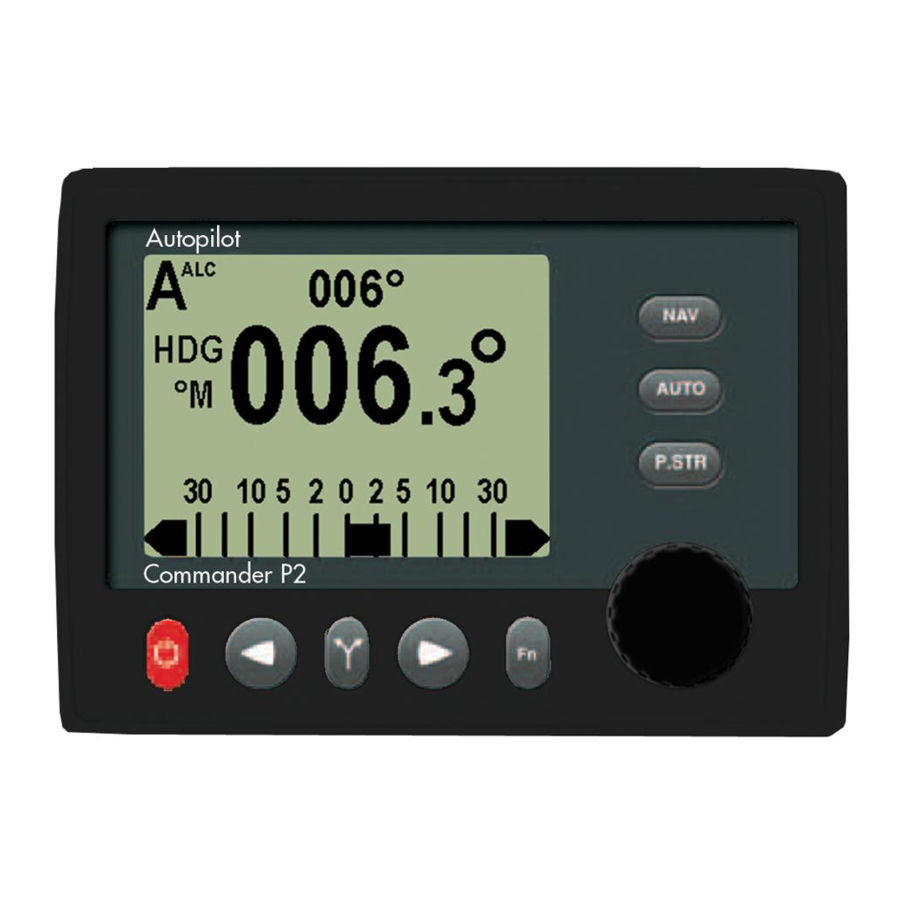

ComNav Commander P2 Quick Reference Manual

®
ComNav Commander P2 Autopilot Operation — Quick Reference Guide
POWER ON/OFF
To Power ON, press
To Power OFF, press
Any of these four primary modes may be entered at any time.
STANDBY
— vessel is steered manually
S
( is shown in upper left of display)
Press for 2 seconds to switch to STANDBY mode.
POWER STEER
— operator steers vessel with knob
P
( is shown in upper left of display)
Press for 2 seconds to switch to POWER STEER mode.
P.STR
Use or or
AUTO
— autopilot steers to heading set by operator
A
( is shown in upper left of display)
Press for 2 seconds to switch to AUTO mode.
AUTO
Use to change course.
Press for 3 seconds for WORK mode [non-sailboats]
Fn
or for AUTO WIND mode [sailboats only].
Use or to dodge obstacles.
NAV
— autopilot steers to active GPS waypoint
N
( is shown in upper left of display)
Press for 2 seconds to switch to NAV mode.
NAV
Press again to toggle to alternative NAV display.
NAV
(press it again to switch back to regular NAV display).
Press for 3 seconds for WORK mode [non-sailboats]
Fn
or for NAV WIND mode [sailboats only].
Use or to dodge obstacles.
(WORK and WIND modes are described on other side)
for 2 seconds.
until RELEASE appears in display.
MODES
to move rudder.
MODE MENUS
Refer to Operation Manual when setting parameters
To enter or exit a mode's menu, double-press the
corresponding mode key (as shown below).
Use or to select a parameter.
Use to change the value of a parameter.
STANDBY
menu
double-press
Station Lock [Lock or Unlock]
Default Turn [choose from any available]
Compass Source [choose from any available]
Compass Calibration [see Manual]
Backlight Level [0 = Off, 8 = maximum]
Contrast [monochrome only]
Display [monochrome: Norm, Rev]
[colour: A, B, C]
Watch Alarm [in minutes]
Fishzag Time [in seconds]
Battery [read only]
POWER STEER
menu
Standby/Power Steer Rudder & Remote Tiller Limits
AUTO/NAV Rudder Limits
Head's Rudder Angle Indicator Offset
AUTO menu
double-press
(parameters marked with
Rudder Gain [1 = minimum, 10 = maximum]
Counter Rudder [0 = minimum, 10 = maximum]
Seastate (Yaw) [Automatic, or 1° – 10°]
Turn Rate [degrees per second]
(Speed) Parameter Set [Lo, Hi, Auto]
Speed Trip Point [
in Knots or Km/H,
Speed Source [NAV1, NAV2, N2000, NX2]
Automatic Leeway Correction [On, Off]
Thruster Assist [Off, or trip speed: 0.5 – 7
Thruster Gain [Low, Medium, High]
(Thruster operation requires an enabled CT7 Interface)
NAV menu
double-press
NAV Source [NAV1, NAV2, N2000, NX2]
XTE (cross-track error) limit [nautical miles]
Waypoint Arrival Sequencing [Manual, Auto, Silent]
Correction [CTS, XTE, or Both]
XTE Sense [Norm, Rev]
Maximum Correction [30° – 90°]
ALARM CLEAR
Press to clear an alarm.
Fn
double-press
P.STR
AUTO
have LO & HI speed values)
depends on sensor
(Kn or Km/H)
NAV
]
]
