ComNav Commander P2 Installation & Operation

Control Head

PN 20110002 (monochrome)
PN 20110003 (colour)
The Commander P2 Control Head connects directly to the Signal Processor Unit (SPU), via a
nine-conductor cable that plugs into the rear of the Head. This cable wires onto a connector
supplied with the SPU; that connector in turn can quickly and easily be plugged into the
C
ONTROL
Two versions of the Commander P2 Control Head are available. Part Number 20110003
incorporates a state-of-the-art, sunlight-viewable, high resolution QVGA TFT colour LCD
display. PN 20110002 provides the exact same functionality, but has a silver-backed
monochrome LCD display.

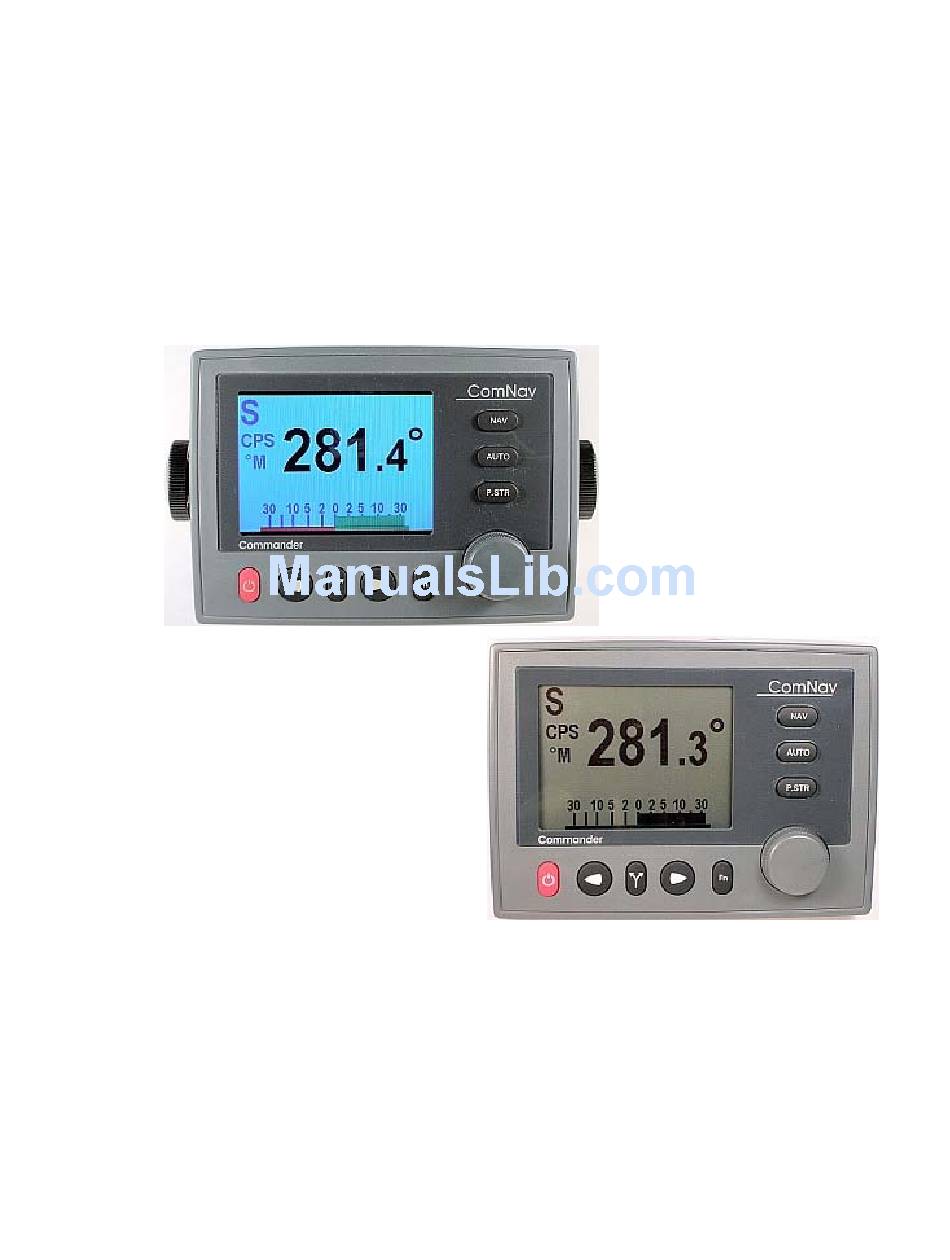

Figure 4 – Control Head
The Control Head, when shipped as part of a complete Commander P2 system, is a "core"
module, with accessories for three mounting options: a snap-on sleeve for surface mounting,
a separate snap-on sleeve for flush mounting, and a two-piece bracket for bracket mounting.
All required hardware is included, except for two fasteners needed to fasten the bracket to a
mounting surface.
Document PN 29010074 V3.1
H receptacle on the SPU.
EAD
