ComNav Commander P2 Installation & Operation

Dockside Setup Menu

Accessing the Dockside Setup menu is always necessary during the initial setup of the
autopilot. Typically, it is used only infrequently after initial setup.
A special button sequence must be used to access the Dockside Setup menu:

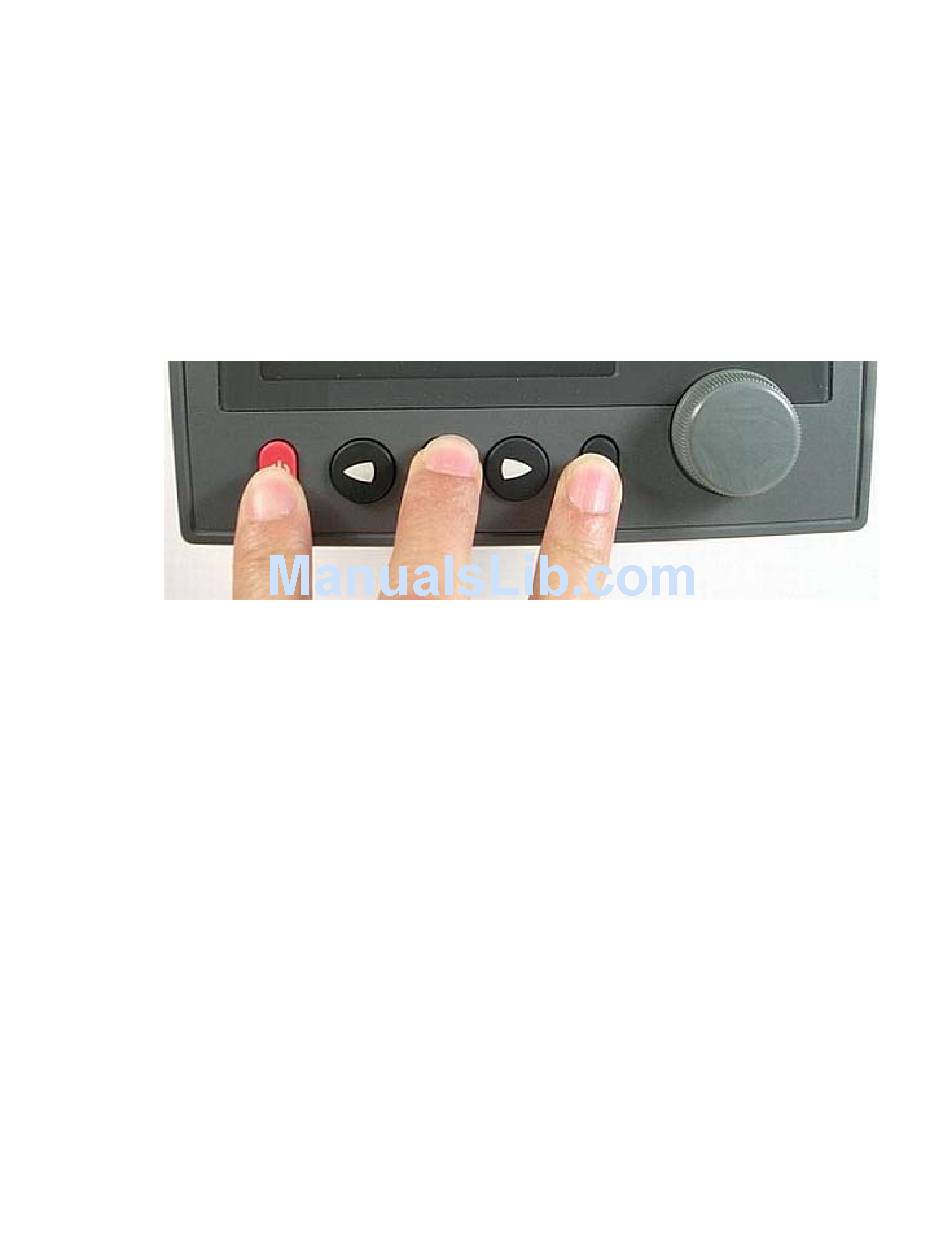

Figure 63 – Entering Dockside Setup
The Dockside Setup menu is unlike other menus:
•
there is no time-out feature associated with it.
•
when you exit it, the P2 system performs a full Power-On sequence, which ends up in
STANDBY mode.
Many of the items listed in the Dockside Setup menu are not simple parameters, but instead
are automated scripts (sequences of pre-defined steps) that perform a variety of functions
and system tests. The letters
are scripts. To activate the associated script, press the
Document PN 29010074 V3.1
1) Start with the Commander P2 system powered off.
2) Press and hold the
STANDBY/ON/OFF button. Power will turn on.
3) Hold all three buttons activated until the software version numbers are displayed,
then release the buttons.
4) After a second or two, the display will show the Dockside Setup menu. Note that
a large D (which is the indicator that the system is in Dockside Setup) appears in
the upper left portion of the display.
Fn
- 86 -
Fn
button and the TURN button. Then press & hold the
on the right hand side of the display identify the items that
Getting Started
Fn
button.
