3) Press the PORT ARROW button, to skip the compass compensation & calibration
process (this can not be done while still tied up at the dock).
4) If you have installed more than one type of Analog Compass, and/or a 45° Compass
Transducer, repeat steps 1) through 3) for all such compasses.
5) Exit the Dockside Setup menu.
Document PN 29010074 V3.1

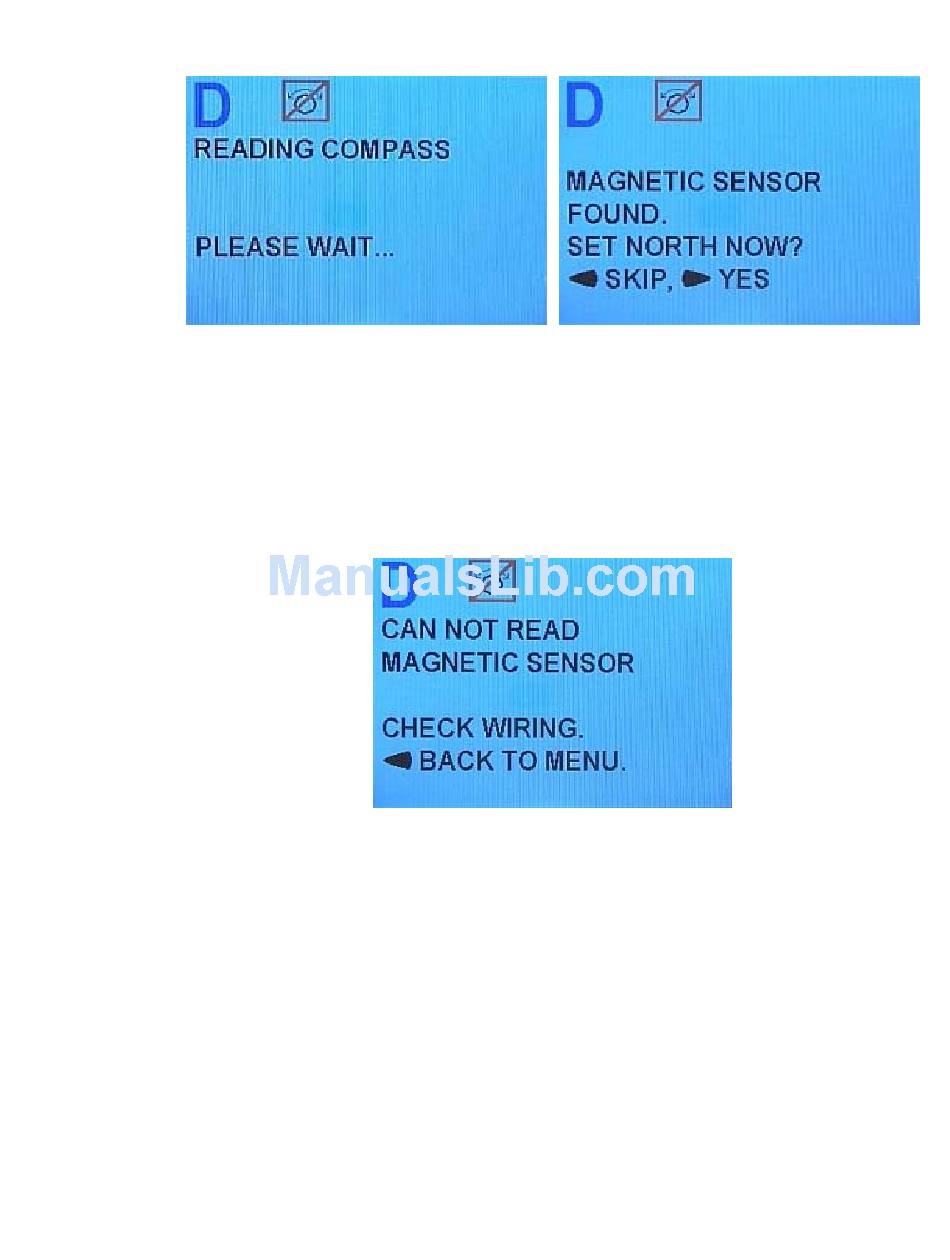

Figure 77 – Compass Verification (Mag Sensor shown)
If the Commander P2 system could not find a compass that matches with the type
you have selected in step 1), it will give the following error message at this point (the
type of compass shown will depend on what you entered for "An. Comp. Type"):
Check your installation to be sure that the compass is wired correctly. Fix any
problems, and re-start at step 1).
Figure 78 – Compass Verification Failed
If the Commander P2 system still cannot find any installed analog compasses,
contact your ComNav Dealer for help.
