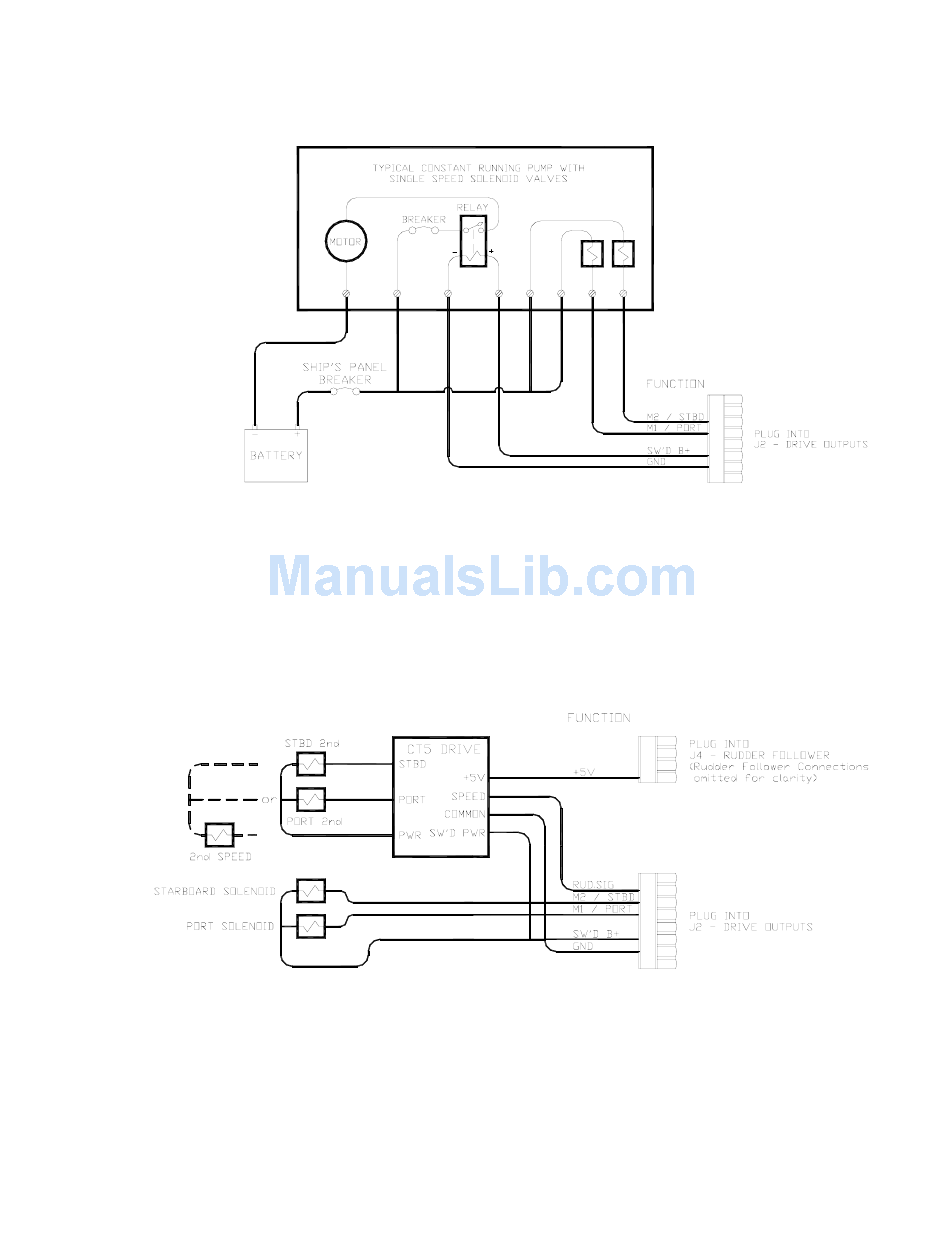

Figure 48 – Wiring Connections for Constant Running Electric Pump.

Two-Speed Solenoid Valves

ComNav's CT5 Drive Box (PN 20350004) should be used to interface between the
Commander P2 SPU and two-speed solenoid systems. Connect the CT5 to the SPU as per
the instructions shipped with the CT5, and the following diagram:
Figure 49 – Wiring Connections for Two-Speed Solenoid Valves
Document PN 29010074 V3.1
The above diagram assumes that an engine driven pump is used for the
hydraulic system. In the case of an electrically powered constant
running pump, use the following connection:
