Section 2
Electronic Bin Thermostat Instructions
IB600C/IB800C/IB1000C Only
POSITIONING
1. Remove water trough.

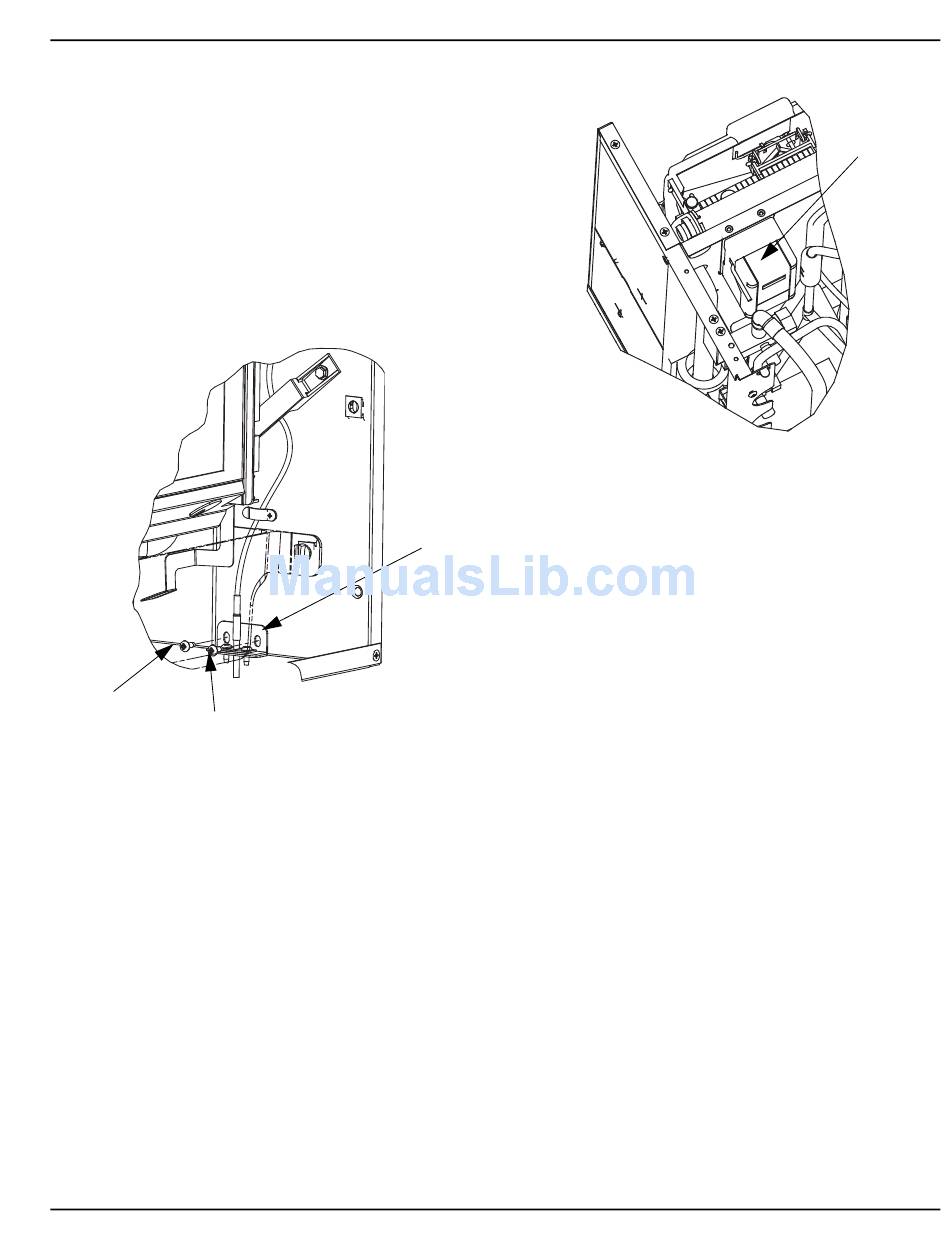

2. Refer to illustration:
A. Loosen rear screw.
B. Remove front screw & rotate probe/bracket.
C. Re-install front screw & tighten.
D. Tighten rear screw.
A. LOOSEN
REAR SCREW
B. REMOVE FRONT
SCREW & ROTATE
PROBE/BRACKET.
REINSTALL SCREW
Bin Thermostat Location
3. Re-install water trough.
4. Remove slack from sensor probe wire and verify
wire does not contact or obstruct the water curtain.
Part Number 000002477 3/08
5. The control is preset and does not require
programming
FINAL
POSITION
Installation Instructions
Control Location
CONTROL
LOCATION
2-31
