Section 2

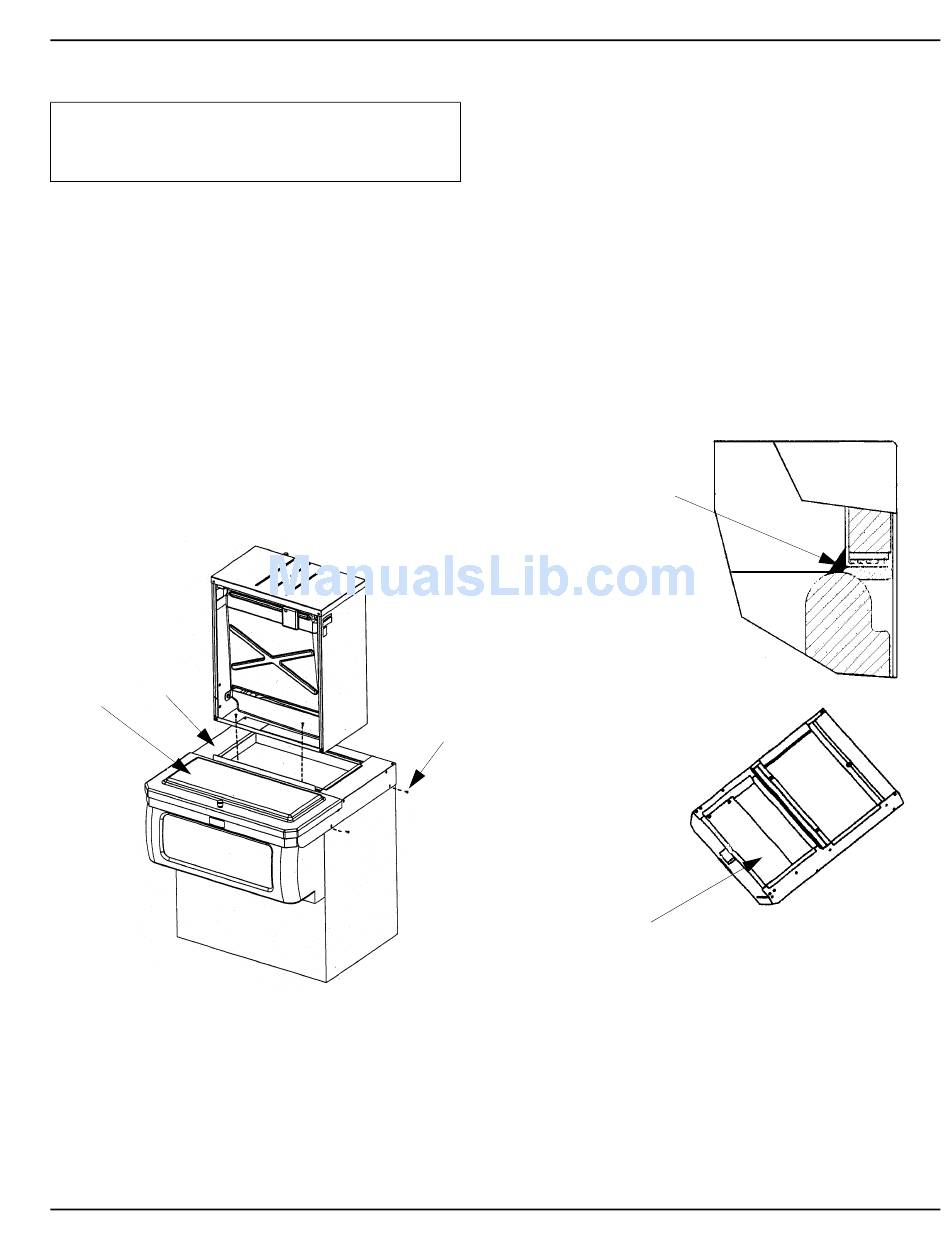

TYPICAL ICE BEVERAGE ON A DISPENSER

DO NOT REMOVE the label on bin adapters. The
retainer clips and brackets must be used.
1. Install bin level thermostat bracket.
2. Set adapter on dispenser. Position the adapter so
that the front flange of the adapter will be up against
the front lip of the dispenser. Adapter may have to
be moved towards the back of the dispenser.
3. Using the slotted holes in the adapter as a template,
drill four (4) 9/64" diameter holes at the bottom of the
slots. Note: Do not drill deeper than 1/4" past the
sheet metal. Use a drill stop!
4. Fasten the adaptor to dispenser using the four (4) #8
screws supplied with the adaptor kit.
5. Set the ice machine on top of the adapter. Align
holes in ice machine front angle with threaded
bosses on the adapter.
ADAPTER
BIN
COVER
Part Number 000002477 3/08
Important
SCREWS
6. Secure the ice machine to the adaptor with two (2)
#8-32 screws supplied with the kit.
7. Set the bin cover on the adapter, move backwards
until the cover hits the stop, and lower the plastic
cover insuring that the latch locks.
8. To remove the bin cover, twist the knob, lift up, and
pull forward.
PLACE A LARGE FILLET OF
FOOD GRADE RTV INSIDE
EDGE ALONG BOTH SIDES
WHERE ADAPTER
TOUCHES BIN
DEFLECTOR MUST
STAY IN PLACE
SV3122
Installation Instructions
SV3121
SV3120
2-11
