Table 4-1: Front Panel controls and indicators
Number Control/Indicator
15 PREV indicator
16
FINE button
17 FINE indicator
18 ALARM indicator
19
AC Power switch

4.3 REAR PANEL

See Fig.4-2 to review the connections and controls located on the power supply rear panel.
Refer to Table 4-2 for explanations about the rear panel connections and controls.
SW1
ON
J2
OFF
6
7
Table 4-2: Rear panel connections and controls
Number
Item
AC input
1
connector
2 DC output
Remote-In
3
connector
Description
Green LED, lights when PREV button is pressed.
Voltage and Current Fine/Coarse adjustment control.
Operates as a toggle switch. In Fine mode, the
VOLTAGE and CURRENT encoders operate with high
resolution and in Coarse mode with lower resolution
(approx. 6 turns).
Auxiliary function
Mode setting.
Green LED, lights when the unit is in Fine mode.
Red LED, blinks in case of fault detection. OVP, OTP
Foldback, Enable and AC fail detection will cause the
ALARM LED to blink.
AC On/Off control.
9 8
J3
J1
IN
OUT
80~600V
Models
4 3
5
6~60V
Models

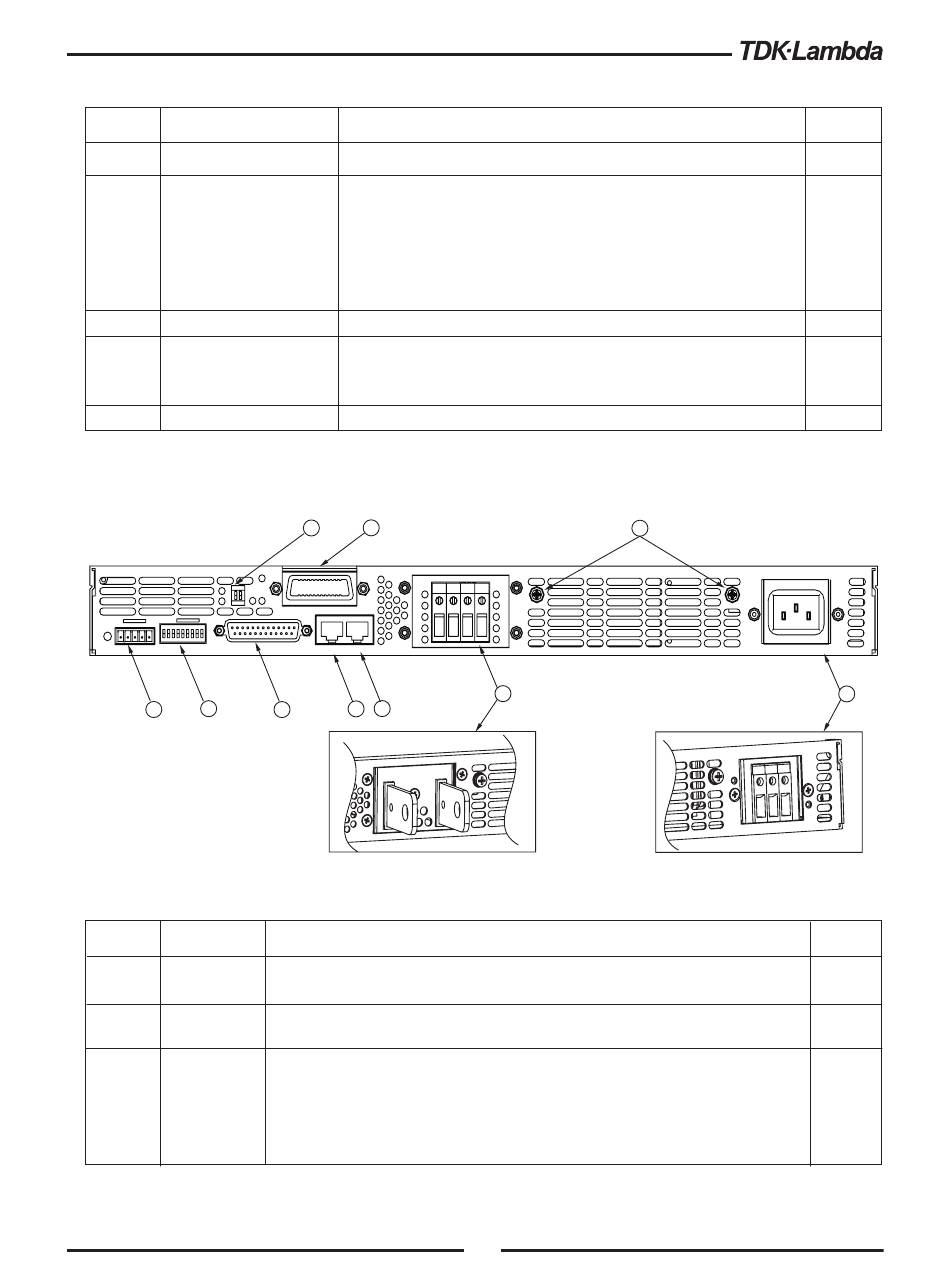

Fig.4-2: Rear panel connections and controls
Description
Wire clamp connector for 1500W units.
IEC connector for 750W units.
Bus-bars for 6V to 60V models.
Wire clamp connector for 80V to 600V models.
RJ-45 type connector, use for connecting power supplies to
RS232 or RS485 port of computer for remote control purposes.
When using several power supplies in a power system, the first
unit Remote-In is connected to the computer and the remaining
units are chained, Remote-In to Remote-Out.
: Advanced Parallel Operation
10
2
29
29
Section
5.15.2
AC INPUT
750W
1
1500W
Section
3.7.1
3.7.2
3.9.6
7.3
7.4
