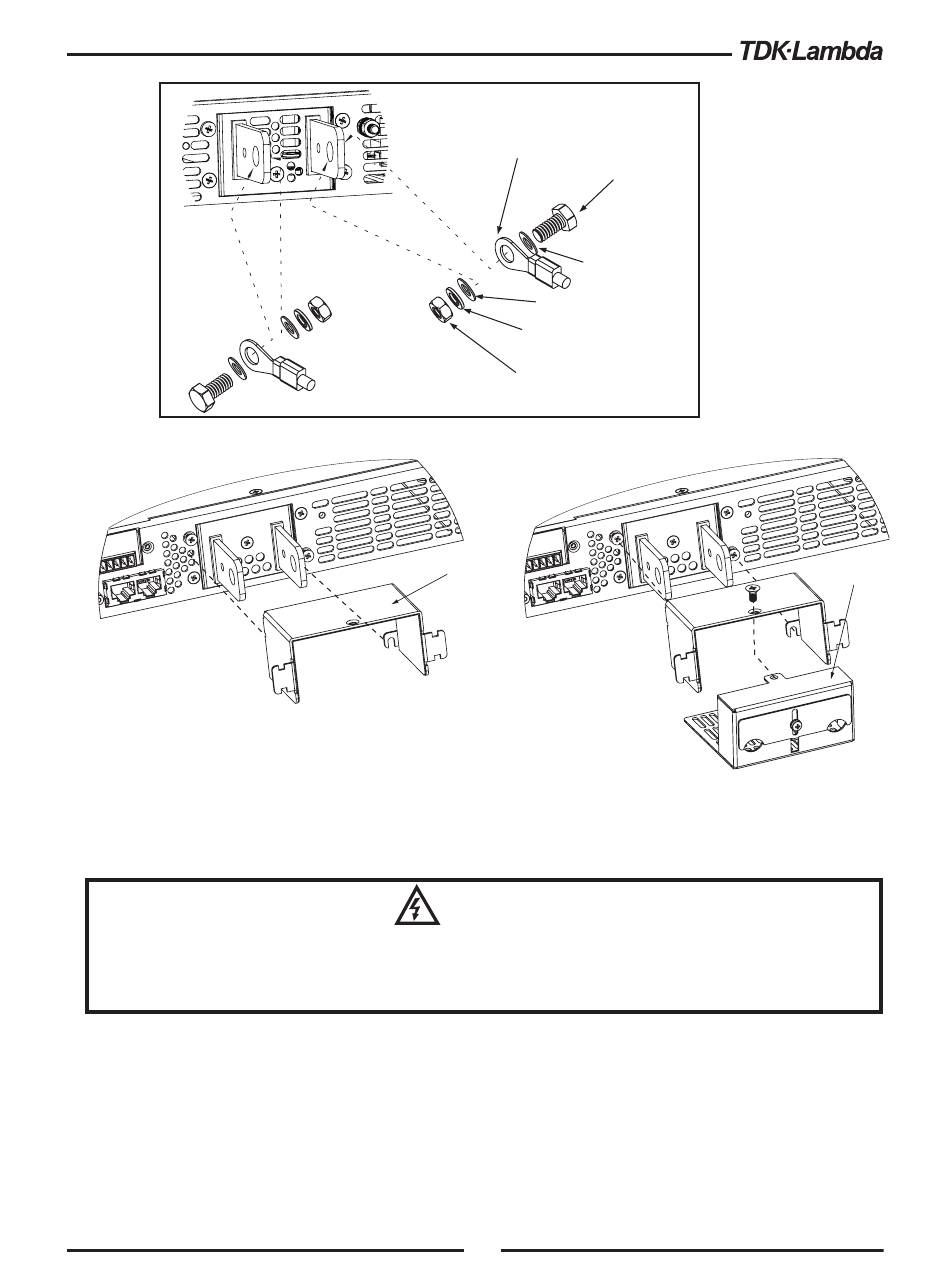

Fig. 3-5: Load wires connection , 6V to 60V models.
A
Fix the bus-bars enclosure
top cover using the screws
marked "A". Tighten the
screws after fixing.
Fig. 3-6 Bus-bars
cover 6V to 50V
80V to 600V Models
Hazardous voltages exist at the outputs and the load connections. To protect personnel against
accidental contact with hazardous voltages, ensure that the load and its connections have no
accessible live parts. Ensure that the load wiring insulation rating is greater than or equal to the
maximum output voltage of the power supply.
Output Load Wires No Conductor Pretreatment: Phoenix Contact clamping parts are designed
so that all kinds of copper conductors can be clamped without pretreatment.
It is forbidden to solder the conductors. The solder tin yields and fractures under high pressure. The
result is increased contact resistance and an excessive temperature rise. In addition, corrosion
caused by pickling or fluxes has been observed on soldered conductor ends. Notch fractures at the
transition point from the rigid to the flexible conductor area are also possible.
Wire terminal lug (2 places)
Screws tightening torque: 104-118 Lb-inch.
A
Enclosure top cover
opening and connect load wires.
cover by using screw C. Tighten
WARNING
CAUTION
21
21
M8x15 screw (2 places)
Flat washer
(2 places)
Flat washer (2 places)
Spring washer (2 places)
Hex Nut (2 places)
A
Fix the bus-bars enclosure top
cover using the screws marked
"A". Loosen screw "B" to release
the shutter. Insert load wires
through enclosure bottom cover
Assemble the enclosure bottom
screws "B" after sliding down the
shutter.
Fig. 3-7 Bus-bars
enclosure 60V
(Refer to Fig.3-8, 3-9 for installation instructions.)
A
Enclosure
bottom cover
C
B
