JTS US-1000D-TH Instruction Manual

Uhf pll wireless systems
Hide thumbs

Advertisement

UHF

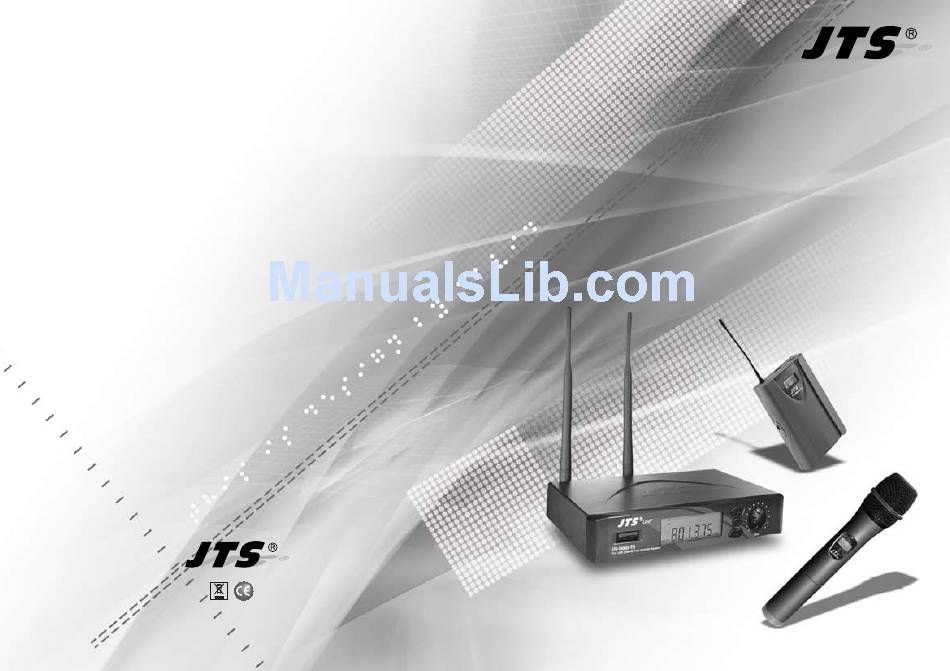

PLL WIRELESS SYSTEMS INSTRUCTION MANUAL
59506-127

Advertisement

Table of Contents
loading

  Related Manuals for JTS US-1000D-TH

  Summary of Contents for JTS US-1000D-TH

  • Page 1 PLL WIRELESS SYSTEMS INSTRUCTION MANUAL 59506-127...
  • Page 2: Table Of Contents

    * Anti-interference design is available to work with every computer device. Thank you for choosing the JTS wireless system. In order to obtain the best efficiency from the system, you are recommended to take few minutes to read this instruction manual carefully.
  • Page 3: Specification

    3. Specification 3-1 Receiver 3-3 Condenser Microphone US-1000D-TH Model No. Model No. CM-201 CM-501 Frequency Preparation PLL Synthesized Control Type Frequency Stability .005% Frequency Range 60Hz~15.000Hz 100Hz~15.000Hz S/N Ratio 100dB Polar Pattern Omni directional Display Frequency , Antenna A/B, Mute Status,...
  • Page 4: Parts Identification & Accessories

    4-3 PT-990B-TH(mi) Body-pack Transmitter 4. Parts Identification & Accessories Mic. input 4-1 True-Diversity Receiver Power On/off switch 1.US-1000D-TH Antenna Power On/Off switch LCD display Up button Set button Down button Up button Set button Down button LCD Display Battery tray button...
  • Page 5: Optional Accessories

    (3) CM-204 Headset Microphone Microphone 5. Preparing procedures & basic operation Gooseneck 5-1 US-1000D-TH Receiver Neck-Frame Mini XLR (1.) Power output connector Windscreen Plug in one end of AC/DC adaptor cable to DC input socket in the rear panel of receiver, and plug another end into an AC outlet...
  • Page 6 (3.) LCD panel 1. AF signal 3. Setting Lock-on 2. RF signal Press "SET" button three sec. re-press "SET" button three times, after these 3. Display for GROUP mode procedure Press "UP" button for lock-on mode and "DN" button for lock-off 4.
  • Page 7 3. Setting Frequency 3. LCD operation 3.1 Frequency displayed: (1.) Up button Press "SET" button for three sec. till the "MHz" show up and then you can press (2.) Down button "UP" or "DN" button one sec. to increase or decrease frequency. Re-press "SET" (3.) SET button button again the mic.
  • Page 8: Preparing Procedures

    6. Preparing procedures please press "SET" button to start the lock-on setting. Press "UP" button for lock-on mode and "DN" button for lock-off mode. Re-press "SET" button the 6-1 ( US-1000D-TH Receiver ) lock function will store. (1.) Setting the rubber pad 5.2 Group displayed :...
  • Page 9: Preparing Procedures Of Condenser Microphone & Accessories

    7. Preparing Procedures Of Condenser Microphone & Accesories Press the SET button to select between frequency and sensitivity. Mh-8990 1. Frequency adjusting (1) With CM-201/CM-501 Lavalier microphone Press the UP or DOWN button to adjust the setting of a menu. Attach CM-201/CM-501 to clothing, tie, lapel, where is the suitable place of sound -Hold SET button for 3 seconds to activate frequency.
  • Page 10: Recommendations

    2. Sensitivity adjusting -The sensitivity control(AF level control) is in the up-left of the transmitter's back. Please use the adjusting sticker to adjust the proper level. 3. To activate "Lock mode" -Hold on to UP button for 3 seconds to activate "Lock mode", press again to unlock.
