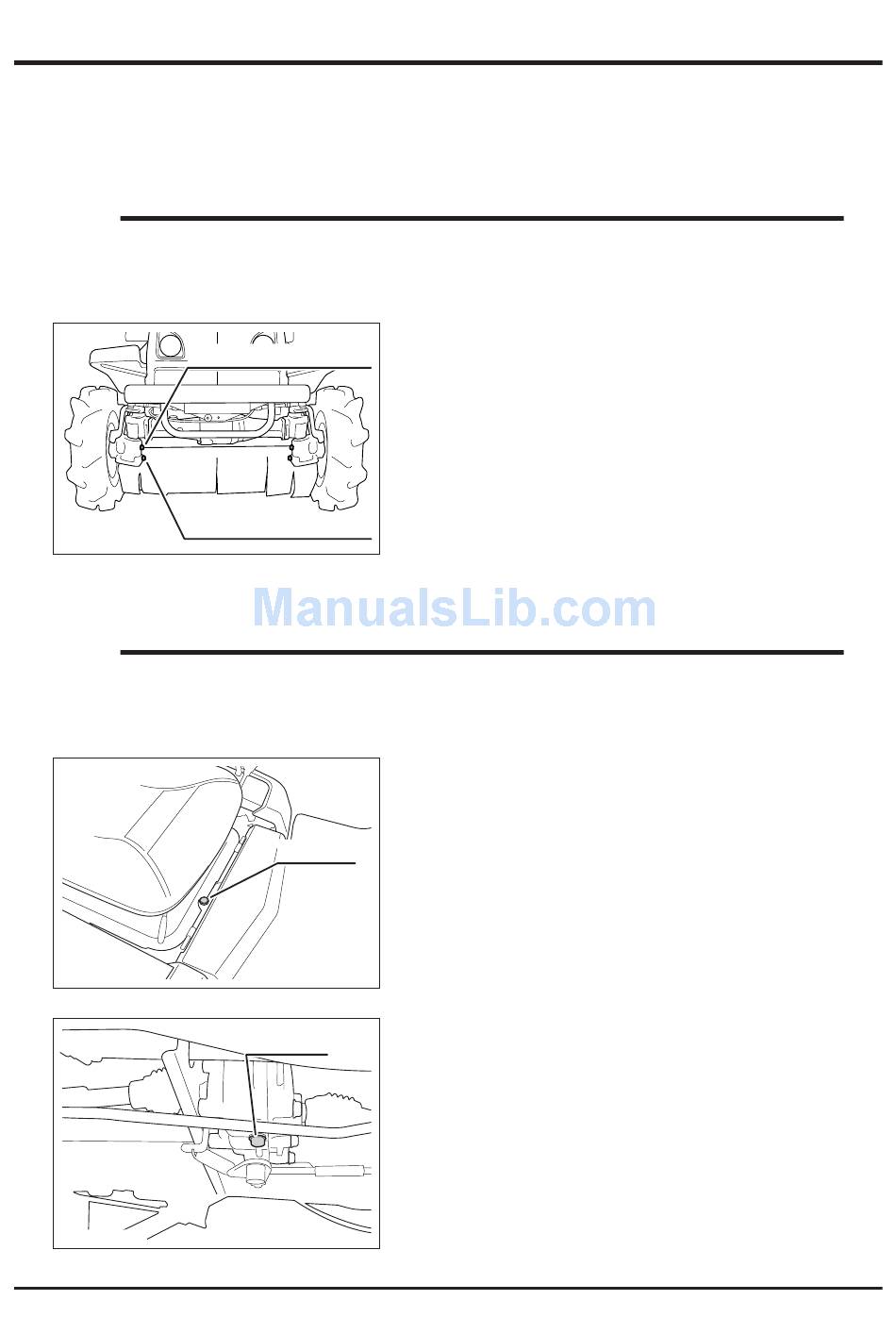

Front Knuckle Oil (CMX222 Only)

NOTE
• Oil to Use: Page 43.
• Oil Capacity: Page 43.
Drain Plug (on both sides)
5321M-0508-040E

Center Gearbox Oil (CMX222 Only)

NOTE
• Oil to Use: Page 43.
• Oil Capacity: Page 43.
5321M-0508-140E
5321M-0508-050E
Maintenance
Filler Plug (on both sides)
Filler Plug
Drain Plug
1. Park machine on a level ground.
2. Have an appropriate oil drain pan.
3. Remove front knuckle oil drain plug to drain
oil.
4. Install drain plug back in place.
5. Remove front knuckle oil filler plug.
6. Fill specified amount of oil into filler.
7. Install filler plug back in place.
1. Park machine on a level ground.
2. Have an appropriate oil drain pan.
3. Open seat bracket
4. Remove center gearbox oil filler plug.
5. Remove center gearbox oil drain plug to
drain oil.
6. Install drain plug back in place.
7. Fill specified amount of oil into filler.
8. Install filler plug back in place.
