CAPA831 Intel Atom
1.2

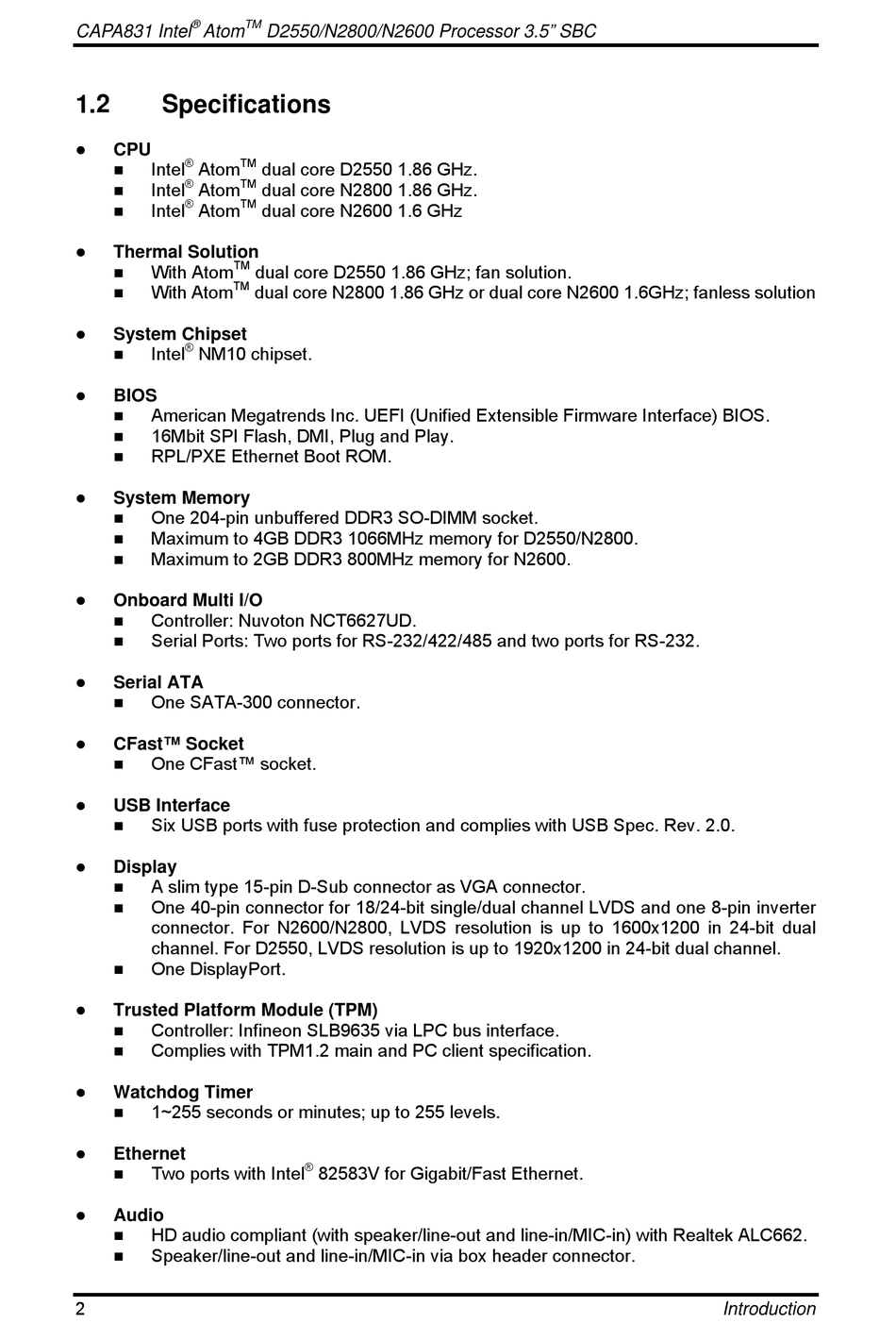

Specifications

 CPU
® TM
Intel Atom

® TM
Intel Atom

® TM
Intel Atom

 Thermal Solution
TM
With Atom

TM
With Atom

 System Chipset
®
Intel NM10 chipset.

 BIOS
American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.

16Mbit SPI Flash, DMI, Plug and Play.

RPL/PXE Ethernet Boot ROM.

 System Memory
One 204-pin unbuffered DDR3 SO-DIMM socket.

Maximum to 4GB DDR3 1066MHz memory for D2550/N2800.

Maximum to 2GB DDR3 800MHz memory for N2600.

 Onboard Multi I/O
Controller: Nuvoton NCT6627UD.

Serial Ports: Two ports for RS-232/422/485 and two ports for RS-232.

 Serial ATA
One SATA-300 connector.

 CFast™ Socket
One CFast™ socket.

 USB Interface
Six USB ports with fuse protection and complies with USB Spec. Rev. 2.0.

 Display
A slim type 15-pin D-Sub connector as VGA connector.

One 40-pin connector for 18/24-bit single/dual channel LVDS and one 8-pin inverter

connector. For N2600/N2800, LVDS resolution is up to 1600x1200 in 24-bit dual
channel. For D2550, LVDS resolution is up to 1920x1200 in 24-bit dual channel.
One DisplayPort.

 Trusted Platform Module (TPM)
Controller: Infineon SLB9635 via LPC bus interface.

Complies with TPM1.2 main and PC client specification.

Watchdog Timer

1~255 seconds or minutes; up to 255 levels.

 Ethernet
Two ports with Intel

Audio

HD audio compliant (with speaker/line-out and line-in/MIC-in) with Realtek ALC662.

Speaker/line-out and line-in/MIC-in via box header connector.

2
TM
D2550/N2800/N2600 Processor 3.5" SBC
dual core D2550 1.86 GHz.
dual core N2800 1.86 GHz.
dual core N2600 1.6 GHz
dual core D2550 1.86 GHz; fan solution.
dual core N2800 1.86 GHz or dual core N2600 1.6GHz; fanless solution
®
82583V for Gigabit/Fast Ethernet.
Introduction
