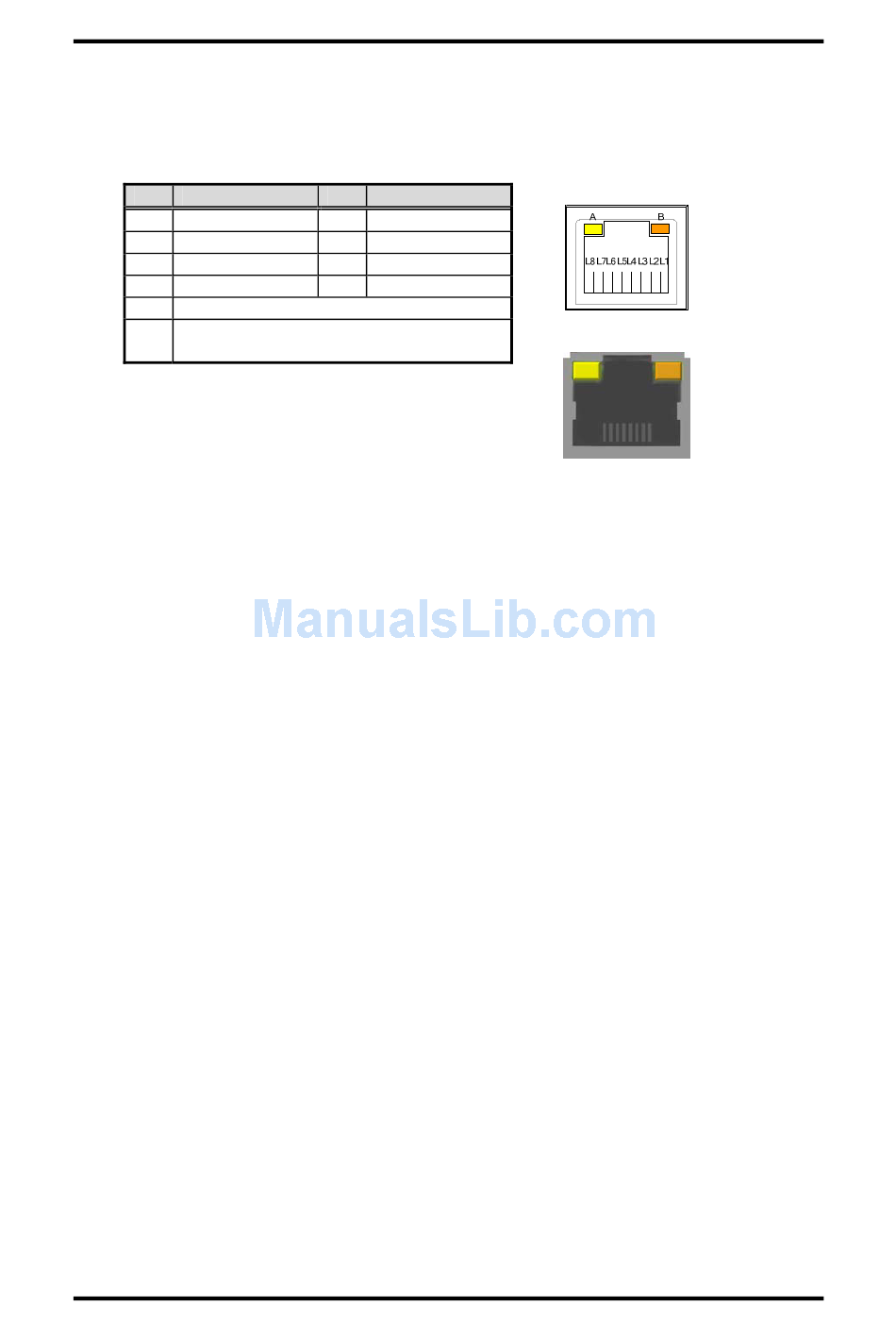

Ethernet Ports (LAN1 and LAN2)

The board has two RJ-45 connectors; LAN1 and LAN2. Ethernet connection can be
established by plugging one end of the ethernet cable into this RJ-45 connector and the
other end (phone jack) to a 1000/100/10-Base-T hub.
Pin Signal
L1 MDI0+
L2 MDI0-
L3 MDI1+
L4 MDI1-
A Active LED (Yellow)
100 LAN LED (Green) / 1000 LAN LED
B
(Orange)
24
TM
D2550/N2800/N2600 Processor 3.5" SBC
Pin Signal
L5 MDI2+
L6 MDI2-
L7 MDI3+
L8 MDI3-
A B
Board and Pin Assignments
