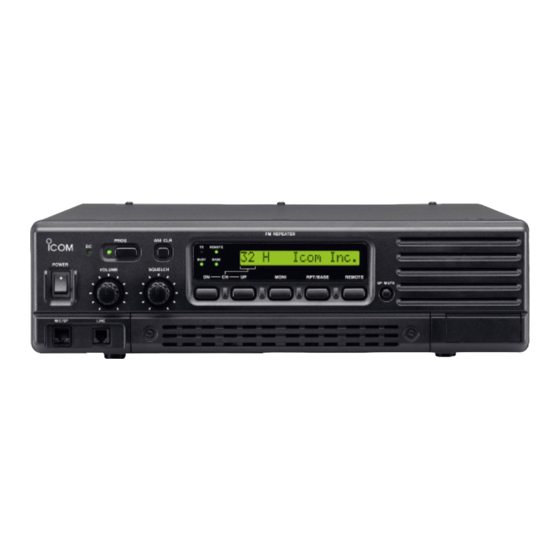

FR3000/FR4000 Repeater Adjustment Mode
Load the icf File
1. Open the CS-F3000 cloning software.
2. Click File, then Open to select your previously saved default ADJ.icf file
(available from Icom Technical Support).

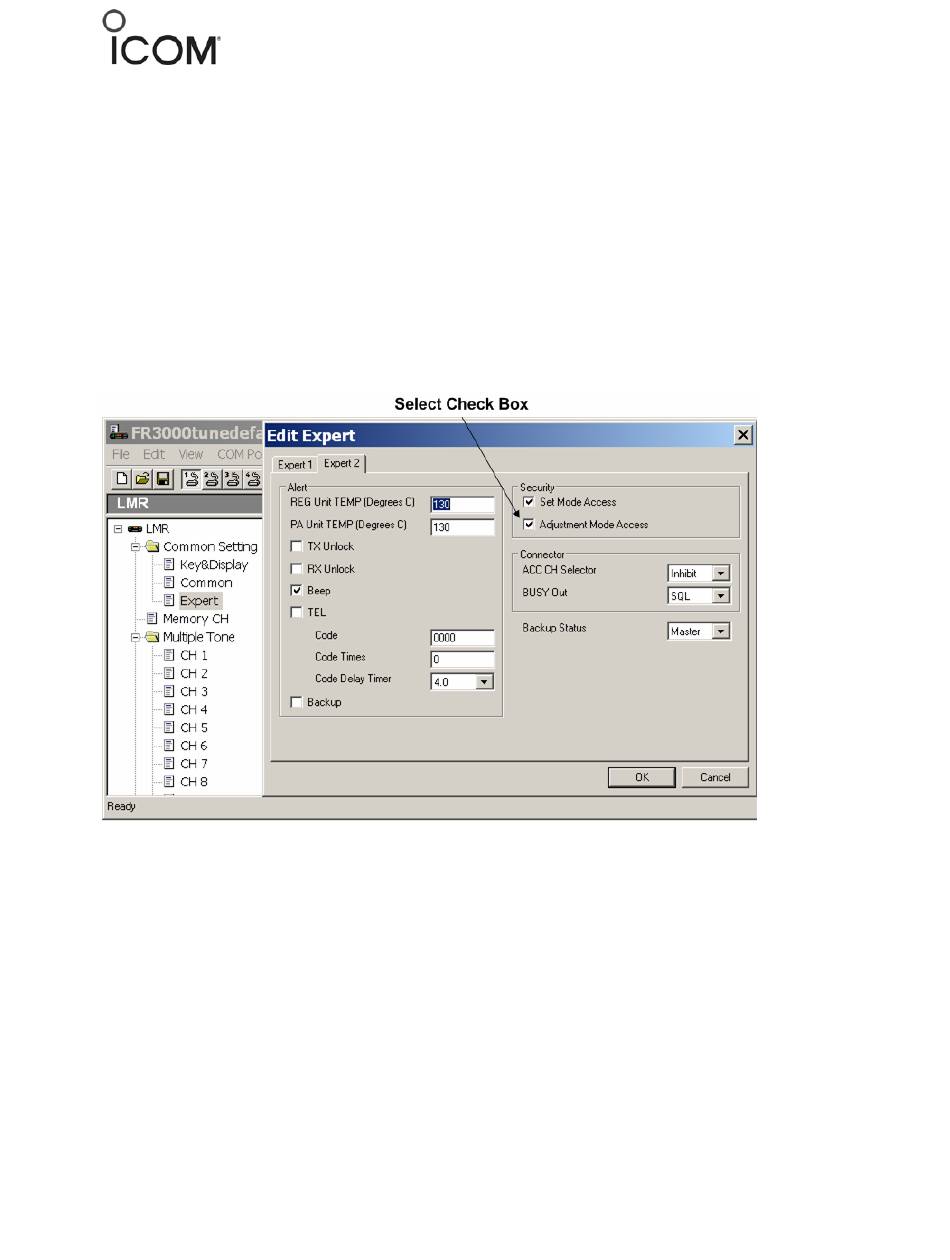

Enabling Adjustment Mode
1. Navigate to Common Setting.
2. Click the Expert icon.
3. Click the Expert 2 tab.
4. Ensure that the Adjustment Mode Access checkbox is selected.
Entering the Adjustment Mode
1. Turn the power OFF.
2. Push and hold the [CH-DN] and [CH-UP] buttons, then turn the power ON;
keep on pushing the [CH-DN] and [CH-UP] buttons until you hear 1 beep —
within 2 seconds you must push the [CH-DN] button, then 2 beeps will
confirm the mode change.
Page 1
Icom America, Inc.
th
2380 116
Ave NE
Bellevue, WA 98004
425.454.7619
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Icom FR3000
Summary of Contents for Icom FR3000
- Page 1 2380 116 Ave NE Bellevue, WA 98004 425.454.7619 FR3000/FR4000 Repeater Adjustment Mode Load the icf File 1. Open the CS-F3000 cloning software. 2. Click File, then Open to select your previously saved default ADJ.icf file (available from Icom Technical Support).
- Page 2 Icom America, Inc. 2380 116 Ave NE Bellevue, WA 98004 425.454.7619 Operating in the Adjustment Mode • Change the adjustment frequency channel (+1). : Push the [CH-UP] button. • Change the adjustment frequency channel (–1). : Push the [CH-DN] button.
- Page 3 Icom America, Inc. 2380 116 Ave NE Bellevue, WA 98004 425.454.7619 LCD Display in the Adjustment Mode Exiting the Adjustment Mode 1. Turn the power OFF. 2. Push and hold the [CH-UP] button, then turn the power ON; keep pushing the [CH-UP] button until you hear 2 beeps.
