1

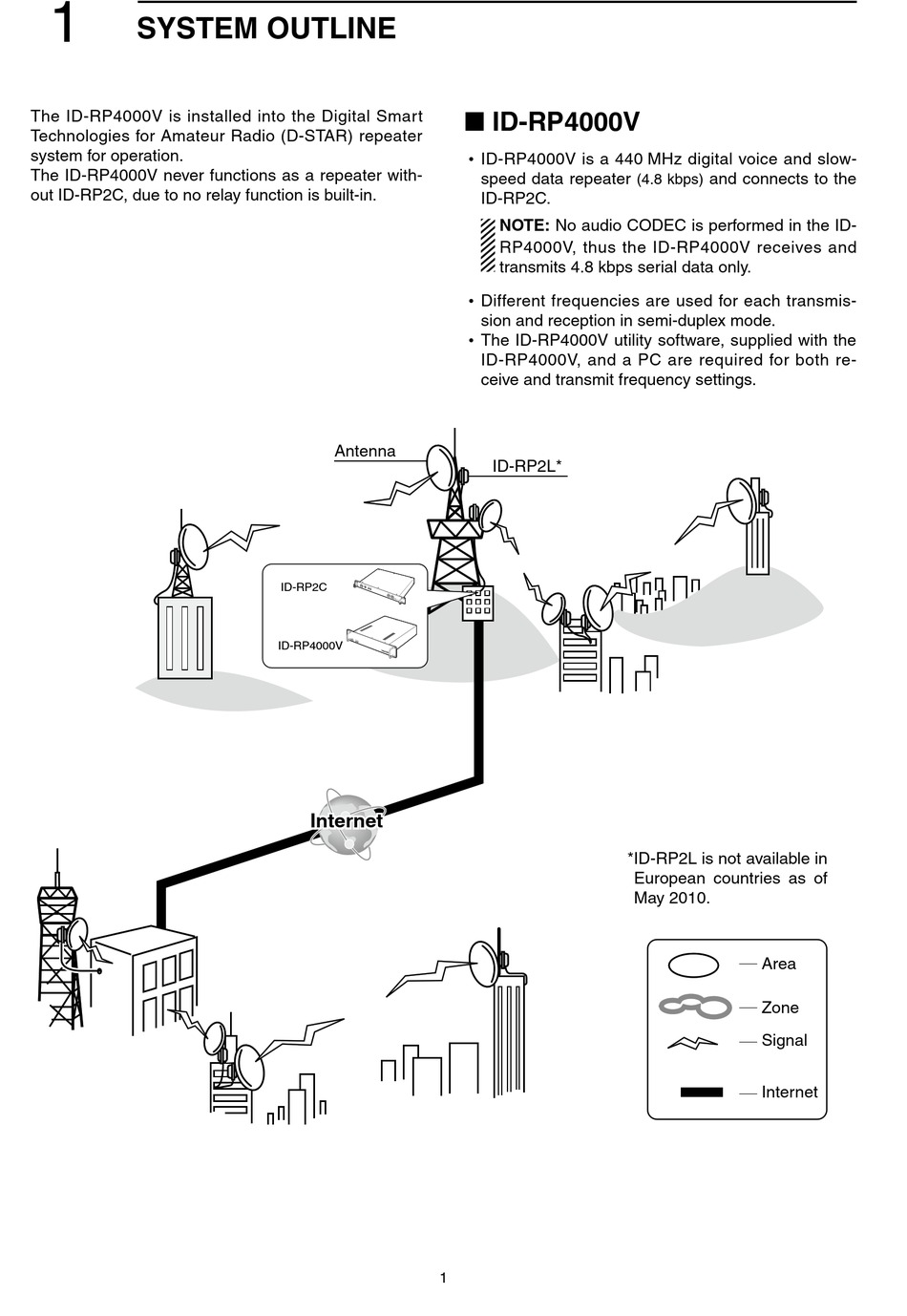

SYSTEM OUTLINE

The ID-RP4000V is installed into the Digital Smart
Technologies for Amateur Radio (D-STAR) repeater
system for operation.
The ID-RP4000V never functions as a repeater with-
out ID-RP2C, due to no relay function is built-in.
Antenna
ID-RP2C
POWE
R 10 BESE-T
SERVICE 1 SERVICE
2
ASSIS
T 1
ASSIS T 2
POWER
ID-RP4000V
SERVICE T SERVICE
R
Repe
ater Con ID- RP2
trolle r V
Internet Internet
1
n ID-RP4000V
• ID-RP4000V is a 440 MHz digital voice and slow-
speed data repeater
ID-RP2C.
NOTE: No audio CODEC is performed in the ID-
RP4000V, thus the ID-RP4000V receives and
transmits 4.8 kbps serial data only.
• Different frequencies are used for each transmis-
sion and reception in semi-duplex mode.
• The ID-RP4000V utility software, supplied with the
ID-RP4000V, and a PC are required for both re-
ceive and transmit frequency settings.
ID-RP2L*
*ID-RP2L is not available in
European countries as of
May 2010.
and connects to the
(4.8 kbps)
Area
Zone
Signal
Internet
