3

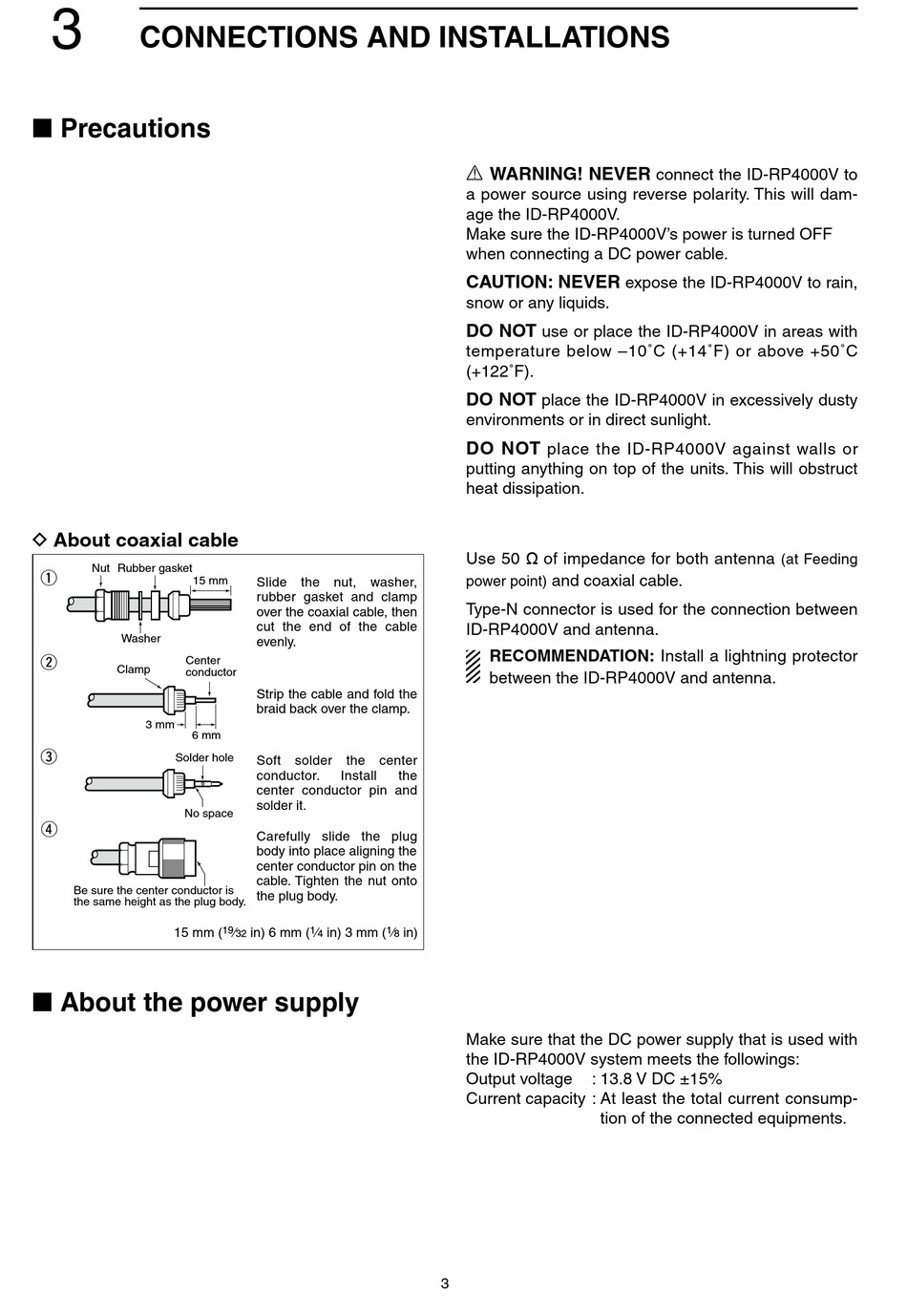

CONNECTIONS AND INSTALLATIONS

n Precautions

D About coaxial cable

Nut Rubber gasket
q
15 mm
Washer
w Center
Clamp
conductor
3 mm
6 mm
e
Solder hole
No space
r
Be sure the center conductor is
the same height as the plug body.
15 mm (
n About the power supply
Slide the nut, washer,
rubber gasket and clamp
over the coaxial cable, then
cut the end of the cable
evenly.
Strip the cable and fold the
braid back over the clamp.
Soft solder the center
conductor. Install
center conductor pin and
solder it.
Carefully slide the plug
body into place aligning the
center conductor pin on the
cable. Tighten the nut onto
the plug body.
19 ⁄ in) 6 mm ( 1 ⁄ in) 3 mm ( 1 ⁄
32 4
R WARNING! NEVER
a power source using reverse polarity. This will dam-
age the ID-RP4000V.
Make sure the ID-RP4000V's power is turned OFF
when connecting a DC power cable.
CAUTION: NEVER
snow or any liquids.
DO NOT
use or place the ID-RP4000V in areas with
temperature below –10˚C (+14˚F) or above +50˚C
(+122˚F).
DO NOT
place the ID-RP4000V in excessively dusty
environments or in direct sunlight.
DO NOT
place the ID-RP4000V against walls or
putting anything on top of the units. This will obstruct
heat dissipation.
Use 50 Ω of impedance for both antenna
and coaxial cable.
power point)
Type-N connector is used for the connection between
ID-RP4000V and antenna.
RECOMMENDATION: Install a lightning protector
between the ID-RP4000V and antenna.
the
in)
8
Make sure that the DC power supply that is used with
the ID-RP4000V system meets the followings:
Output voltage
Current capacity : At least the total current consump-
3
connect the ID-RP4000V to
expose the ID-RP4000V to rain,
: 13.8 V DC ±15%
tion of the connected equipments.
(at Feeding
