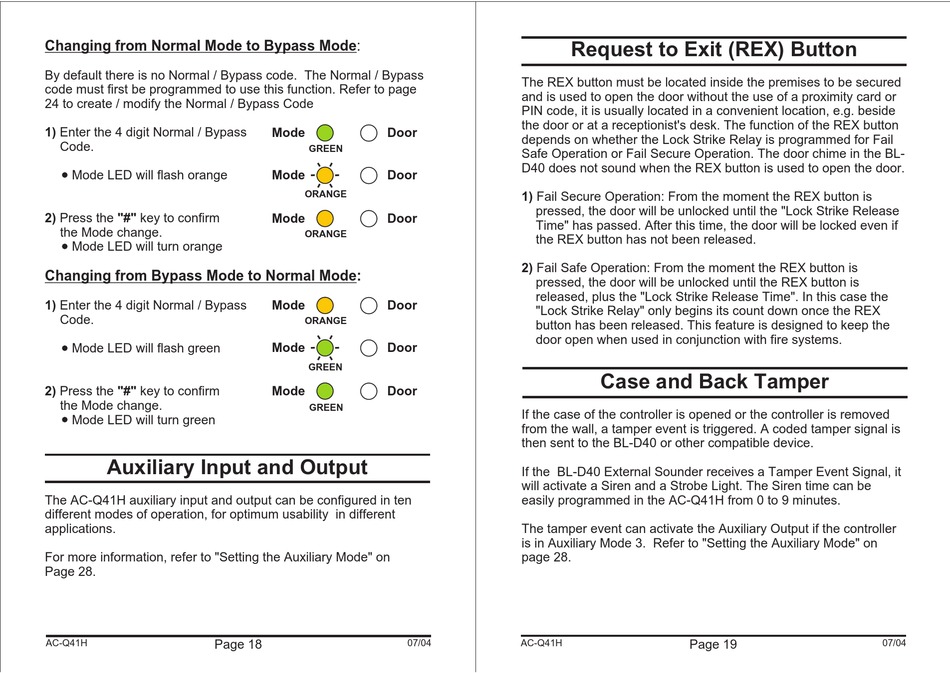

Changing from Normal Mode to Bypass Mode:
By default there is no Normal / Bypass code. The Normal / Bypass
code must first be programmed to use this function. Refer to page
24 to create / modify the Normal / Bypass Code
1) Enter the 4 digit Normal / Bypass
Code.
l Mode LED will flash orange
2) Press the "#" key to confirm
the Mode change.
l Mode LED will turn orange
Changing from Bypass Mode to Normal Mode:
1) Enter the 4 digit Normal / Bypass
Code.
Mode LED will flash green
l
2) Press the "#" key to confirm
the Mode change.
l Mode LED will turn green
Auxiliary Input and Output
The AC-Q41H auxiliary input and output can be configured in ten
different modes of operation, for optimum usability in different
applications.
For more information, refer to "Setting the Auxiliary Mode" on
Page 28.
AC-Q41H
Page 18
Mode Door
GREEN
Mode Door
ORANGE
Mode Door
ORANGE
Mode Door
ORANGE
Mode Door
GREEN
Mode Door
GREEN
07/04

Request to Exit (REX) Button

The REX button must be located inside the premises to be secured
and is used to open the door without the use of a proximity card or
PIN code, it is usually located in a convenient location, e.g. beside
the door or at a receptionist's desk. The function of the REX button
depends on whether the Lock Strike Relay is programmed for Fail
Safe Operation or Fail Secure Operation. The door chime in the BL-
D40 does not sound when the REX button is used to open the door.
1) Fail Secure Operation: From the moment the REX button is
pressed, the door will be unlocked until the "Lock Strike Release
Time" has passed. After this time, the door will be locked even if
the REX button has not been released.
2) Fail Safe Operation: From the moment the REX button is
pressed, the door will be unlocked until the REX button is
released, plus the "Lock Strike Release Time". In this case the
"Lock Strike Relay" only begins its count down once the REX
button has been released. This feature is designed to keep the
door open when used in conjunction with fire systems.

Case and Back Tamper

If the case of the controller is opened or the controller is removed
from the wall, a tamper event is triggered. A coded tamper signal is
then sent to the BL-D40 or other compatible device.
If the BL-D40 External Sounder receives a Tamper Event Signal, it
will activate a Siren and a Strobe Light. The Siren time can be
easily programmed in the AC-Q41H from 0 to 9 minutes.
The tamper event can activate the Auxiliary Output if the controller
is in Auxiliary Mode 3. Refer to "Setting the Auxiliary Mode" on
page 28.
