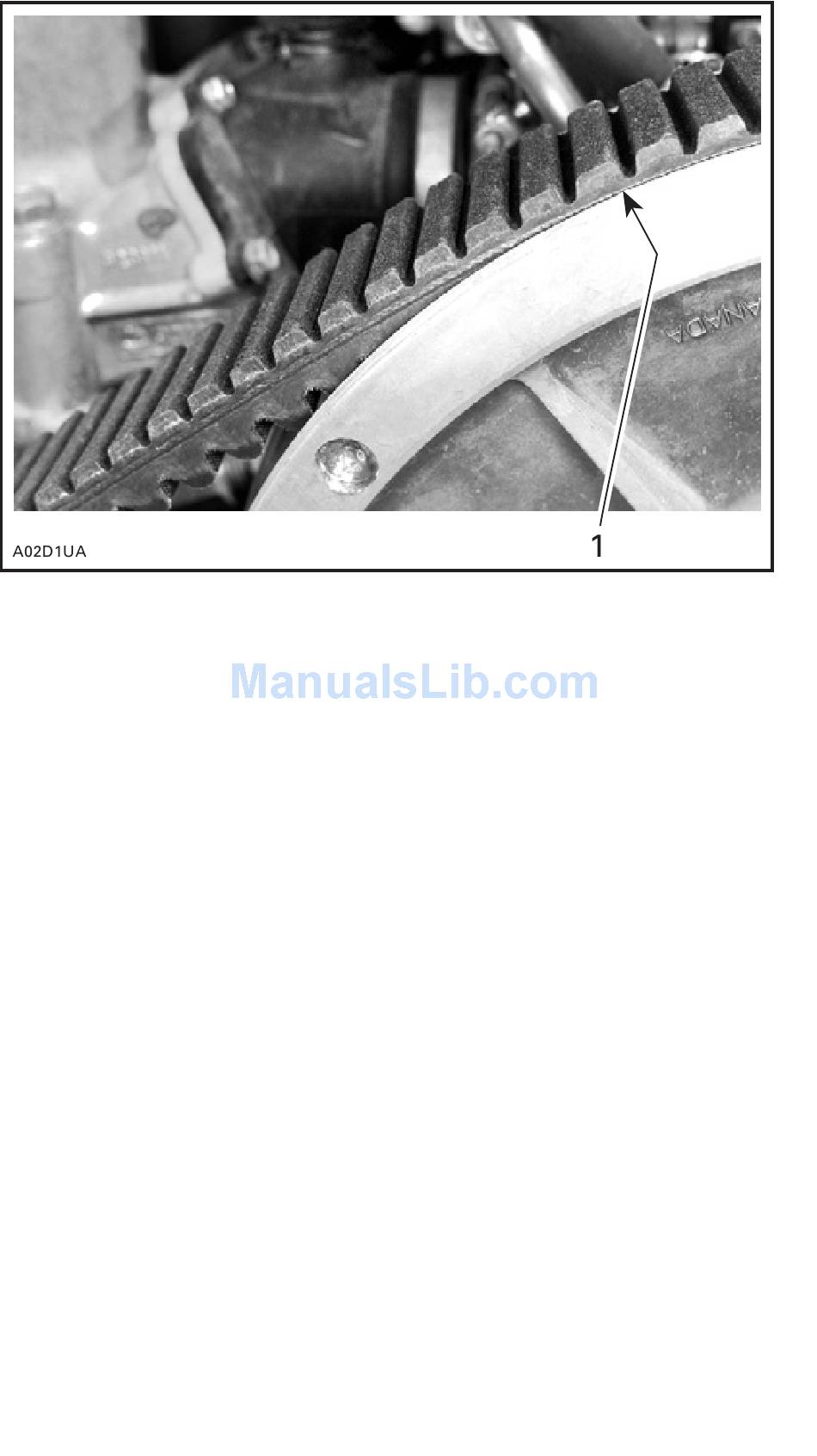

1. Flush
Fan Cooled Models
Adjust drive belt height using Allen screws, as shown.
– To lower belt in driven pulley: turn Allen screws clockwise.
– To raise belt in driven pulley: turn Allen screws counterclockwise.
NOTE: Turn Allen screws 1/4 turn at a time, then rotate driven pul-
ley to allow drive belt to settle in pulley. Check height, repeat as
required.
