Installation Clearances
Before installing, check for the following:
The appliance must be installed in a suitably ventilated room, in accordance with the regulations
in force.
Install in accordance with relevant building and mechanical codes, as well as any local, state or
national regulations.
Item
Check
• Maintain the following clearances
from both combustible and
non-combustible materials.
• If possible, leave 200mm or more on either
side of the unit to facilitate inspection.
• If possible, leave 600mm or more in front
of the unit to facilitate maintenance and
service if necessary.
• There must be a clearance of 600mm or
more in front of the flue terminal.
• This restriction will not be applied to an
area where an effective shield makes a
clearance of 600mm or more in front of
the exhaust outlet.
Page 7

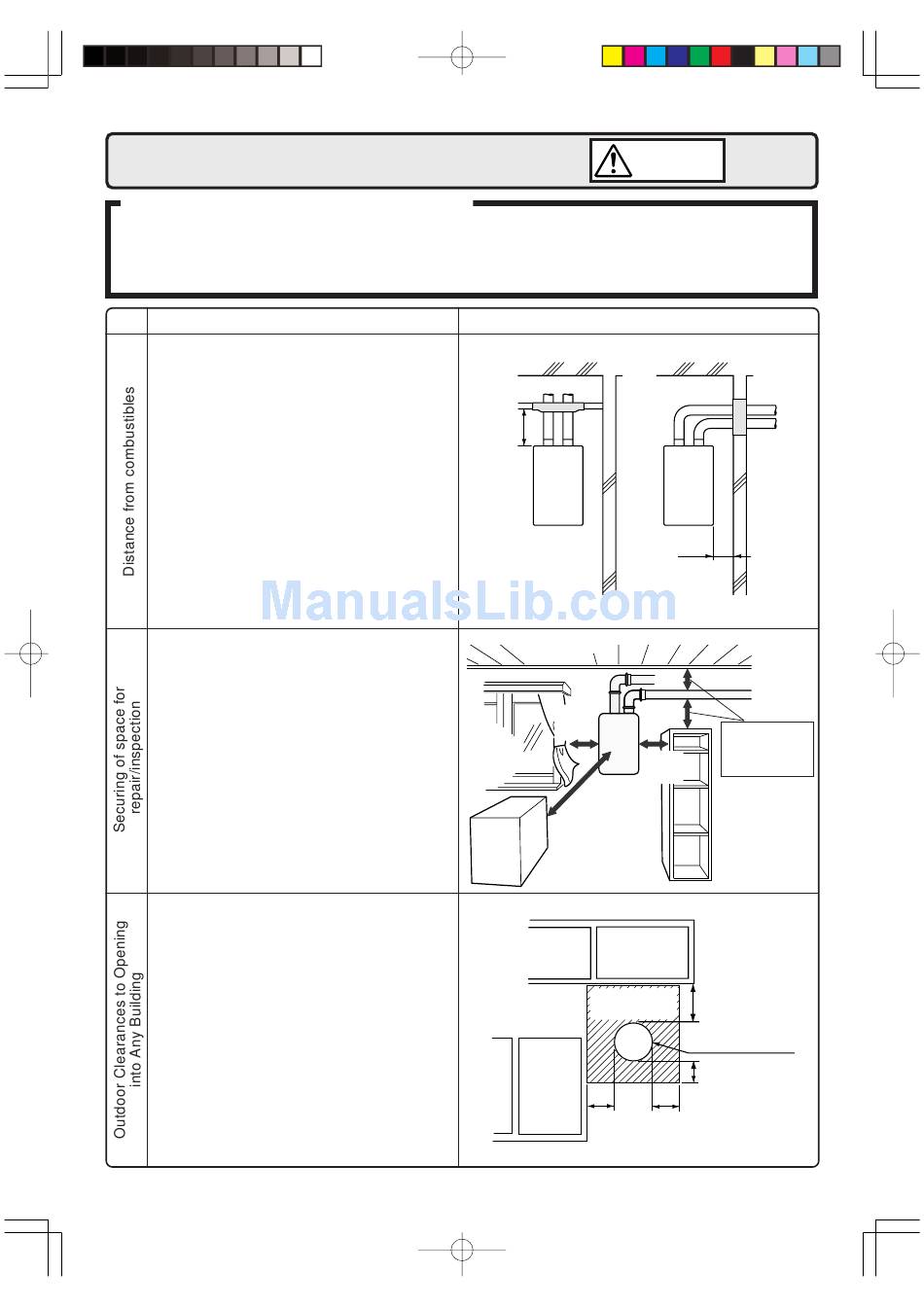

Illustration
45 mm
or more
Distance from
the top surface
200mm
or more
600mm
or more
There must be no
building opening
within this area.
300mm
or more
05.9.28, 1:28 PM
Caution
45 mm
or more
Distance from
the side
Consult the flue
manufacturer for
200mm
clearances
or more
300mm
or more
Flue Terminal
300mm
or more
300mm
or more
