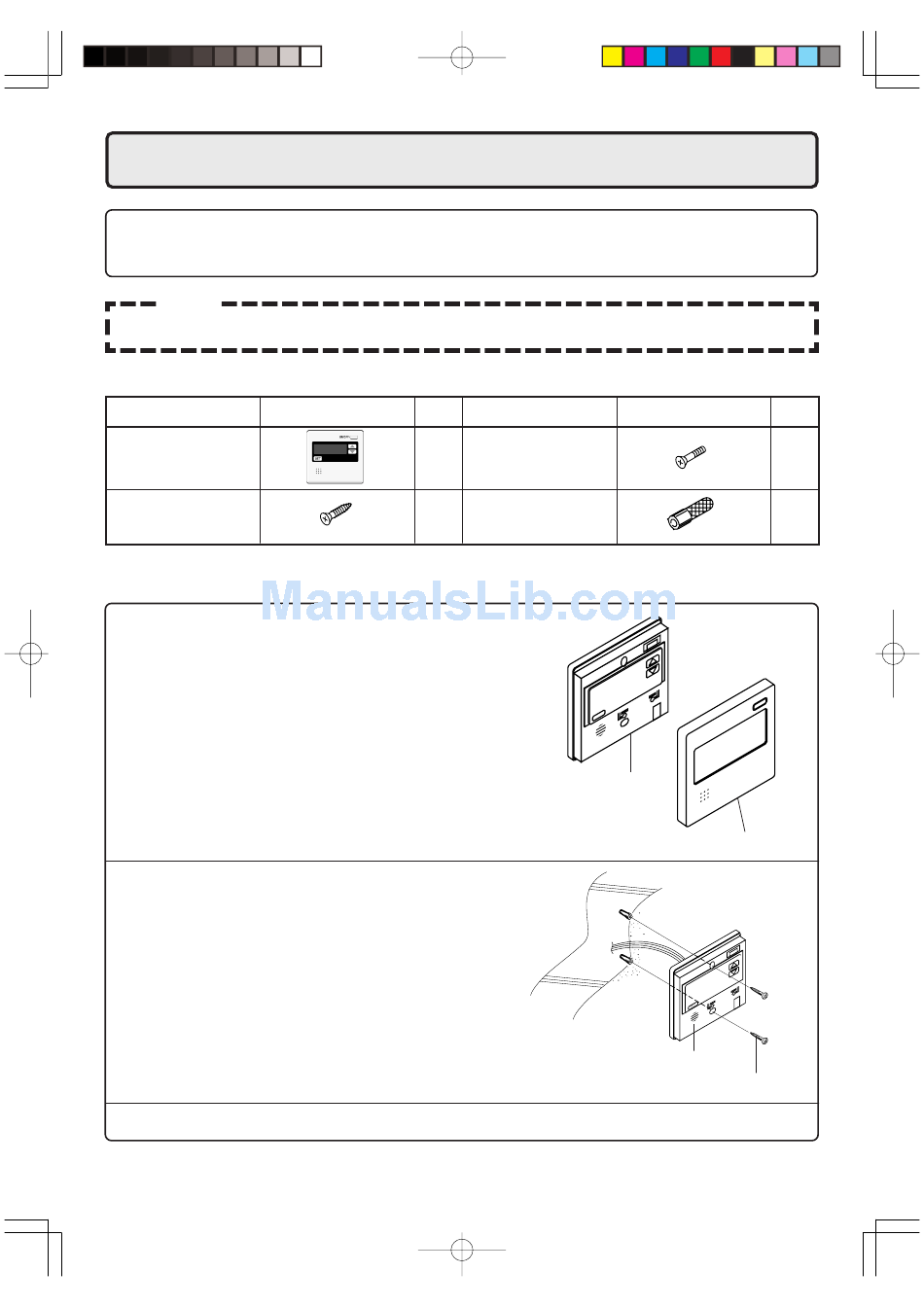

Remote Controller Installation Manual

Model Number:
Note
Do not connect power to the water heater before the remote controller has been properly installed.
Included Accessories
Part
Remote Controller
Cross recessed flat-
head wood screw
Remote Controller Installation Procedure
(1) Remove the decorative cover.
(The decorative cover is attached very simply.)
Connect the Y-shaped terminal to the terminal block at the
back of the remote controller.
* In the case of exposed wiring (attachment to the wall), first
open up the cord intake on the main remote controller
body using pliers. (Take care not to damage the board in
the process.)
(2) Position the holes (diameter: 6 mm X depth: 25 - 30 mm)
to secure the remote controller for the kitchen, and knock
in all the wall anchors. Next, secure it using oval-headed
wood screws.
* The screws must be tightened manually, and the
remote controller secured properly without rattling.
(3) Replace the decorative cover.
24
RC-7508M
Shape
Q'ty
1
2
Page 24
For Installers:
Read this installation guide carefully
before carrying out installation.
Part
Cross recessed
flat-head screw
Wall anchor
T
S E
Main remote
controller body
Main remote controller body
Oval-headed wood screws
05.10.4, 1:56 PM
Shape
Q'ty
2
2
F F
/ O
O N
Decorative cover
