5.8 LEGRESTS

5.8.1 Angle adjustable legrests
Angle adjustable legrests support the legs and reduce pressure. The legrests can be used for bandaged legs, but
not for legs in plaster casts. The legrests must always be fitted with calf pads, footplates and heel straps.
It is important to adjust the height and angle of the legrests to obtain a good seating position.

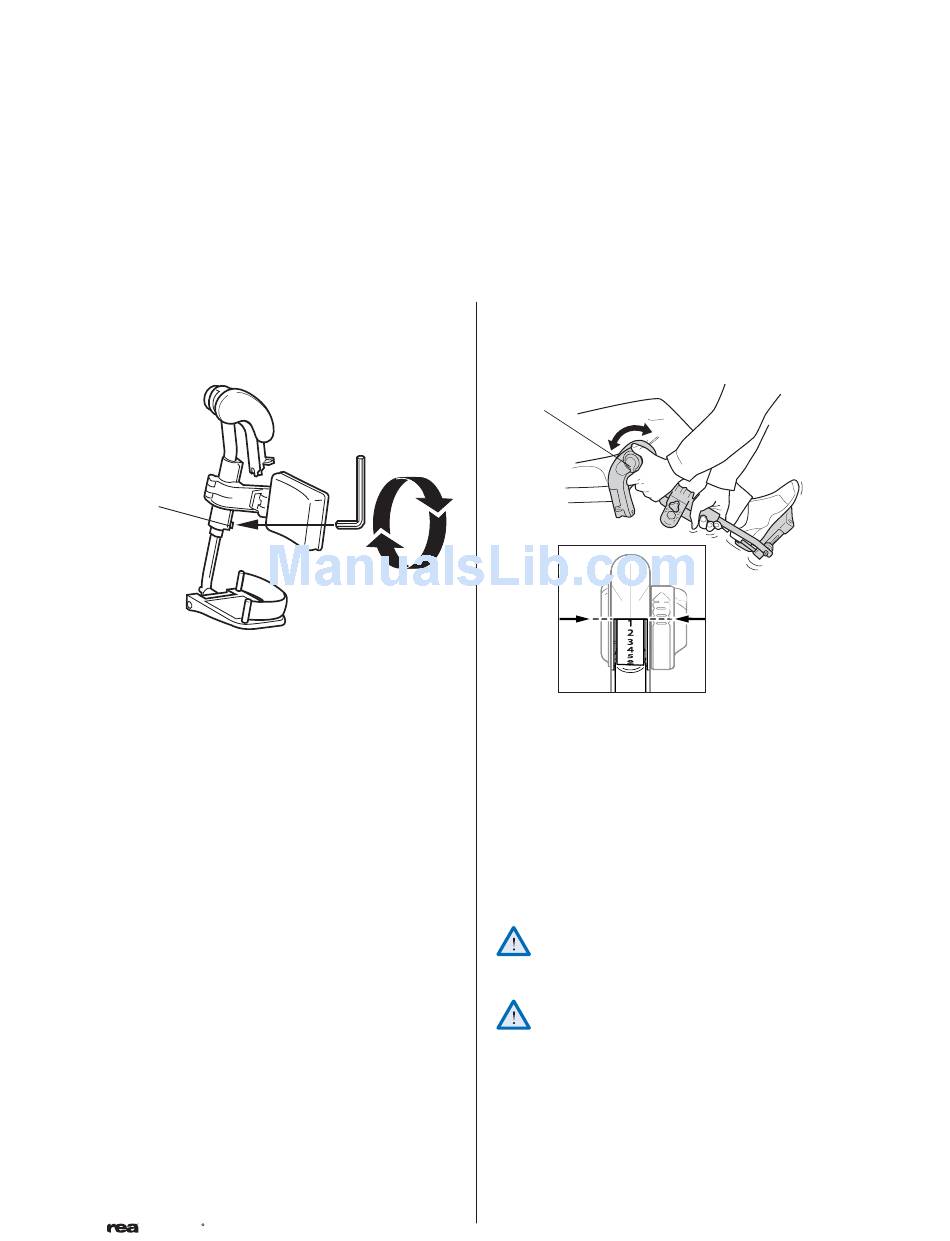

5.8.1.1 Height adjustment
A
Tools: 5 mm Allen Key
Loosen screw (A) with an Allen key. Adjust the
legrest into a suitable height and the screw is
caught by one of the recesses on the legrest tube.
Then retighten the screw.
Azalea
R
5.8.1.2 Angle adjustment
B
C
Pull the lever (B) with one hand while support-
ing the legrest with your other hand. When a
suitable angle is obtained, let go of the lever and
the legrest will look into one of seven preset
positions (C). For the Azalea Max four different
positions ara available, see point 5.7.4
Do not place anything heavy, or let children
sit on the legrest. It may cause damage to the
mechanism.
The distance between the lowest part of
the footrest and the ground must be at least
40 mm.
