5.15 ACCESSORIES

5.15.1 Head rest
1.
B
A
2.
C
D

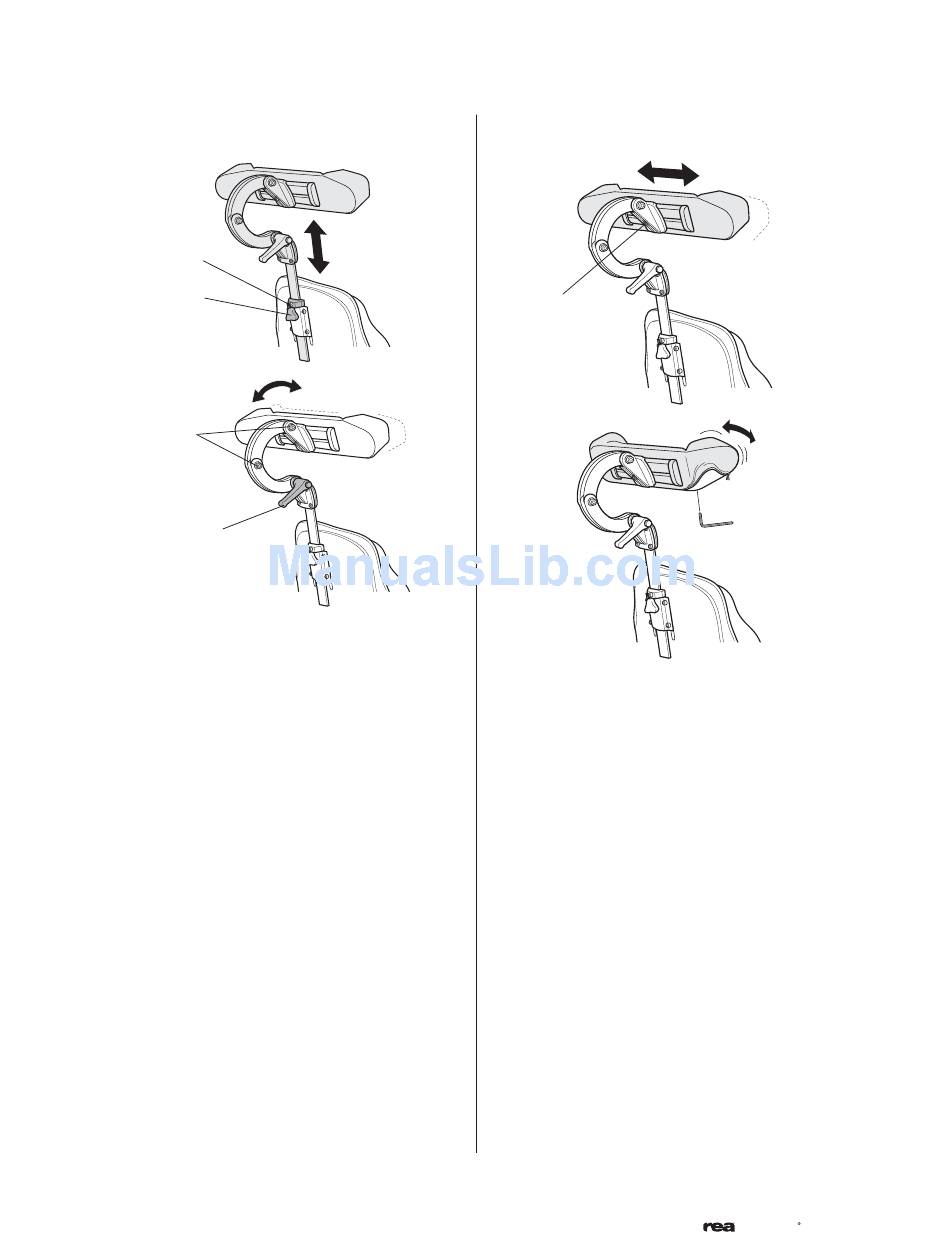

The height and the removal are operated by the
handwheel (A). The bar is equiped with an adjustable
stop block (B).
1. To adjust the height of the head rest, first loosen
the screw (B) in the stop block, then loosen the
handwheel (A). Adjust the head rest to the de-
sired position and re-tighten the handwheel (A).
Now slide the stop block down to the top of the
headrest attachment and tighten the screw (B).
It is now possible to remove the headrest and
reinsert it in the desired position without further
adjustments.
2. The angle and depth is adjusted by the two screws
(C) and the handle (D). Loosen, adjust and re-
tighten.
32
3.
E
4.
3. The sidewise adjustment is made by loosening
screw (E). Adjust and re-tighten.
4. The angle of the wings is adjusted by loosening
screws (D). Adjust and re-tighten.
D
