4.1 DELIVERY CHECK

Any transport damage must be reported immediately
to the transport company. Remember to keep the
packaging until the transport company has checked
the goods and a settlement has been reached.

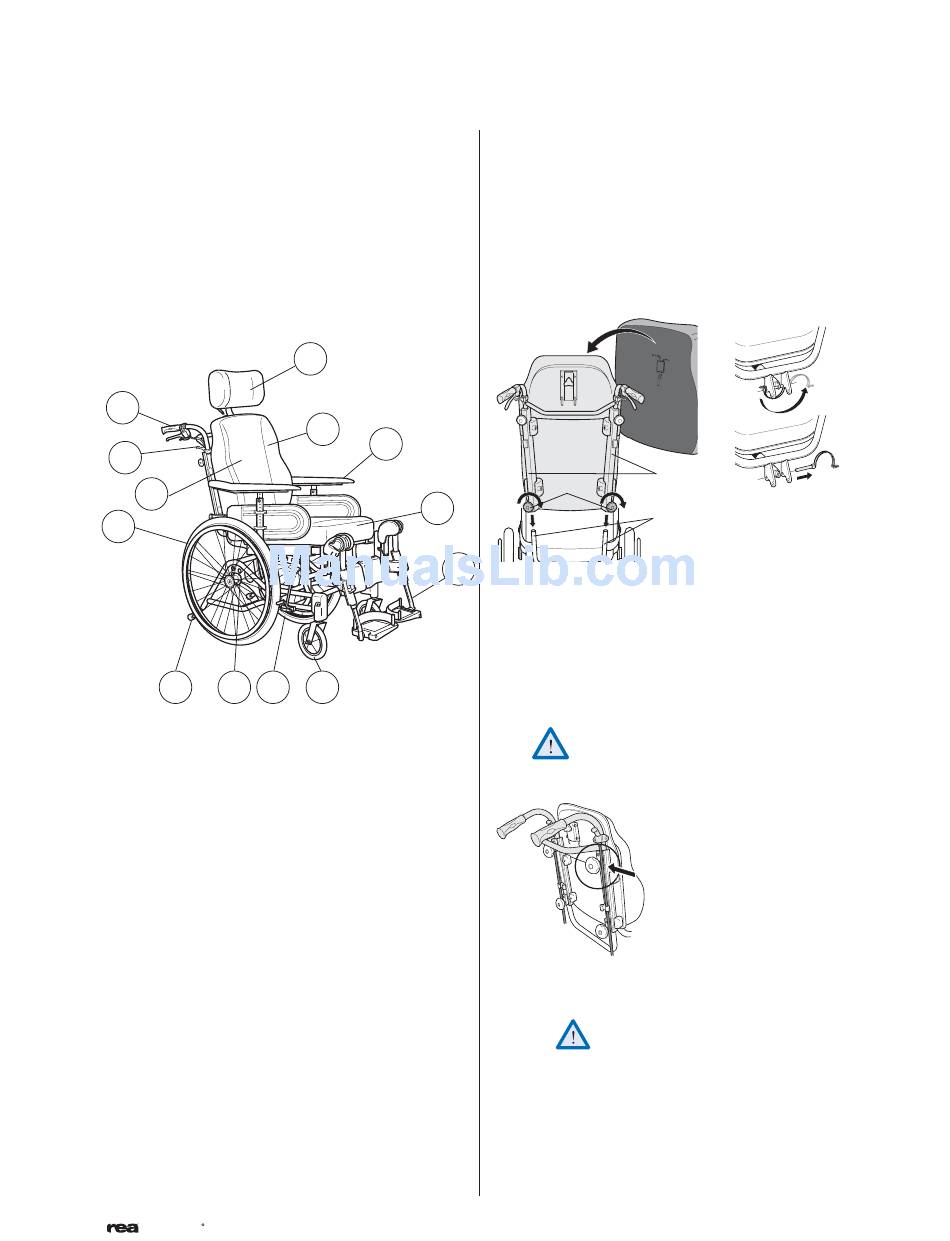

4.2 WHEELCHAIR OVERVIEW

13
12
11
10
9 8 7
1. Neckrest
2. Backrest
3. Armrest
4. Seat
5. Legrest
6. Castor
7. Brake
8. Rear wheel plate
9. Anti-tip device and step tube
10. Rear wheel
11. Allen key for adjustments (on back of backrest
cushion)
12. Handle for backrest angle and seat tilt adjust-
ment
13. Push handle
Azalea
R

4. Set-up and installation

1
2
3
4
5
6

4.3 ASSEMBLY

When you receive your wheelchair, you must fit the
backrest, armrests and legrests onto the chair. The
assembly is simple and does not require any tools.
4.3.1 Backrest
A
C
B
The backrest is fitted onto the wheelchair by sliding
the profiles (A) of the backrest onto the tubes of the
chair (B). make sure that you push the backrest down
as far as possible. Secure into place by tightening the
knobs (C). On the Azalea Max the pin (D) needs to
be secured at the bottom of the backrest.
Secure the backrest cushion using the Velcro strips.
Now check that the backrest is secured
firmly in position!
When fitting the push bar/push
handles be aware to place the wires
outside the handwheels. Otherwise
the wires can be damaged.
D
