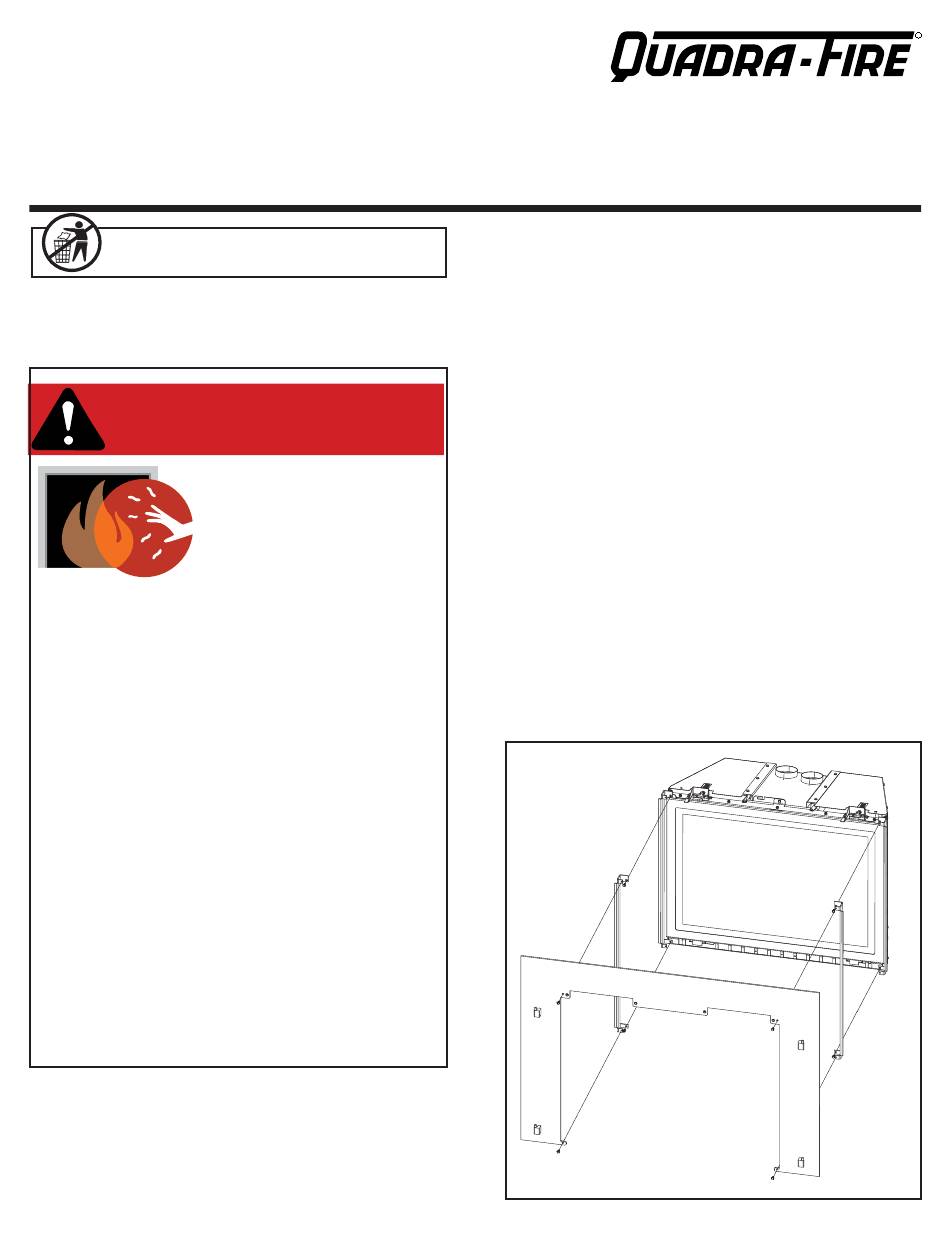

Quadra-Fire QFI30FB Installation Instructions

Firescreen, Firescreen Leaf, Tuscan Arch and Tudor Panel
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
• Do NOT operate with protective barriers open or removed.
• The decorative front must remain closed if children will be
present during the operation of the fireplace.
• The decorative front may be made operable per these
instructions. This may be done only upon request of
a person responsible for the use and operation of the
fireplace.
• The decorative front can be returned to the locked position
following these instructions.
INTRODUCTION
The surround is used to fill the space between the insert
and the solid fuel firebox opening. The front is placed onto
the surround after it is attached to the insert.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed under a surround.

Decorative Fronts

Models: QFI30FB, QFI35FB

- Installation Instructions -

HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
Quadra-Fire • Insert Door Installation Instructions • 2235-912 Rev. F • 4/17
Combustible Materials Specification
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can ig-
nite and burn, whether flame proofed or not, or plastered
or unplastered shall be considered combustible materials.
CAUTION! Do not install damaged components.
SURROUND INSTALLATION
1. The surround is shipped with the brackets attached for
shipping purposes. Remove the surround brackets from
the surround by removing two screws on each bracket.
2. Mount the left and right surround brackets onto the
appliance with four screws. See Figure 1.
3. Mound the surround to the surround brackets with four
screws. See Figure 1.
4. Attach the surround vanity panel with four 10-24 x 3/4
Phillips pan head screws. See Figure 2.
5. Once the surround is attached, slide the appliance
backward until the surround is tight to the existing non-
combustible finished wall.
Figure 1
