VBOX 3i User Guide

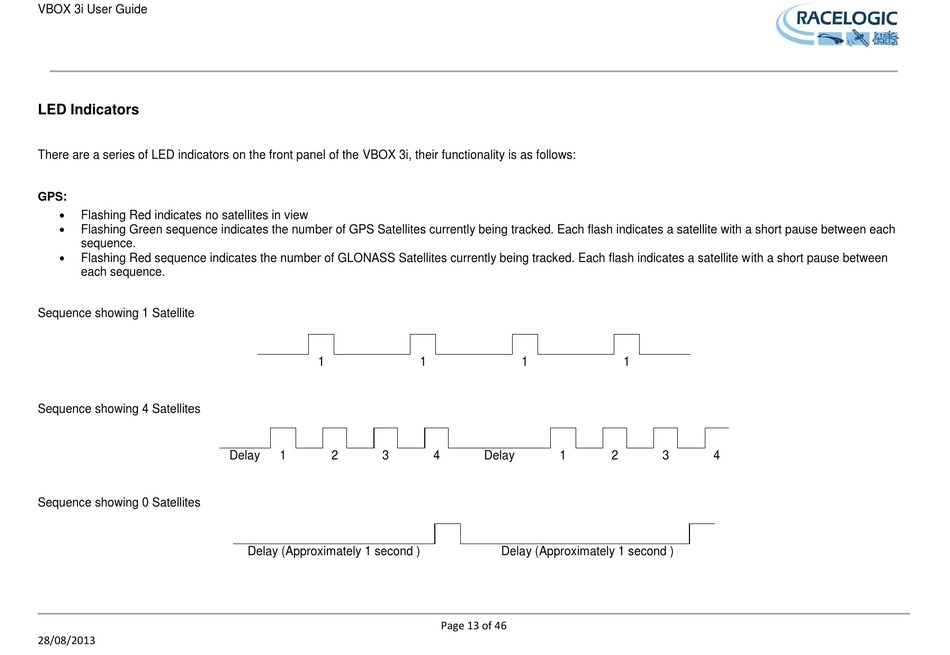

LED Indicators

There are a series of LED indicators on the front panel of the VBOX 3i, their functionality is as follows:
GPS:

Flashing Red indicates no satellites in view

Flashing Green sequence indicates the number of GPS Satellites currently being tracked. Each flash indicates a satellite with a short pause between each
sequence.

Flashing Red sequence indicates the number of GLONASS Satellites currently being tracked. Each flash indicates a satellite with a short pause between
each sequence.
Sequence showing 1 Satellite
Sequence showing 4 Satellites
Sequence showing 0 Satellites
28/08/2013
1
Delay 1 2 3
Delay (Approximately 1 second )
1 1
4 Delay 1
Delay (Approximately 1 second )
Page 13 of 46
1
2 3 4
