VBOX 3i User Guide

Analogue Input Connector

Connector: Analogue
PIN In/Out
1 I
2 I
3 I
4 I
5 I
6 I
7 I
8 I
9
10
11
12
13
Note: A screw terminal connector block is available to
purchase on request from your VBOX supplier.
28/08/2013

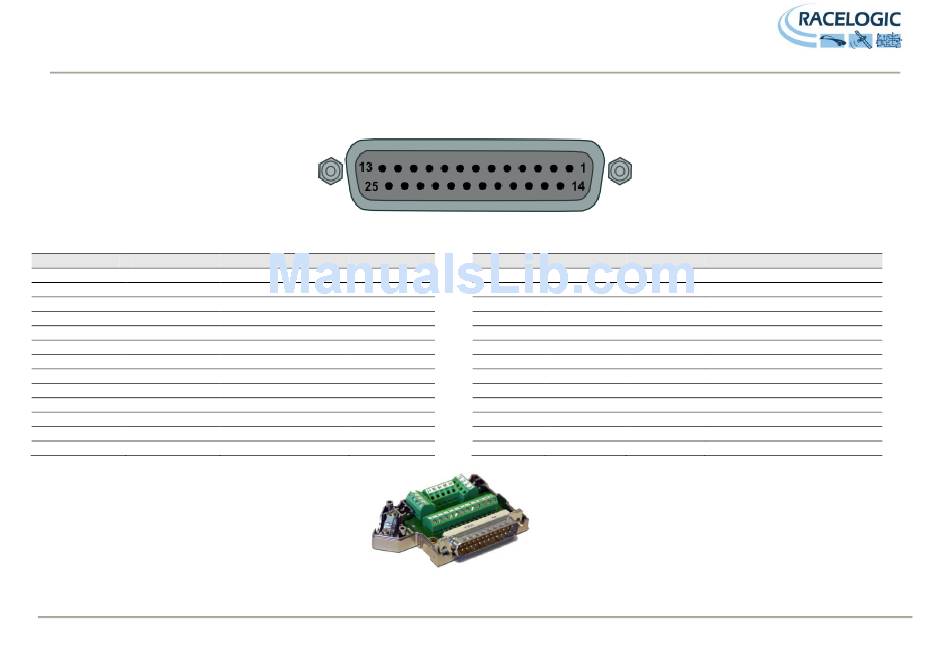

View of Socket on VBOX III
Type: Sub-D 25-way Socket
Description Range
Channel 1 +
Channel 1 -
Channel 2 +
Channel 2 -
Channel 3 +
Channel 3 -
Channel 4 +
Channel 4 -
Connector: Analogue
PIN In/Out
14 O
15 O
16 O
17 O
18
19
20
21
22
23
24
25
Page 43 of 46
Type: Sub-D 25-way Socket
Description Range
Vbatt Equal to Input Voltage. 100mA
GND
Iso. 5 V Out Isolated 5V ±2%. 100mA
Iso. GND Isolated Ground
