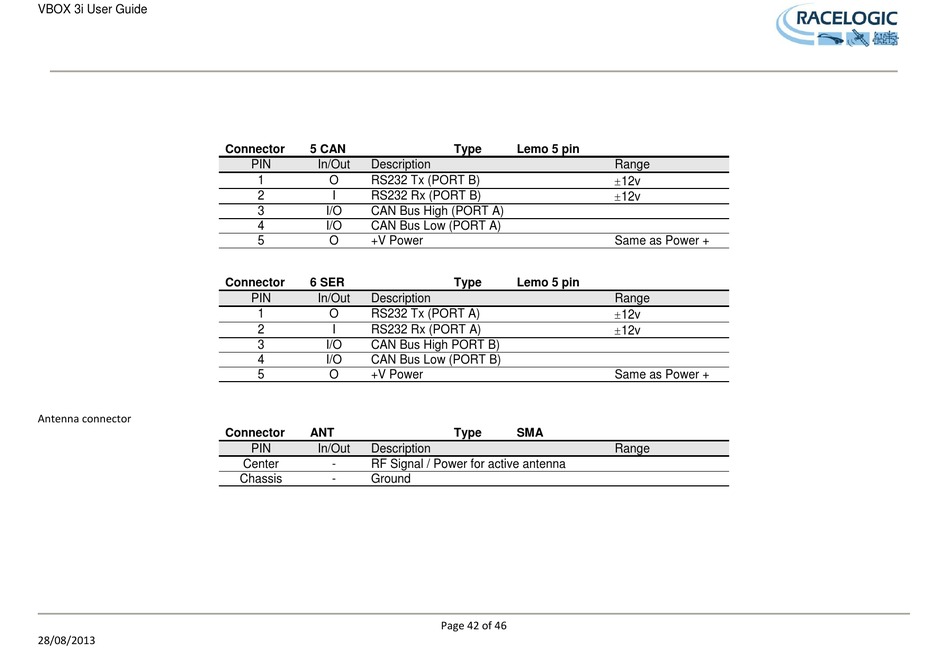

VBOX 3i User Guide
Antenna connector
28/08/2013
Connector
5 CAN
PIN
In/Out
Description
1
O
RS232 Tx (PORT B)
2
I
RS232 Rx (PORT B)
3
I/O
CAN Bus High (PORT A)
4
I/O
CAN Bus Low (PORT A)
5
O
+V Power
Connector
6 SER
PIN
In/Out
Description
1
O
RS232 Tx (PORT A)
2
I
RS232 Rx (PORT A)
3
I/O
CAN Bus High PORT B)
4
I/O
CAN Bus Low (PORT B)
5
O
+V Power
Connector
ANT
PIN
In/Out
Description
Center
-
RF Signal / Power for active antenna
Chassis
-
Ground
Type
Lemo 5 pin
Range
12v
12v
Same as Power +
Type
Lemo 5 pin
Range
12v
12v
Same as Power +
Type
SMA
Range
Page 42 of 46
