03 Screen Layout – Performance Box Touch V1

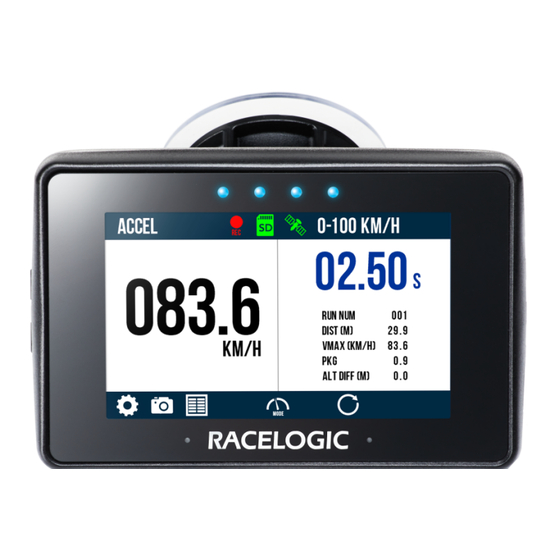

As the name suggests, you can control the Performance Box Touch by using its capacitive touch screen.
Generally, the top of the screen contains indicative status information, the centre of the screen contains mode/
settings information which can be navigated by pressing the fwd/back buttons or by swiping the screen left/right, and
the bottom of the screen contains function buttons.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/Performance_Box_Touch/Performance_Box_Touch_V1/
User_Guide_%E2%80%93_Performance_Box_Touch_V1/03_Screen_Layout_%E2%80%93_Performance_Box_Touch_V1
