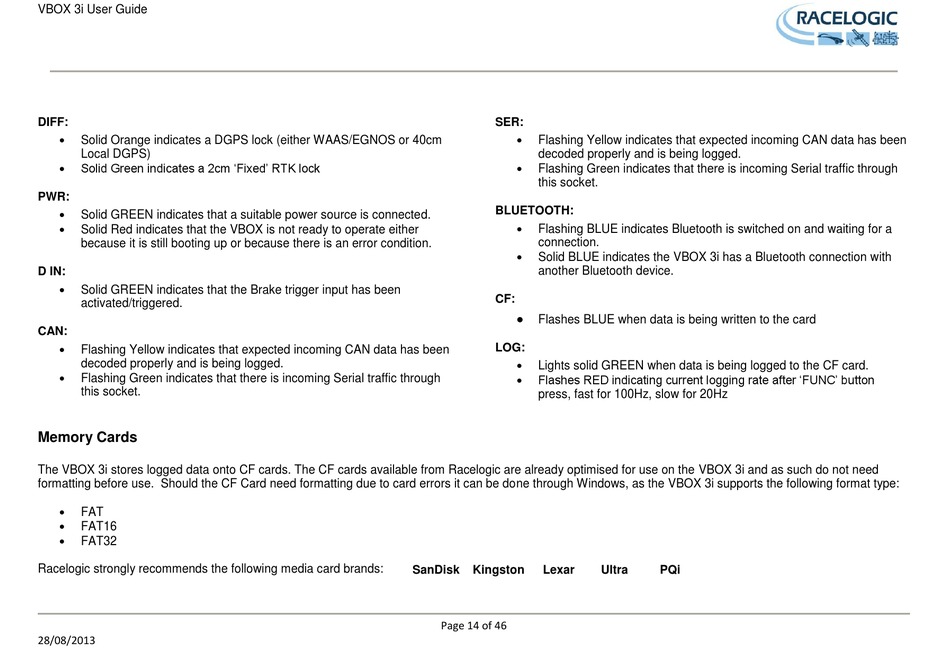

VBOX 3i User Guide
DIFF:

Solid Orange indicates a DGPS lock (either WAAS/EGNOS or 40cm
Local DGPS)

Solid Green indicates a 2cm „Fixed‟ RTK lock
PWR:

Solid GREEN indicates that a suitable power source is connected.

Solid Red indicates that the VBOX is not ready to operate either
because it is still booting up or because there is an error condition.
D IN:

Solid GREEN indicates that the Brake trigger input has been
activated/triggered.
CAN:

Flashing Yellow indicates that expected incoming CAN data has been
decoded properly and is being logged.

Flashing Green indicates that there is incoming Serial traffic through
this socket.

Memory Cards

The VBOX 3i stores logged data onto CF cards. The CF cards available from Racelogic are already optimised for use on the VBOX 3i and as such do not need
formatting before use. Should the CF Card need formatting due to card errors it can be done through Windows, as the VBOX 3i supports the following format type:

FAT

FAT16

FAT32
Racelogic strongly recommends the following media card brands:
28/08/2013
SER:

Flashing Yellow indicates that expected incoming CAN data has been
decoded properly and is being logged.

Flashing Green indicates that there is incoming Serial traffic through
this socket.
BLUETOOTH:

Flashing BLUE indicates Bluetooth is switched on and waiting for a
connection.

Solid BLUE indicates the VBOX 3i has a Bluetooth connection with
another Bluetooth device.
CF:

Flashes BLUE when data is being written to the card
LOG:

Lights solid GREEN when data is being logged to the CF card.

Flashes RED indicating current logging rate after „FUNC‟ button
press, fast for 100Hz, slow for 20Hz
SanDisk Kingston Lexar
Page 14 of 46
Ultra PQi
