Installing and connecting the Crocus CNV

2.7 Connecting the interfaces of the Crocus CNV

The DTE/DCE definition of the Crocus CNV interfaces is as follows:
Interface
onboard G703 DTE
modular DCE

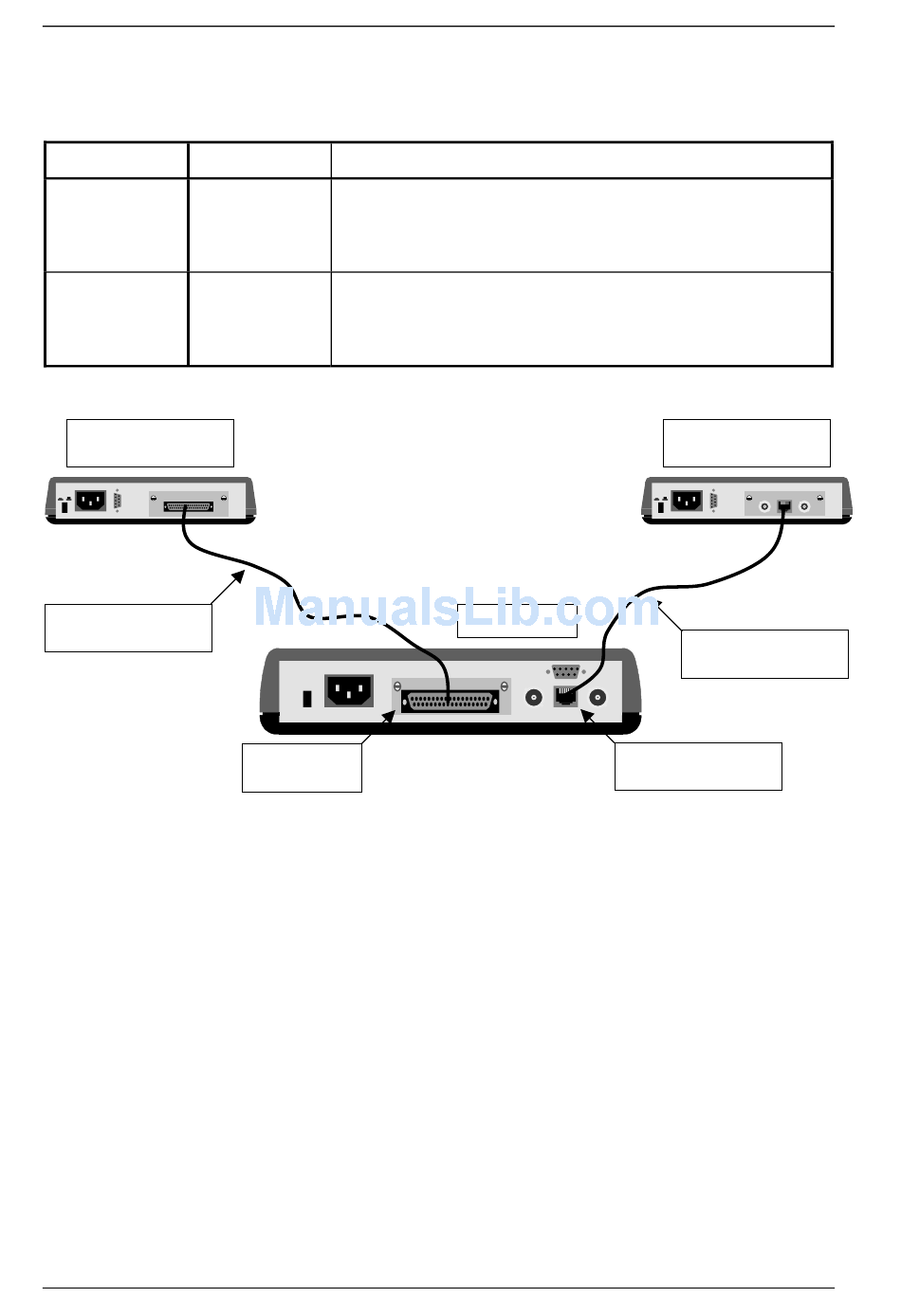

The following figure shows an example of a set-up with a Crocus CNV:
modem + V36 interface
(DCE)
crossed
interconnection cable
24
DTE / DCE
To connect this interface to ...
• a DTE device, use a crossed interconnection cable.
• a DCE device, use a straight interconnection cable.
To connect this interface to ...
• a DTE device, use a straight interconnection cable.
• a DCE device, use a crossed interconnection cable.
modular interface
(DCE)
Interconnection cable
Crocus CNV
onboard G703 interface
Crocus CNV
modem + G703 interface
(DCE)
straight
interconnection cable
(DTE)
