Installing and connecting the Crocus CNV
2.6.2 Inserting the modular DTE interface in the Card Version
At the back of the CN4 card nest, two empty slots are provided in which the desired modular DTE
interface can be inserted without extracting the card from the card nest. The upper interface slot is used
for converter A and the lower interface slot is used for converter B.
To insert the modular DTE interface in the CN4 card nest, proceed as follows:
Step
1 Gently slide the modular DTE interface on the two inner slides into an available slot.

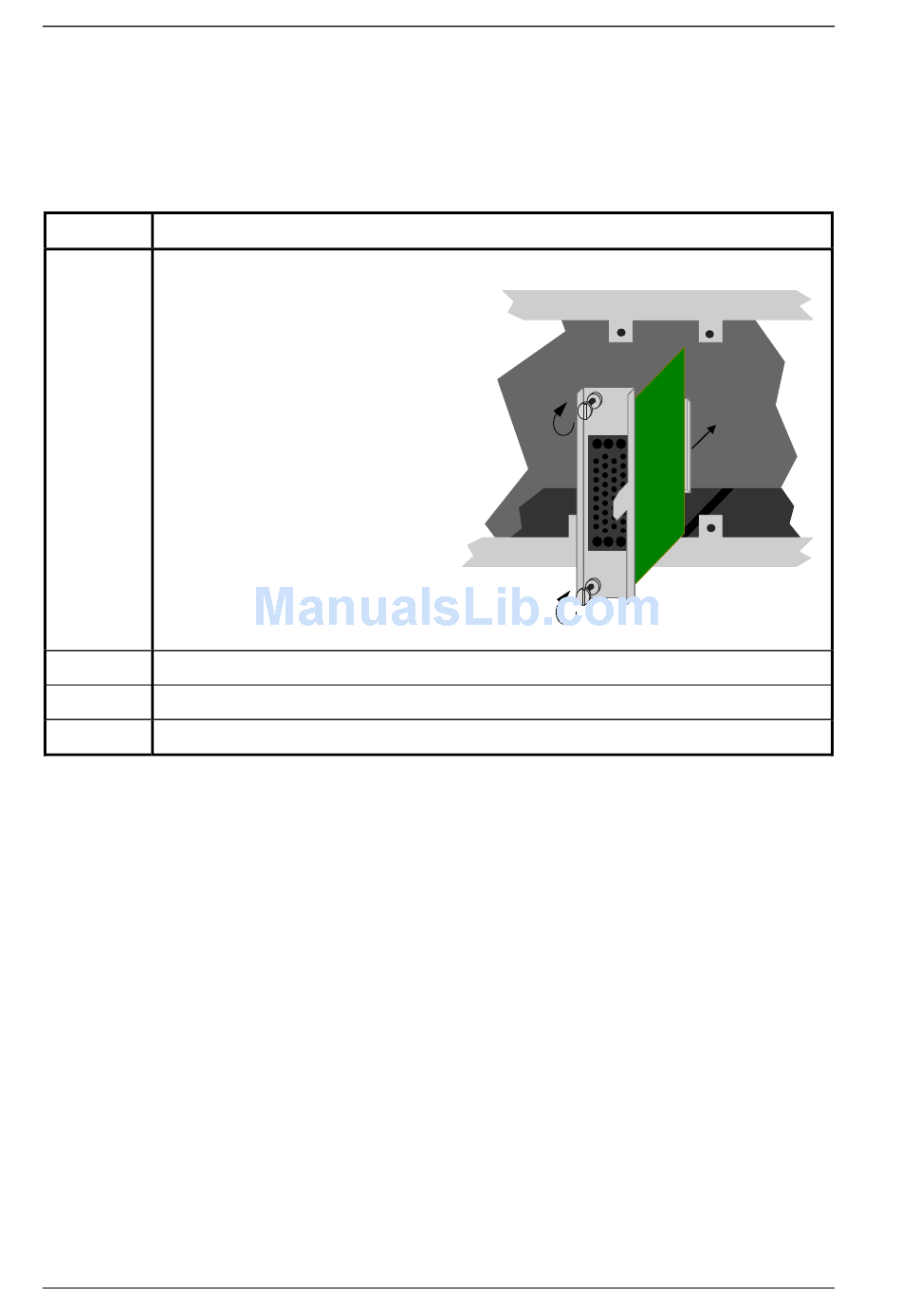

The following figure shows this procedure:
2 When nearly inserted, press tight.
3 Lock both screws.
4 When the modular DTE interface is present, connect the application.
20
Action
Crocus CNV
User manual
