You must display the Closeup View for older HP devices that do not support
a browser interface from the management station where HP TopTools for
Hubs & Switches is installed. See the online help for specific instructions
about configuring older HP devices.
SNMP/Trap Configuration
See SNMP/Trap Configuration
information about configuring SNMP thresholds.

Options for Displaying Maps

There are several parameters you can set to control how your map looks and
how often it is refreshed. Click on the Options button at the bottom of the page
displaying a map and make your selections. Click on the Apply button to save
them. To close the window without making any changes, click on OK. The
Cancel button cancels any changes that you have not yet applied.

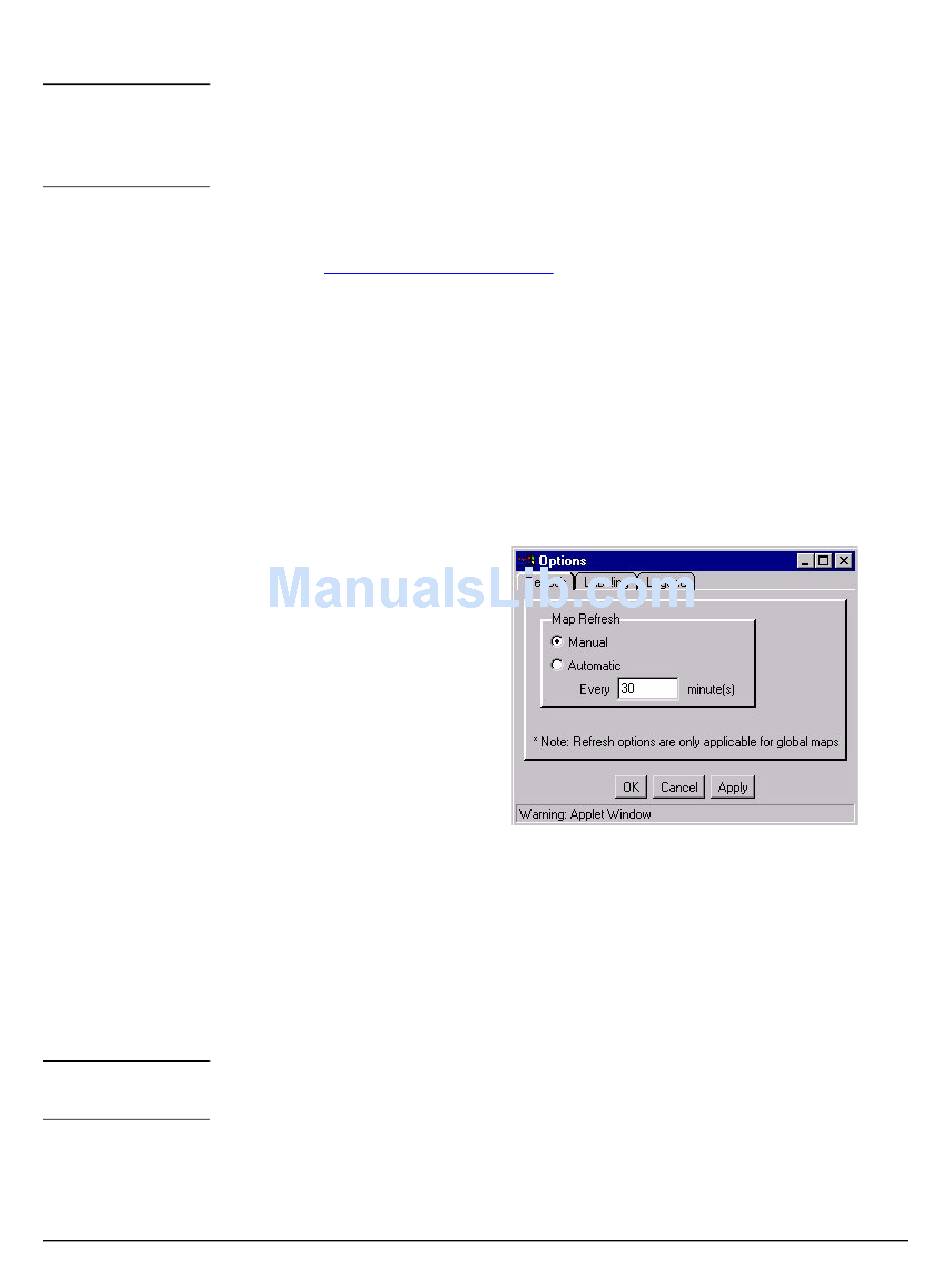

Options—
Refresh Map
s
If you select the
Automatic Map
Refresh option your
map will refresh its
display of devices
automatically for a
selected time period.
If you want your map
to refresh upon
command only,
select the Manual
Map Refresh option.
Options—Labeling
Choose how you would like your device labels to display in the map, by name
or by device address. If you do not want to display labels, uncheck the Show
Label Names box. Check the Show Segment Names box to display the names of
segments in your map. Click on Apply to save your choices.
Label options are only applicable when the Show Labels button on the Map is
selected.
Options for Displaying Maps
in the Networking Devices chapter for more
Viewing Your Maps
8-7
