N o t e
Select the Trap Receivers tab and set the management stations that should
3.
receive traps.
4. Select the Authorized Managers tab and set the management stations that
can send and receive SNMP requests for the device.

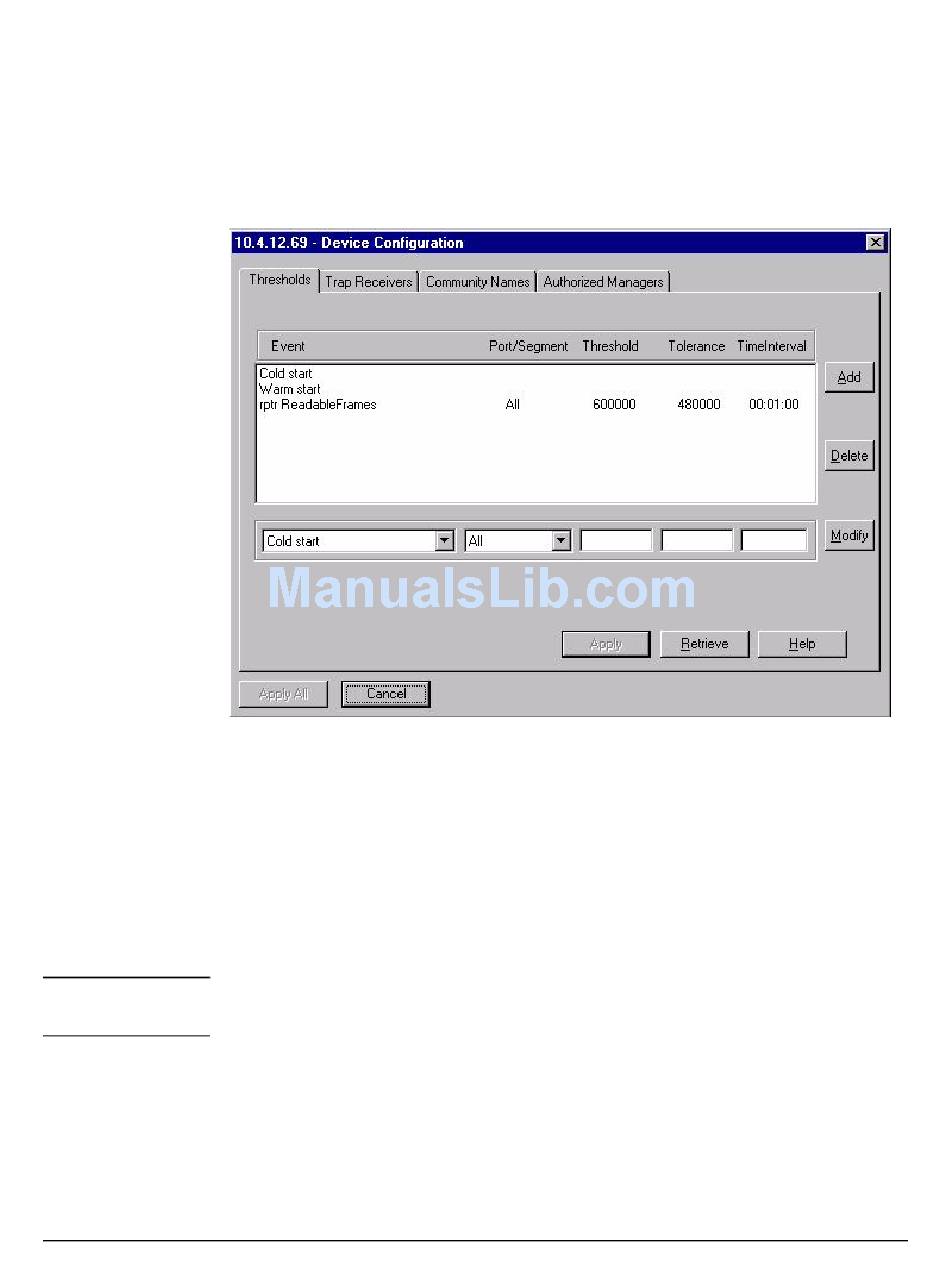

Figure 6-3. Thresholds Dialog Box

Device Topology

The Topology view displays a hierarchical representation of your network
device connections. If HP TopTools is not able to associate a device with a
segment, the device is listed as unmapped.
Your hubs and switches must have the Community Name "public" set to READ
and WRITE in order for your devices to be mapped.
Networking Devices
Device Topology
6-5
