Raster
Raster mode is used for marking or engraving materials. Typical uses would be
reproducing clipart, scanned images, photos, text and graphic images. The Raster
Speed and Raster Power boxes will be enabled when you have selected Raster
under Job Type. Set the Speed and Power boxes to the appropriate settings for
the material that you are engraving. For speed and power guidelines, see the
Speed and Power Recommendations section of this manual.
Note – Very thin lines will not raster engrave, and the definition of "thin" varies
depending on the Resolution being used. Most users use a Hairline or 0.003" line
to designate vector lines.
Example: The rectangle below has a line weight of 0.003 inch. It will not raster
engrave at any resolution. If you send just this box to the laser in Raster mode
and try to run the job, the laser will beep once and be finished because the line is
too small to be recognized as an engraving line.
51

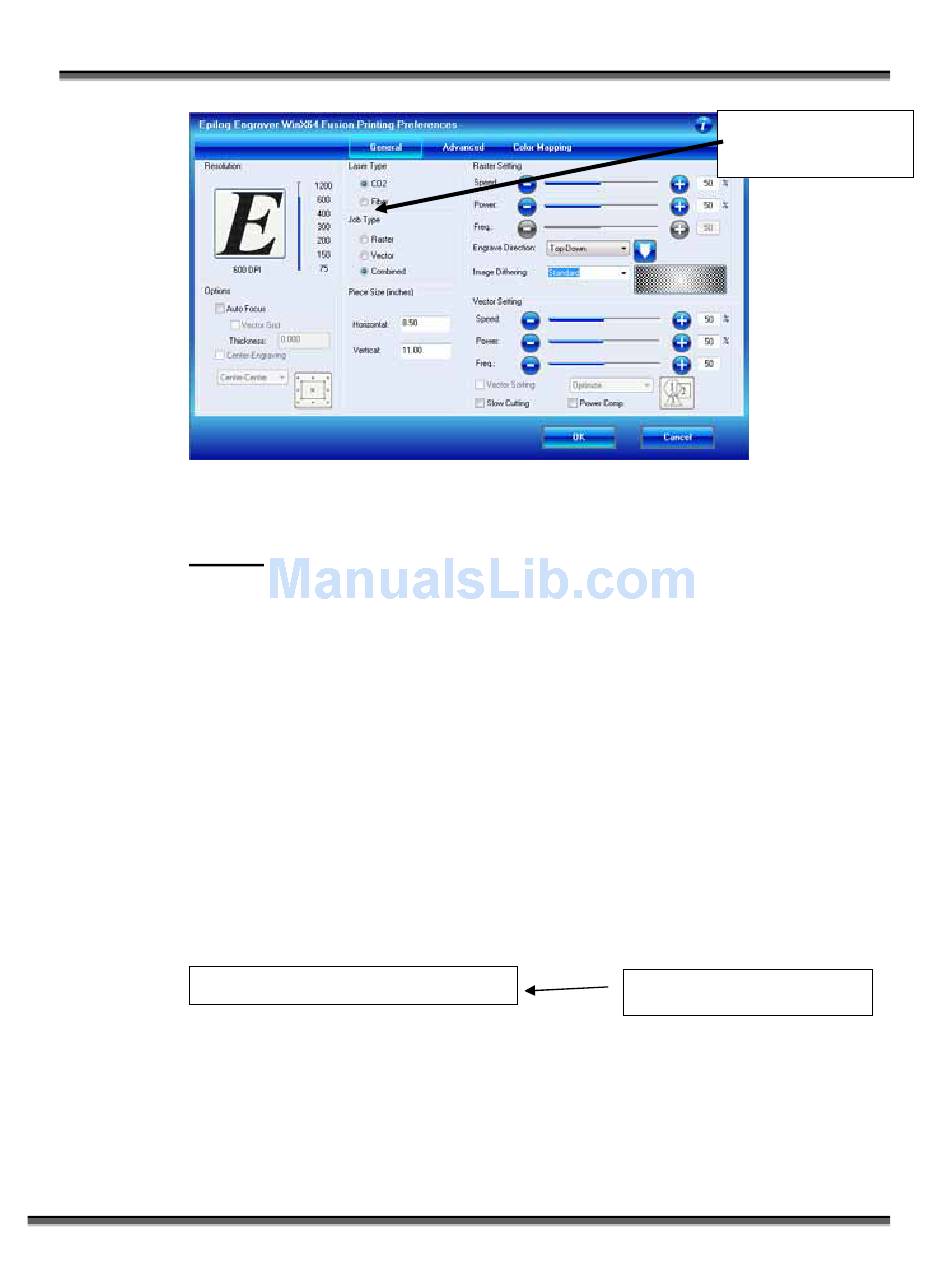

Select the Job Type
here.
Line weight = 0.003 inch.
