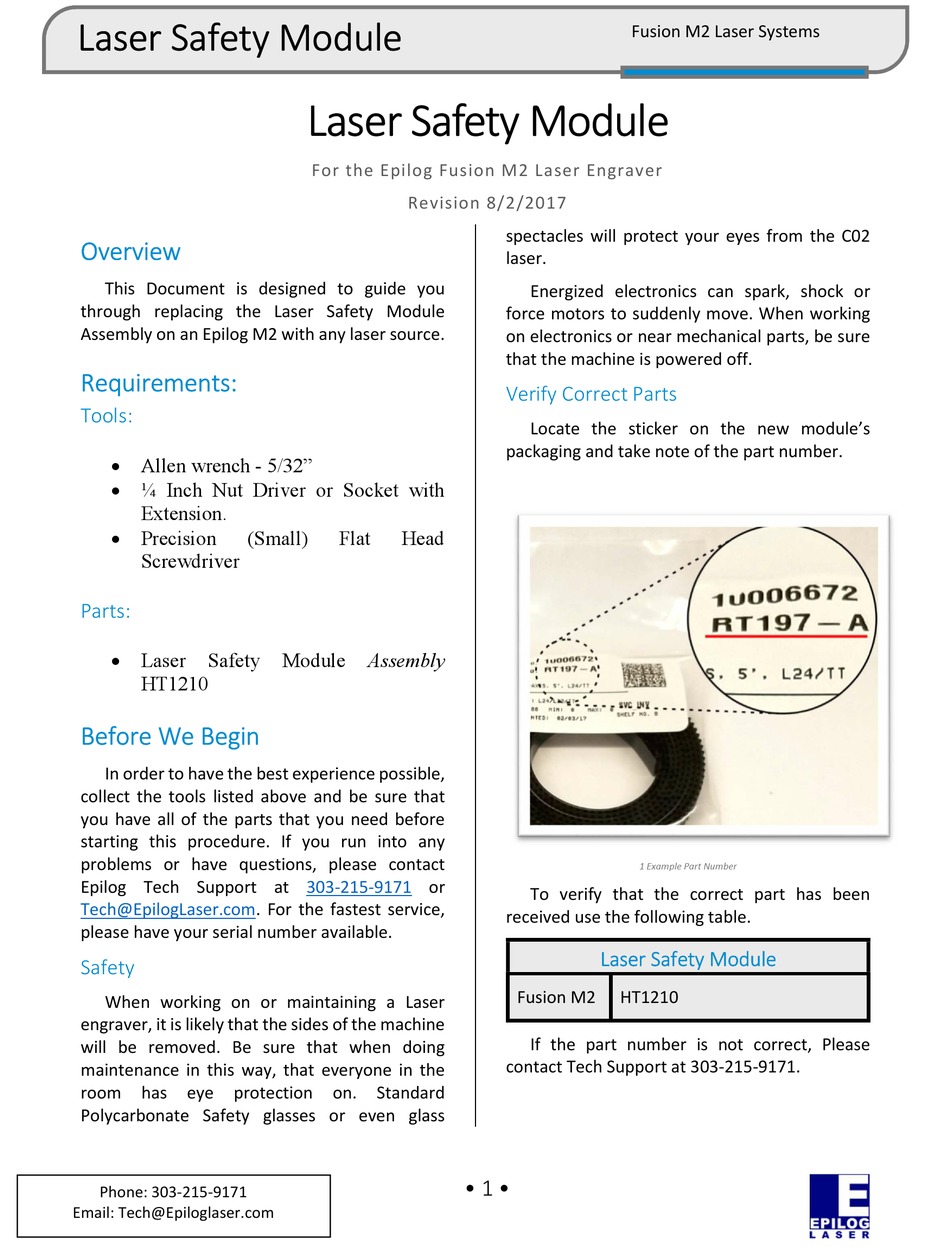

Epilog Fusion M2 Manual

Laser Safety Module
Overview
This Document is designed to guide you
through replacing the Laser Safety Module
Assembly on an Epilog M2 with any laser source.
Requirements:
Tools:
 Allen wrench - 5/32"
 ¼ Inch Nut Driver or Socket with
Extension.
 Precision
(Small)
Screwdriver
Parts:
 Laser
Safety
HT1210
Before We Begin
In order to have the best experience possible,
collect the tools listed above and be sure that
you have all of the parts that you need before
starting this procedure. If you run into any
problems or have questions, please contact
Epilog Tech Support at
Tech@EpilogLaser.com. For the fastest service,
please have your serial number available.
Safety
When working on or maintaining a Laser
engraver, it is likely that the sides of the machine
will be removed. Be sure that when doing
maintenance in this way, that everyone in the
room has eye protection
Polycarbonate Safety glasses or even glass
Phone: 303-215-9171
Email: Tech@Epiloglaser.com
Laser Safety Module
For the Epilog Fusion M2 Laser Engraver
Revision 8/2/2017
Flat Head
Module Assembly
303-215-9171 or
on. Standard
Fusion M2 Laser Systems
spectacles will protect your eyes from the C02
laser.
Energized electronics can spark, shock or
force motors to suddenly move. When working
on electronics or near mechanical parts, be sure
that the machine is powered off.
Verify Correct Parts
Locate the sticker on the new module's
packaging and take note of the part number.
1 Example Part Number
To verify that the correct part has been
received use the following table.
Laser Safety Module
Fusion M2 HT1210
If the part number is not correct, Please
contact Tech Support at 303-215-9171.
