enough of the grid holes, you can use any material (including paper) to cover the
exposed grid. Simply blocking most of the grid holes will be enough to flatten most
sheet stock as long as it is not too severely warped, bent or too rigid.
Installation of the Vector grid
The rulers on the task plate have slots that align and hold the pins mounted to the

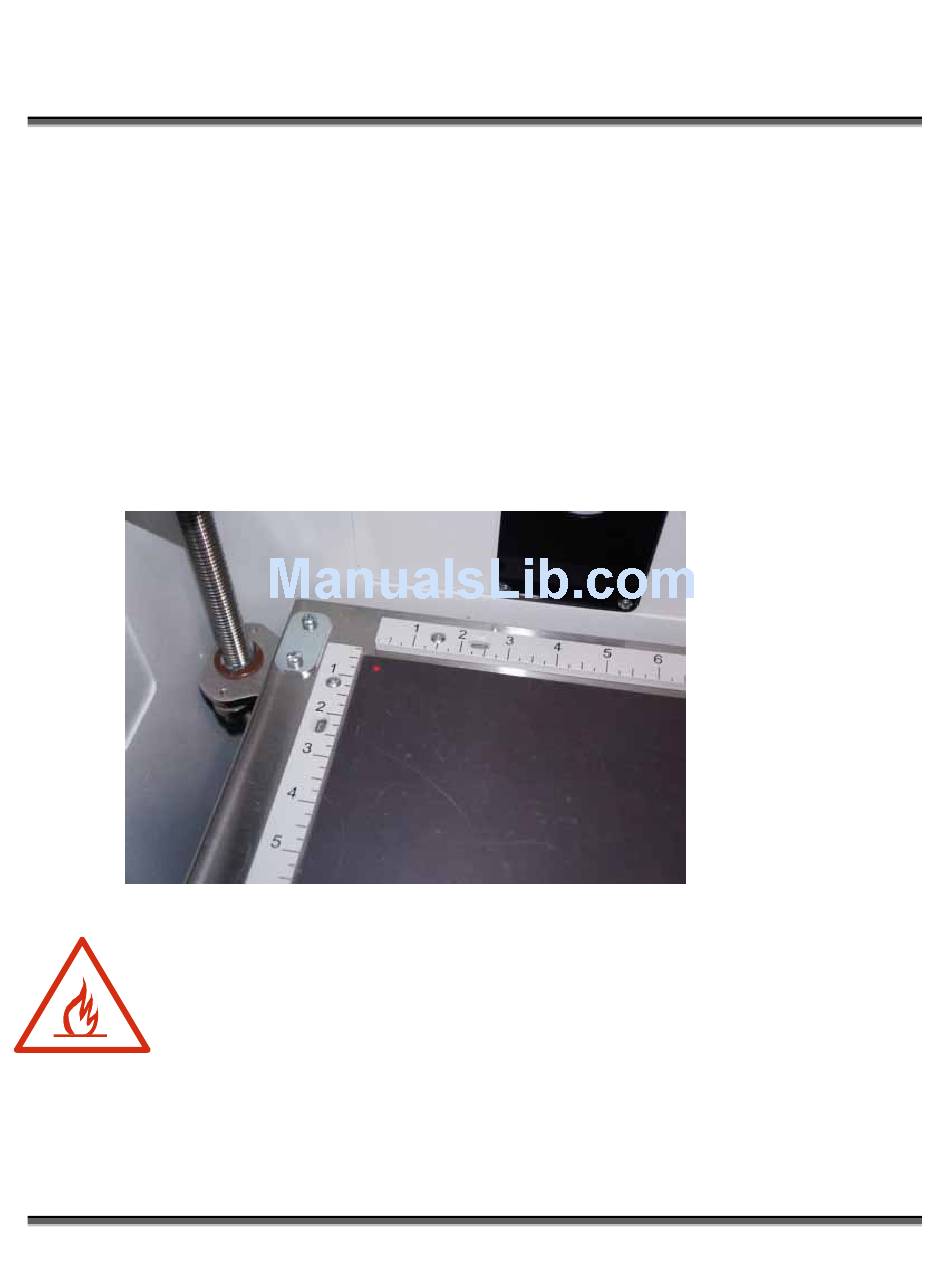

bottom of the vector grid. The photo below shows the slots in the rulers between the
2" and 3" marks. There are four slots on the X-axis and 3 slots on the Y-axis. Simply
align the pins in the bottom of the vector grid to these slots and press the vector grid
firmly into the slots. You should feel a tactile "click" when the vector grid is properly
seated.
Whenever you are vector cutting there is the potential for small pieces to fall through
the vector grid and collect in the bottom of the vector grid. These small pieces
present a very dangerous fire hazard. Remove and dispose of the debris in the vector
grid on a regular basis.
