ASSEMBLY INSTRUCTIONS
5
+
A B
C
6
AC
AA

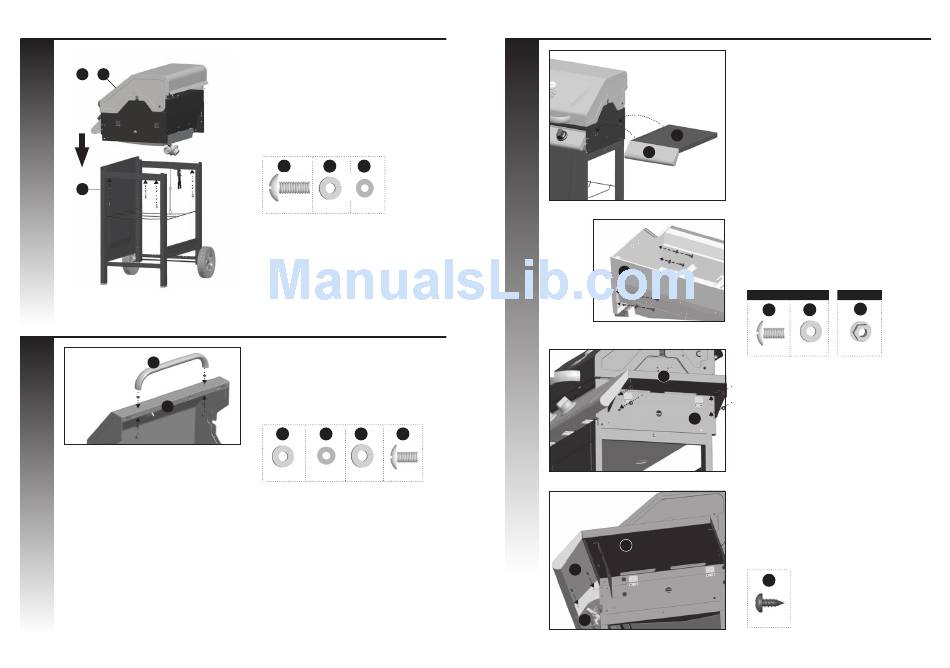

Note: Stand cart assembly upright. TWO
PEOPLE required for this step. Ensure that
the regulator hose (Propane models only) is
hanging outside of cart.
Position the lid and burner box assembly (A&B),
onto the cart assembly (C), and assemble.
YOU WILL NEED:
11 9 5
X 4 X 4 X 4
Assemble the top lid handle (AC) to the top lid
assembly (AA).
YOU WILL NEED:
6 5 9 1
X 2 X 2 X 2 X 2
8
ASSEMBLY INSTRUCTIONS
7
EA
EB
Front, right side view
BA
A1
Back view
EA
B2
View, under right side shelf
EA
EB
CA
View, under right side shelf
RIGHT SIDE SHELF ASSEMBLY
a. Insert the right side shelf assembly hooks into
the grooves located on the right side of the
burner box assembly (BA).
b. Affix the right side shelf table (EA) to the
burner box assembly (BA).
A1
YOU WILL NEED:
A1 B2
3
1 6
X 4
X 4 X 4
B2
BA
c. Affix the right side shelf fascia (EB) to the
control panel (CA).
Securely tighten all hardware.
YOU WILL NEED:
4
X 2
