Master Chef T440 Assembly Manual page 3

PARTS LIST (PROPANE) FOR 85-3004-2 (G45118)
KEY # QUANTITY DESCRIPTION
AA 1 Top Lid assembly
AB 1 Thermometer and Bezel
AC 1 Top Lid Handle
AD 2 Lid Bumbers- Back
AE 2 Lid Bumbers- Front
AF 2 Screws for Lid
BA 1 Burner Box Assembly
BB 3 Burner
BC 1 Electrode Set, main burners
BD 2 Burner brace assembly
BE 3 Flame Tamers
BF 3 Cooking Grates
BG 1 Warming Rack
CA 1 Control Panel
CB 1 Manifold Assembly
CC 1 Regulator
CD 3 Bezel, Control Knob
CE 3 Control Knob
CF1 1 Electronic Igntion Assembly
CF2 1 Electronic Ignition Button
CG 1 Grease Cup Hook
CH 1 Grease Cup
CI 1 Heat Shield
DA 1 Cart side panel, right
DB 1 Cart side panel, left
DC 1 Back brace
DD 1 Front panel
DE 2 End Caps
DF 1 Match Holder
DG 2 Wheel
DH 1 Wheel Axle
EA 1 Side Shelf table (right)
EB 1 Side shelf fascia(right)
EC 1 Side Shelf table (left)
ED 1 Side shelf fasica (left)
EE 1 Tank Exclusion
EF 1 Tank retainer clip
F1 1 Hardware Pack
F2 1 Assembly Instructions
F3 1 Safe Use and Care Manual
PART NO.
G451-3000-01
G451-0008-01
G413-0001-01
G303-0038-01
G430-00B8-01
G430-0024-01
G451-0200-01
G432-B600-01
G501-0010-01
G432-0078-01
G430-0005-01
G451-1200-01
G430-0003-01
G451-J001-01
G451-J100-01
G402-0069-01
G430-0027-02
G432-0090-01
G409-0021-A1
G308-0025-01
G305-0043-01
G430-0033-02
G451-6201-01
G451-0500-02
G451-0400-02
G431-0031-02
G451-0005-02
G431-0004-01
G401-0079-01
G210-0018-02
G430-0007-01
G430-1500-A1
G451-0003-01S
G430-2100-02
G451-0007-01
G430-5402-01
G306-0020-01
G451-B004-01
G451-M018-01
G207-M015-02
2

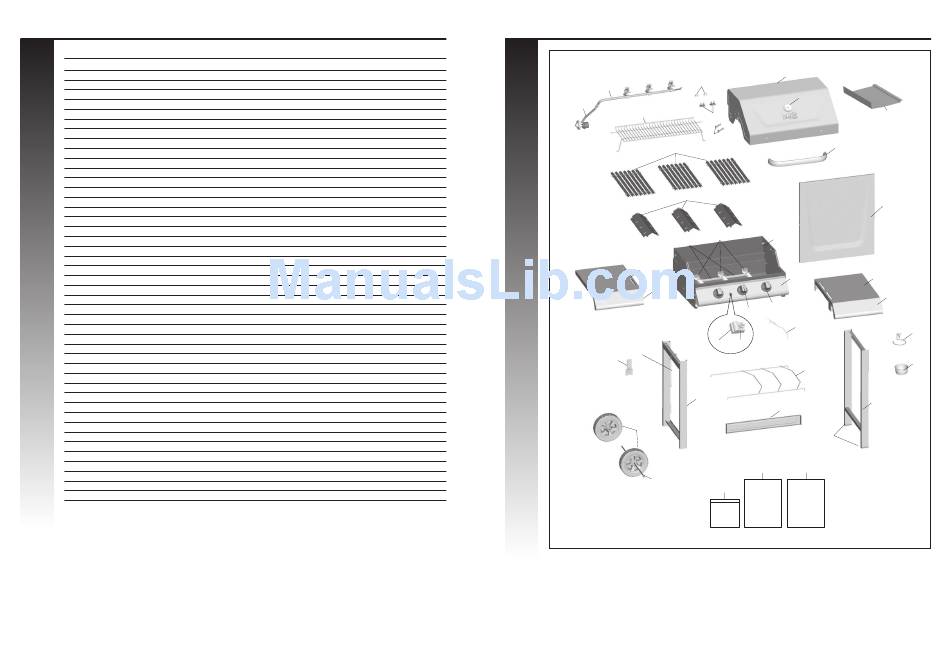

EXPLODED DIAGRAM (PROPANE) FOR 85-3004-2 (G45118)
CB
CC
BG
BF
BD
EC
ED
DF
EF
DG
DH
AA
AD
AB
AE
AF
AC
BE
BA
BB
CA
CD
CE
BC
CF1 CF2
EE
DB
DC
DE
F2 F3
ASSEMBLY SAFETY
F1
MANUAL AND CARE
MANUAL
HARDWARE
PACK
3
CI
DD
EA
EB
CG
CH
DA
