Master Chef T440 Assembly Manual page 4

PARTS LIST (NATURAL GAS) FOR 85-3005-0 (G45119)
KEY # QUANTITY DESCRIPTION
AA 1 Top lid assembly
AB 1 Thermometer
AC 1 Top lid handle
AD 2 Lid bumbers- back
AE 2 Lid bumbers- front
AF 2 Screws for lid
BA 1 Burner box assembly
BB 3 Burner
BC 1 Electrode set, main burners
BD 2 Burner brace assembly
BE 3 Flame tamers
BF 3 Cooking grates
BG 1 Warming rack
CA 1 Control panel
CB 1 Manifold assembly
CC 1 Natural gas hose
CD 3 Bezel, control knob
CE 3 Control knob
CF1 1 Electronic igntion assembly
CF2 1 Electronic ignition button
CG 1 Grease cup hook
CH 1 Grease cup
CI 1 Heat Shield
DA 1 Cart side panel, right
DB 1 Cart side panel, left
DC 1 Back brace
DD 1 Front panel
DE 2 End caps
DF 1 Match holder
DG 2 Wheel
DH 1 Wheel axle
EA 1 Side shelf table (right)
EB 1 Side shelf fascia(right)
EC 1 Side shelf table (left)
ED 1 Side shelf fasica (left)
F1 1 Hardware pack
F2 1 Assembly instructions
F3 1 Safe Use and Care Manual
PART NO.
G451-3000-01
G451-0008-01
G413-0001-01
G303-0038-01
G430-00B8-01
G430-0024-01
G451-0200-01
G432-B600-01
G501-0010-01
G432-0078-01
G430-0005-01
G451-1200-01
G430-0003-01
G451-J001-01
G451-J400-01
G501-0099-01
G430-0027-02
G432-0090-01
G409-0021-A1
G308-0025-01
G305-0043-01
G430-0033-02
G451-6201-01
G451-0500-02
G430-1000-02
G431-0031-02
G451-0005-02
G431-0004-01
G401-0079-01
G210-0018-02
G430-0007-01
G430-1500-A1
G451-0003-01S
G430-2100-02
G451-0007-01
G451-B004-01
G451-M018-01
G207-M015-02
4

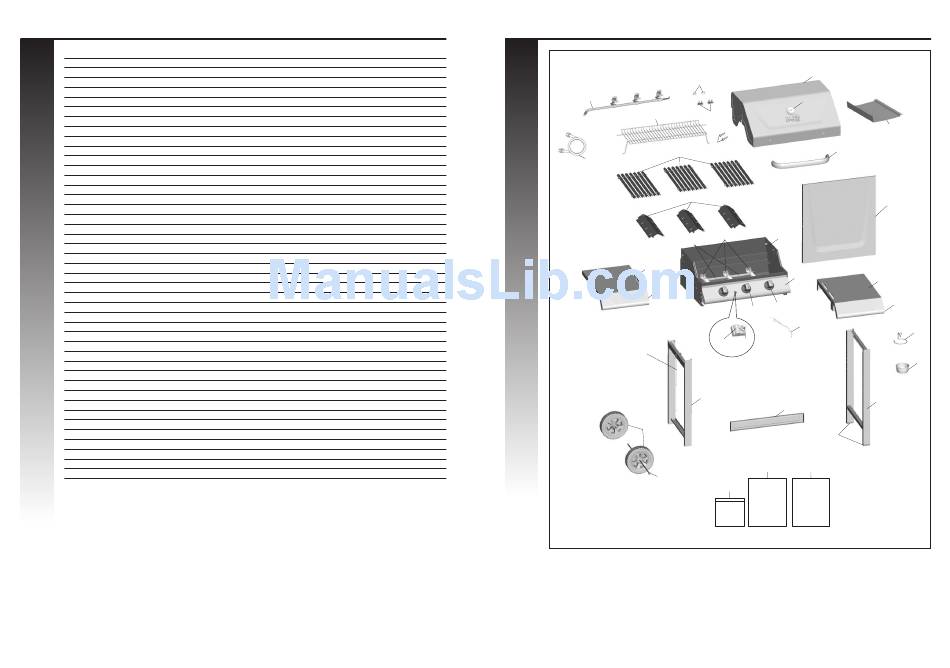

EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3005-0 (G45119)
CB
BG
BF
CC
EC
ED
DF
DG
DH
AA
AD
AB
AE
AF
AC
BE
BA
BB
BD
CA
CD
CE
BC
CF1 CF2
DB
DC
DE
F2 F3
ASSEMBLY SAFETY
F1
MANUAL AND CARE
MANUAL
HARDWARE
PACK
5
CI
DD
EA
EB
CG
CH
DA
